ZPL15S0500WS-0SF

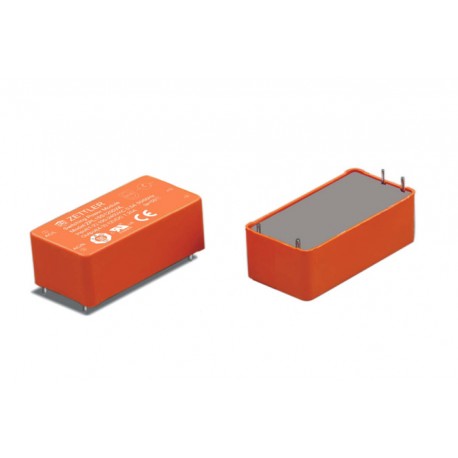

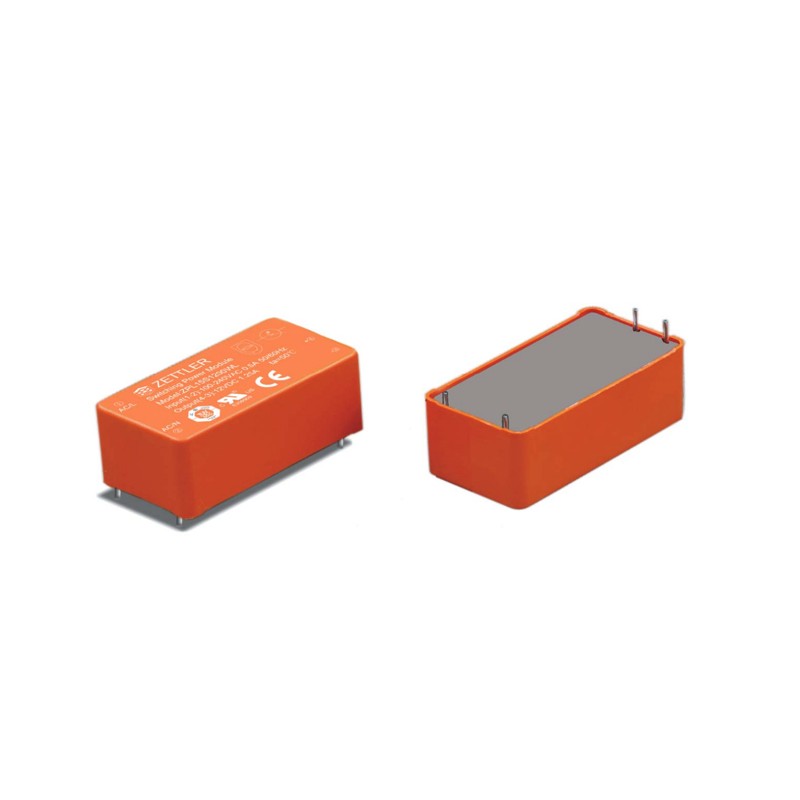

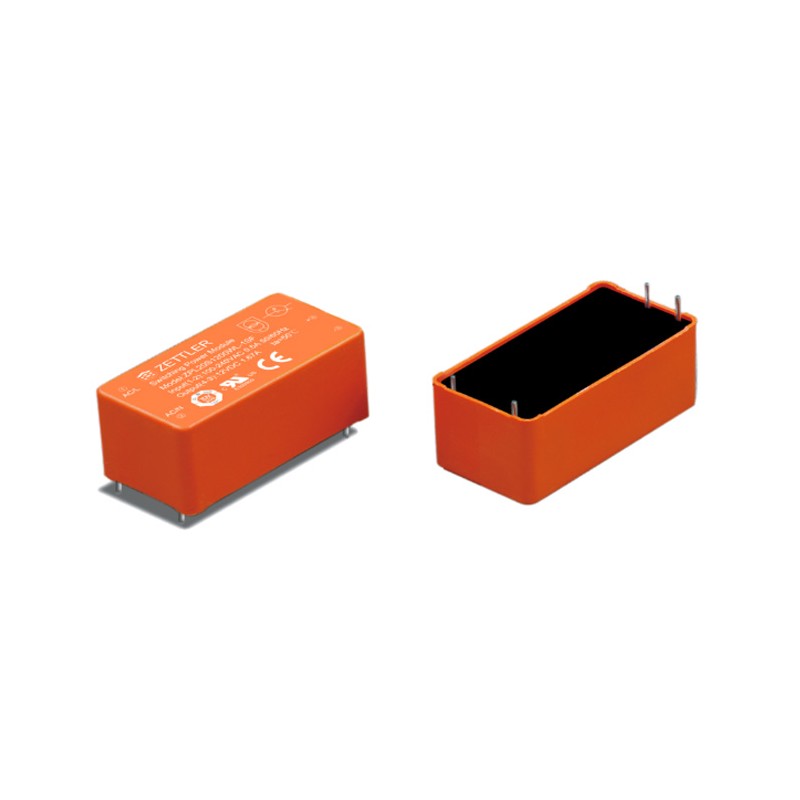

Zettler AC/DC converter series ZPL15S-WL and ZPL20S-WL

Switching power supplies in a plastic housing (UL94V-0) with 15 resp. 20W, a low no-load power, a compact size and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly design and comply with EN60335-1, EN62368-1, EN61558-2-16, EN61000-3-2, EN61000-3-3, EN61000-4-5, EN55035 as well as EN55032 class B. We offer various types of this Zettler series.

  • single output
  • output: 15 to 20W
  • input voltage: 90 to 264V AC (47 to 63Hz), 100 to 370V DC
  • output voltage tolerance: ±3%
  • input inrush current: 40A
  • leakage current: <0,3mA
  • operating temperature: -25 to +70°C
  • weight: 65g
ZPL15S0500WS-0SF, Zettler AC/DC converters, 15 and 20W, PCB, ZPL15S-WL and ZPL20S-WL series

ZPL15S0500WS-0SF

246444 ZPL15S0500WS-0SF ZPL15S0500WS-0SF Zettler AC/DC converter series ZPL15S-WL and ZPL20S-WL. Switching power supplies in a plastic housing (UL94V-0) with 15 resp. 20W, a low no-load power, a compact size and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly design and comply with EN60335-1, EN62368-1, EN61558-2-16, EN61000-3-2, EN61000-3-3, EN61000-4-5, EN55035 as well as EN55032 class B. We offer various types of this Zettler series. single output output: 15 to 20W input voltage: 90 to 264V AC (47 to 63Hz), 100 to 370V DC output voltage tolerance: ±3% input inrush current: 40A leakage current: &lt;0,3mA operating temperature: -25 to +70°C weight: 65g

Specifications

manufacturer
Manufacturer's name ZPL15S0500WS-0SF
Output voltage [V] 5
Output current [mA] 3000
Efficiency [%] 78
Output power [W] 15
Ripple [mV] max. 200

Unit price

8,19 €

Stock: 0
Further delivery:
CW 17/2025
