ZP03S2400WE

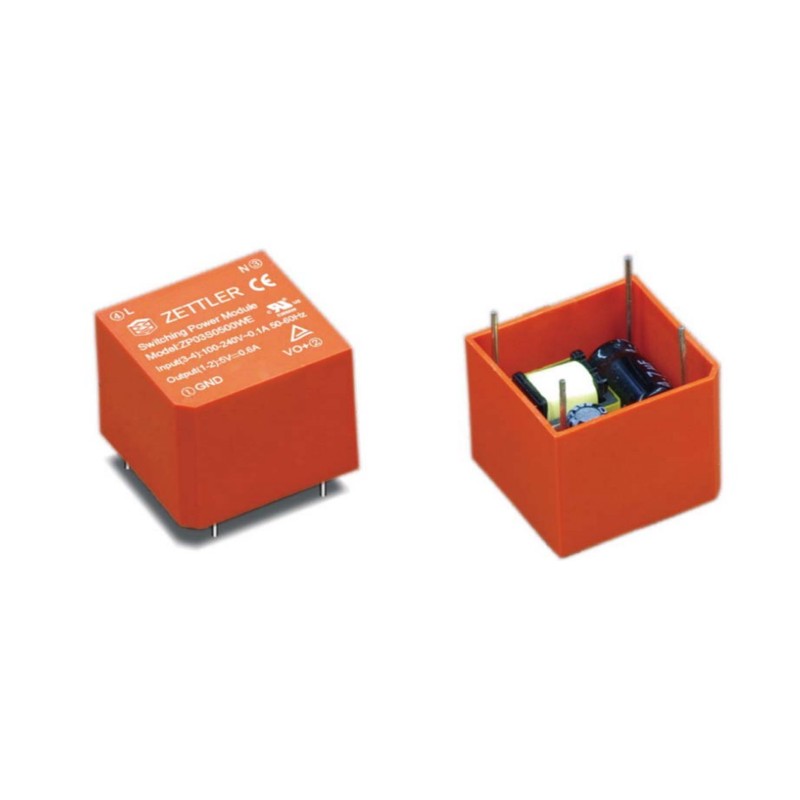

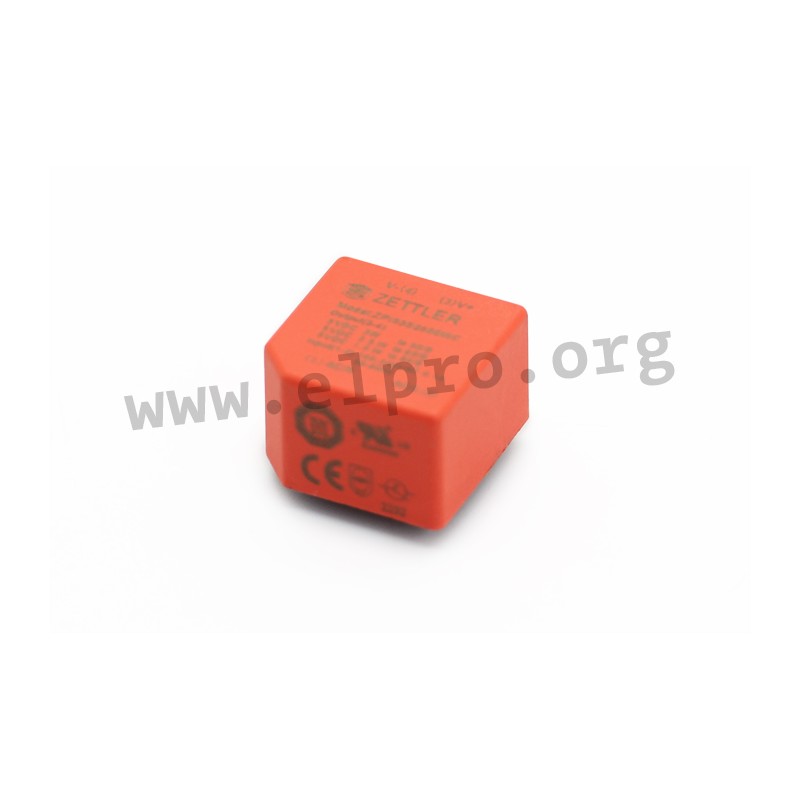

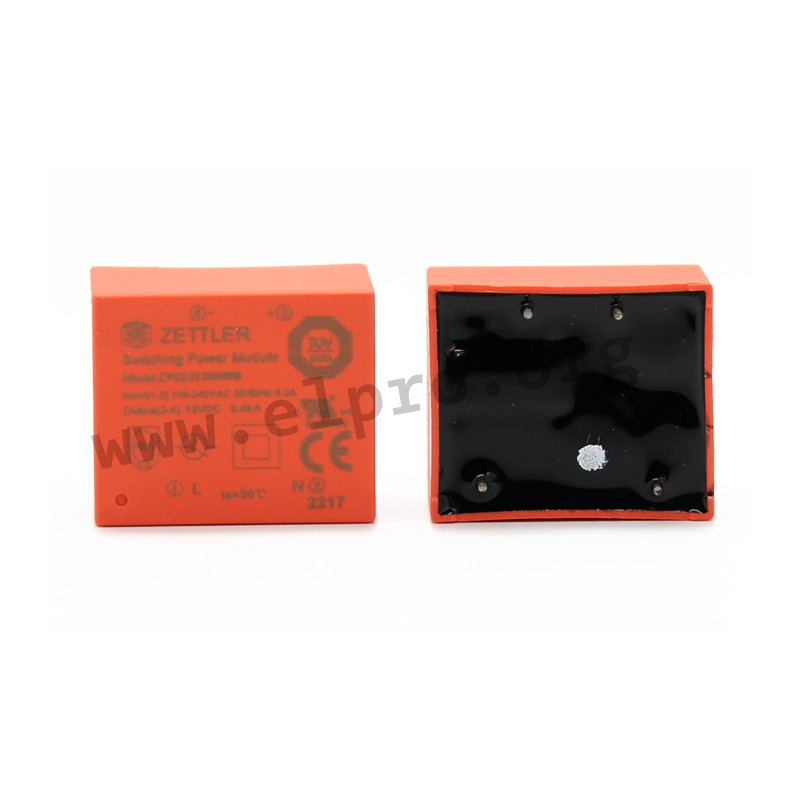

Zettler AC/DC converter series ZPI03S/ZP03S/ZP05S/ZP10S

Switching power supplies in an enclosed plastic housing (UL94V-0) with 3 to 10W, a compact size, a low no-load power and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly design and comply with EN62368-1, EN60950-1, EN60335-1, EN61558-2-16, EN55032 class B, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer various types of this Zettler series.

  • single output
  • output: 3 to 10W
  • input voltage ZPI03S/ZP05S: 90 to 264V AC (47 to 63Hz), 120 to 370V DC
  • input voltage ZP03S/ZP10S: 85 to 265V AC (47 to 63Hz), 100 to 370V DC
  • leakage current: <0,1mA
  • overload protection: 120% IO

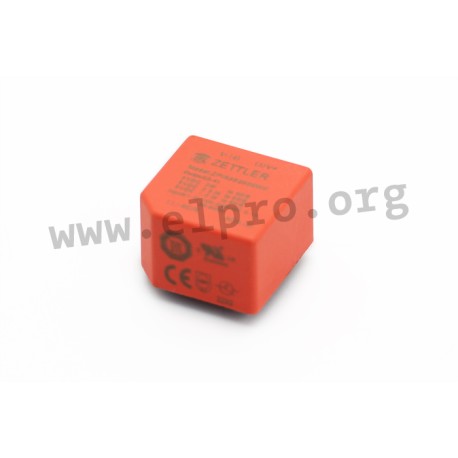

ZPI03S0300WC, Zettler AC/DC converters, 3 to 10W, PCB, ZPI03S/ZP03S/ZP05S/ZP10S series

ZP03S2400WE

241934 ZP03S2400WE ZP03S2400WE Zettler AC/DC converter series ZPI03S/ZP03S/ZP05S/ZP10S. Switching power supplies in an enclosed plastic housing (UL94V-0) with 3 to 10W, a compact size, a low no-load power and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly design and comply with EN62368-1, EN60950-1, EN60335-1, EN61558-2-16, EN55032 class B, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer various types of this Zettler series. single output output: 3 to 10W input voltage ZPI03S/ZP05S: 90 to 264V AC (47 to 63Hz), 120 to 370V DC input voltage ZP03S/ZP10S: 85 to 265V AC (47 to 63Hz), 100 to 370V DC leakage current: &lt;0,1mA overload protection: 120% IO

Specifications

manufacturer
Manufacturer's name ZP03S2400WE
Output voltage [V] 24
Output current [mA] 210
Output power [W] 5
Data Sheet

Unit price

3,39 €

Stock: 51
Further delivery:
CW 17/2025
