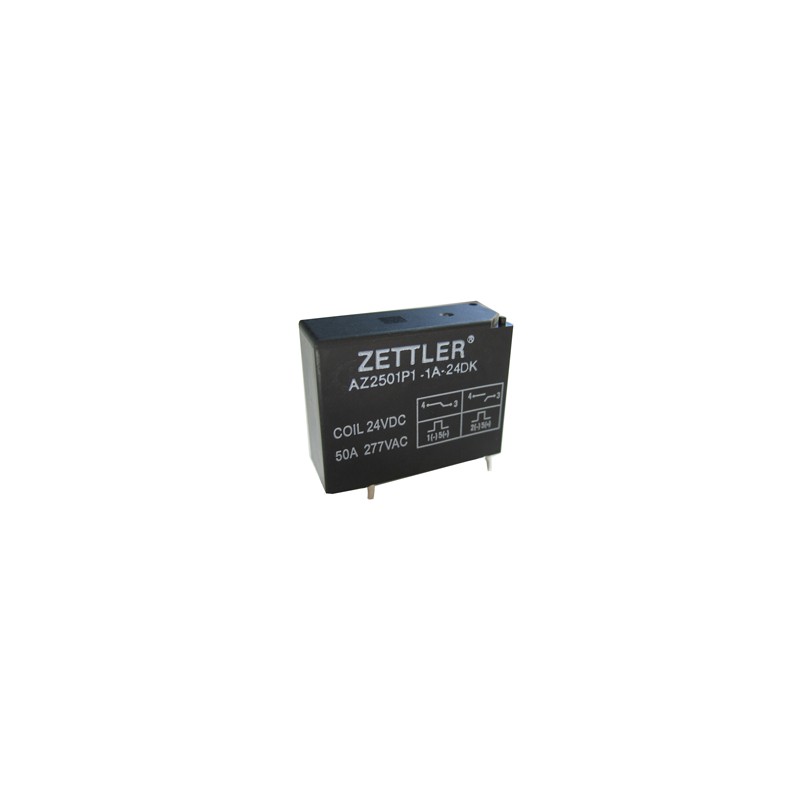

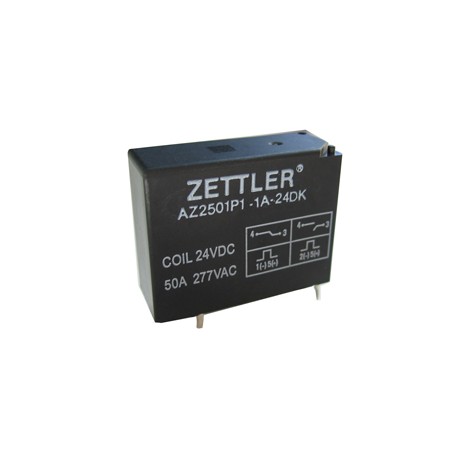

AZ2501P2-1A-24DE

Zettler PCB relay series AZ2501P

  • with a switching power of up to 13850 VA
  • contact form: 1 normally open (AZ2501P2-1A-12DE/24DE) or 1 changeover contact (AZ2501P2-1U-12DE/24DE)
  • contact material: AgSnO2
  • switching current: 50A
  • with a lifetime of up to 1 million operations
AZ2501P2-1A-24DE, Zettler PCB relays, 50A, 1 changeover oder 1 normally open contact, AZ2501P series

AZ2501P2-1A-24DE

156228 AZ2501P2-1A-24DE AZ2501P2-1A-24DE Zettler PCB relay series AZ2501P. with a switching power of up to 13850 VA contact form: 1 normally open (AZ2501P2-1A-12DE/24DE) or 1 changeover contact (AZ2501P2-1U-12DE/24DE) contact material: AgSnO2 switching current: 50A with a lifetime of up to 1 million operations

Specifications

manufacturer
Manufacturer's name AZ2501P2-1A-24DE
Min. operating voltage [V] 19,2
Coil resistance [Ω] 192
Max. operating voltage [V] 31,2
Switching current [A] 50
Nominal capacity [mW] 300
Data Sheet

Unit price

4,79 €

Stock: 0
Further delivery:
CW 21/2025

Minimum order quantity 800 units or
multiples of 800.
