HP01S0800WI-X

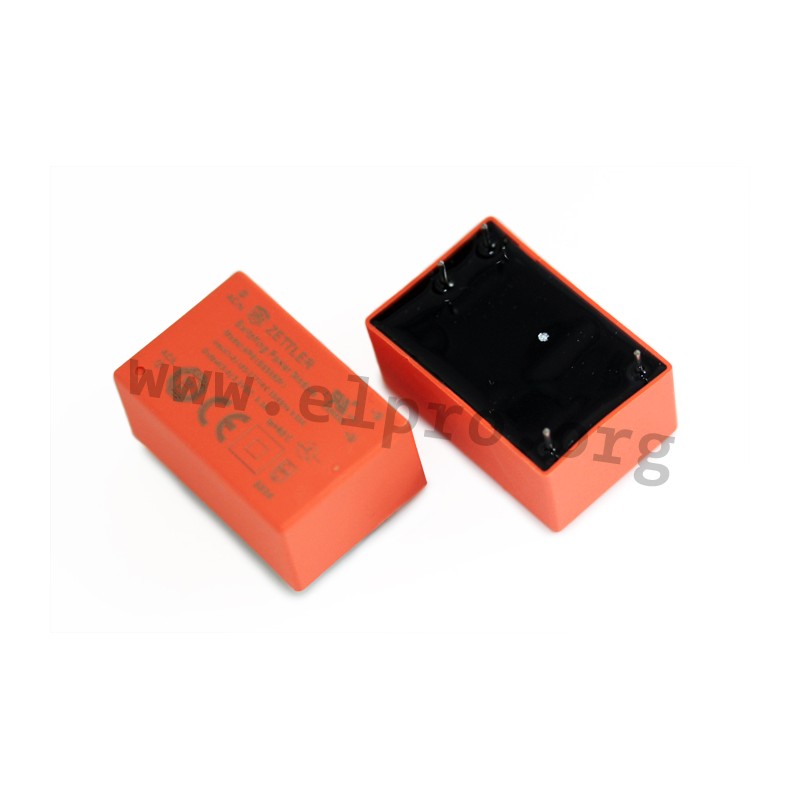

Zettler AC/DC converter series HP01S, HP01S-X, HP02S, HP03S, and HPI10S

AC/DC converters in a compact plastic housing (UL94V-0) with 1 to 10W, protection class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have an environment-friendly design and comply with EN62368-1, EN55035, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the various types of this Zettler series.

  • single output
  • output: 1 to 10W
  • input voltage: 85 to 305V AC (47 to 63Hz), 100 to 430V DC
  • output voltage tolerance: ±3%
  • leakage current: <0,25mA
  • overload protection: ≥120% IO
  • withstand voltage I/P-O/P: 3600V AC
  • operating temperature: -25 to +85°C
  • weight: 20g

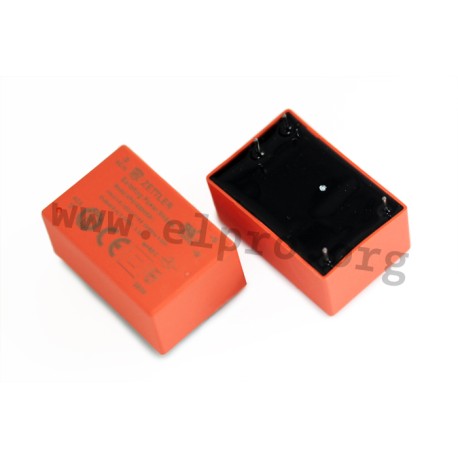

HP01S0800WI-X, Zettler AC/DC converters, 1 to 10W, PCB, HP01S, HP01S-X, HP02S, HP03S, HPI10S series

HP01S0800WI-X

246399 HP01S0800WI-X HP01S0800WI-X Zettler AC/DC converter series HP01S, HP01S-X, HP02S, HP03S, and HPI10S. AC/DC converters in a compact plastic housing (UL94V-0) with 1 to 10W, protection class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have an environment-friendly design and comply with EN62368-1, EN55035, EN61558-2-16, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the various types of this Zettler series. single output output: 1 to 10W input voltage: 85 to 305V AC (47 to 63Hz), 100 to 430V DC output voltage tolerance: ±3% leakage current: &lt;0,25mA overload protection: ≥120% IO withstand voltage I/P-O/P: 3600V AC operating temperature: -25 to +85°C weight: 20g

Specifications

manufacturer
Manufacturer's name HP01S0800WI-X
Output voltage [V] 8
Output current [mA] 125
Efficiency [%] 63
Max. starting current [A] 25
Output power [W] 1
Ripple [mVp-p] 240
Data Sheet

Unit price

4,29 €

Stock: 0
Further delivery:
CW 16/2025
