BV302S09012

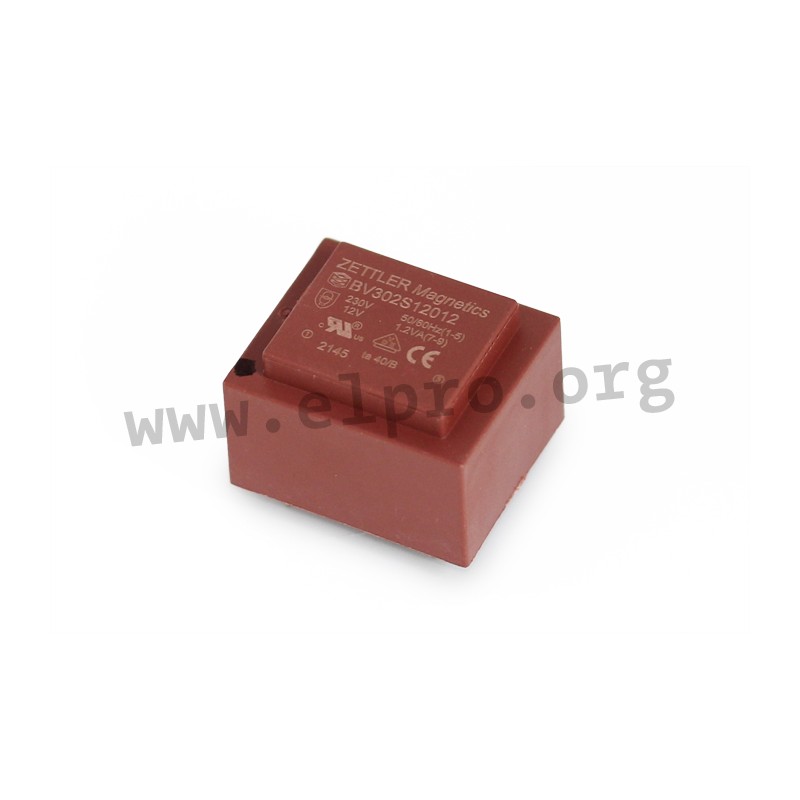

Zettler PCB transformers

Transformers with an EI30/10,5 core and 1,2VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06012, BV302S09012, BV302S12012, BV302S15012, BV302S18012 and BV302S24012.

  • core: EI30/10,5
  • output: 1,2VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

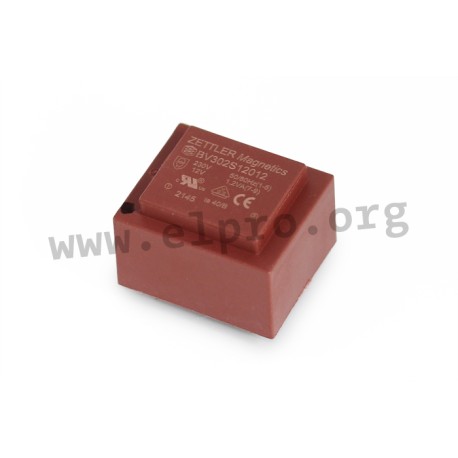

608172, Zettler PCB transformers, 1,2VA, EI30/10,5

BV302S09012

240111 BV302S09012 BV302S09012 Zettler PCB transformers. Transformers with an EI30/10,5 core and 1,2VA. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06012, BV302S09012, BV302S12012, BV302S15012, BV302S18012 and BV302S24012. core: EI30/10,5 output: 1,2VA input voltage: 230V (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S09012
Secondary current [mA] 133
Secondary voltage [V] 9
Data Sheet

Unit price

1,40 €

Stock: 225
Further delivery:
CW 13/2025
