BV202S12005

Zettler PCB transformers

Transformers with an EE20/10,5 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and are suitable for an operating temperature of up to +70°C. We offer the following types of zjis Zettler series: BV202S06005, BV202S09005, BV202S12005, BV202S15005, BV202S18005 and BV202S24005.

  • core: EE20/10,5
  • output: 0,5VA
  • input voltage: 230V AC (50/60Hz)
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
  • temperature class: Ta 70/B

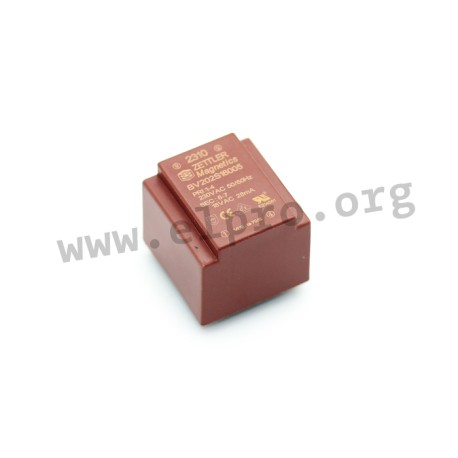

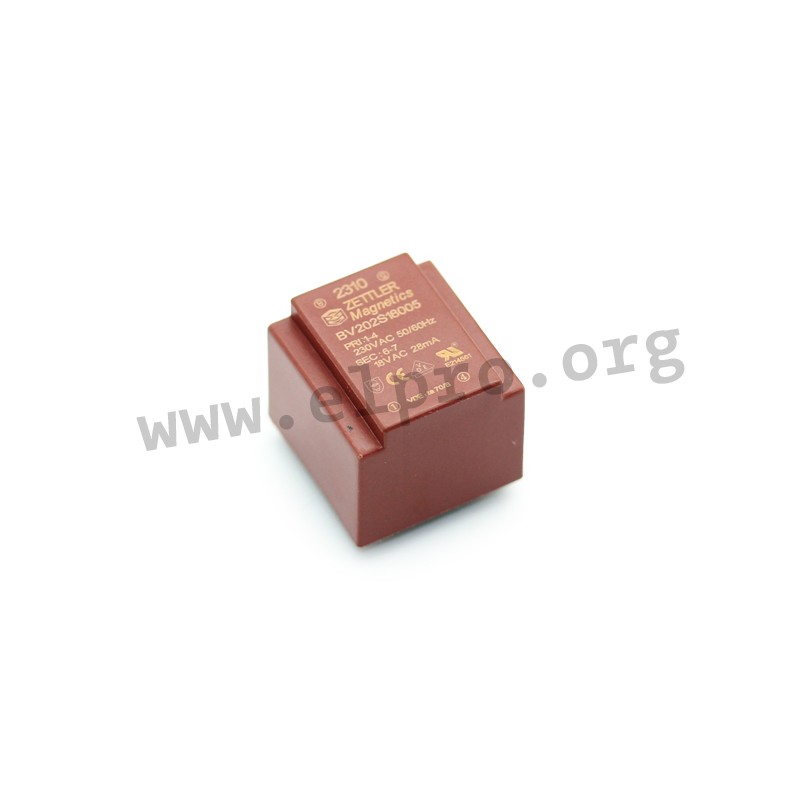

606302, Zettler PCB transformers, 0,5VA, EE20/10,5

BV202S12005

240106 BV202S12005 BV202S12005 Zettler PCB transformers. Transformers with an EE20/10,5 core and 0,5VA. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and are suitable for an operating temperature of up to +70°C. We offer the following types of zjis Zettler series: BV202S06005, BV202S09005, BV202S12005, BV202S15005, BV202S18005 and BV202S24005. core: EE20/10,5 output: 0,5VA input voltage: 230V AC (50/60Hz) dielectric strength: 4,2kV insulation resistance: 100MOhm temperature class: Ta 70/B

Specifications

manufacturer
Manufacturer's name BV202S12005
Secondary current [mA] 40
Secondary voltage [V] 12,5
Data Sheet

Unit price

1,51 €

Stock: 72
Further delivery:
CW 16/2025
