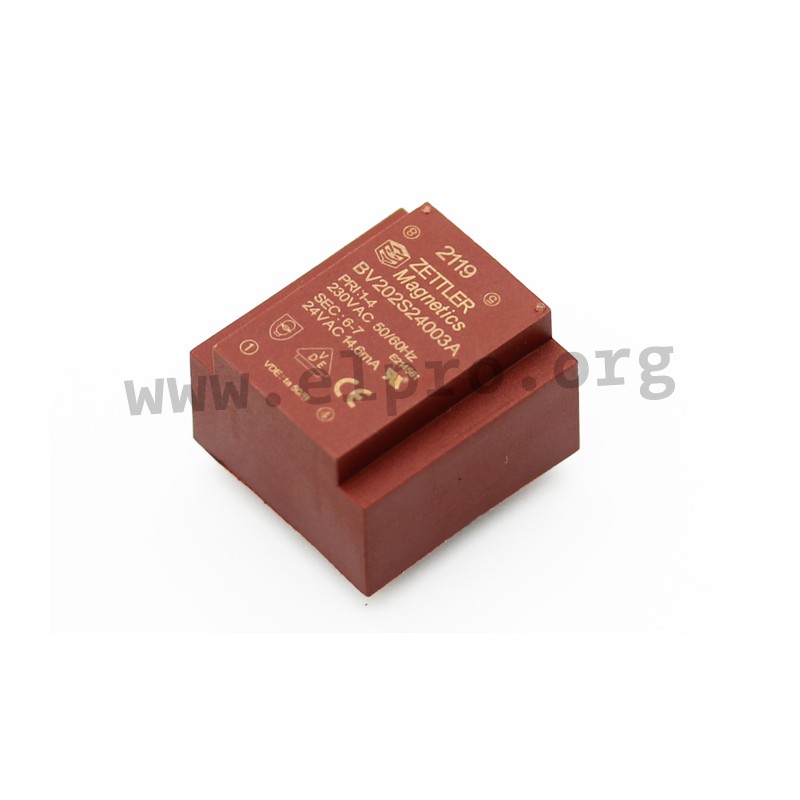

BV202S06003A

Zettler PCB transformers

Short circuit proof transformers with 0,35VA and an EE20/6,5 core. These devices are suitable for PCB mounting and comply with temperature resistance class Ta 50/B. They have a dielectric strength of 4,2kV and are suitable for an ambient temperature of up to 50°C. We offer the following types of this Zettler series: BV202S06003A, BV202S09003A, BV202S12003A, BV202S15003A, BV202S18003A and BV202S24003A.

  • core: EE20/6,5
  • output: 0,35VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

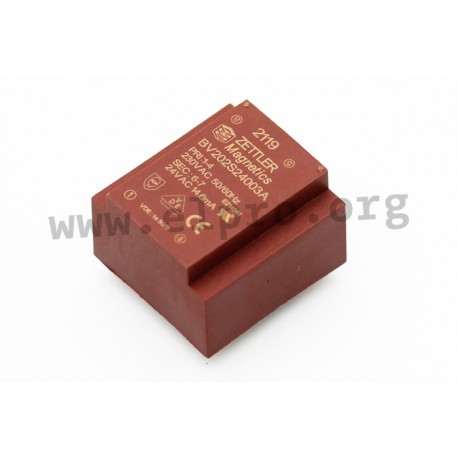

BV202S06003A, Zettler PCB transformers, 0,35VA, EE 20/6,2

BV202S06003A

237869 BV202S06003A BV202S06003A Zettler PCB transformers. Short circuit proof transformers with 0,35VA and an EE20/6,5 core. These devices are suitable for PCB mounting and comply with temperature resistance class Ta 50/B. They have a dielectric strength of 4,2kV and are suitable for an ambient temperature of up to 50°C. We offer the following types of this Zettler series: BV202S06003A, BV202S09003A, BV202S12003A, BV202S15003A, BV202S18003A and BV202S24003A. core: EE20/6,5 output: 0,35VA input voltage: 230V AC (50/60Hz) temperature class: Ta 50/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV202S06003A
Secondary current [mA] 58
Secondary voltage [V] 6
Data Sheet

Unit price

1,46 €

Stock: 480
Further delivery:
CW 21/2025
