AZSR131-1AE-24D

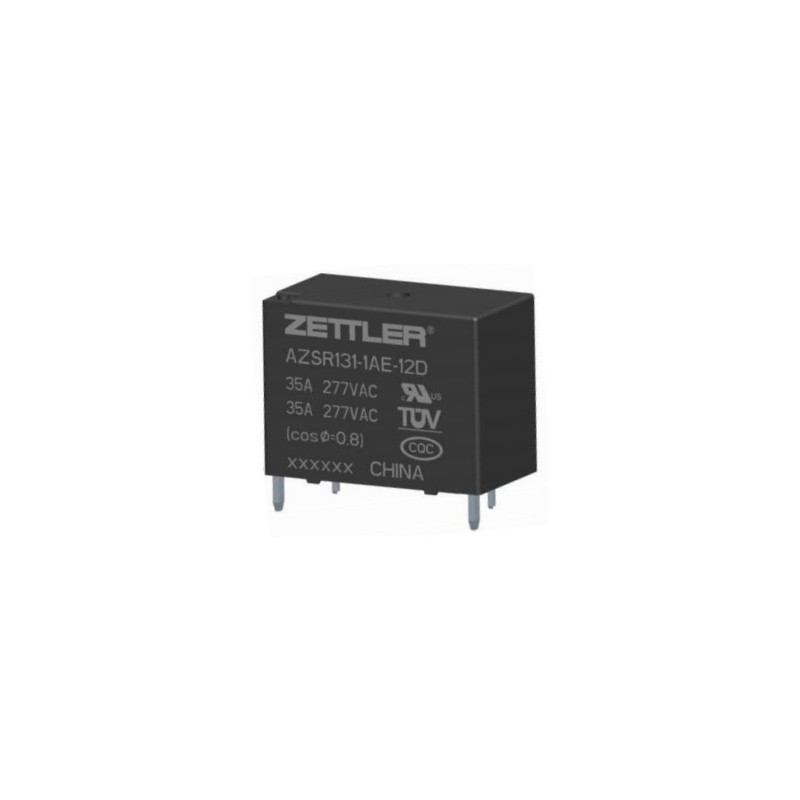

Zettler PCB relay series AZSR131

  • power relays in a flux proof design (RT II)
  • comply with UL class F insulation system (155°C) as well as EN60335-1 (AZSR131_GW)
  • with 1 normally open contact
  • dielectric strength of 4500Vrms between contact and coil
  • contact material: AgSnO2
  • switching current: 35A

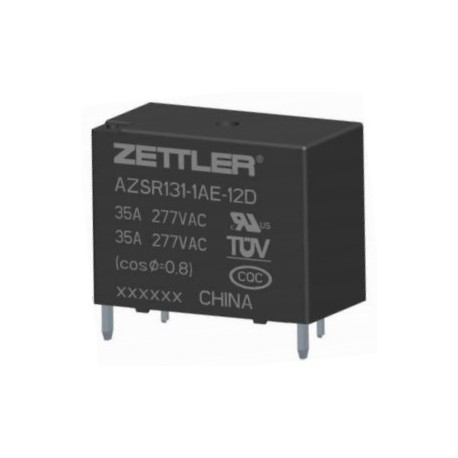

AZSR131-1AE-24D, Zettler PCB relays, 35A, 1 normally open contact, AZSR131 series

AZSR131-1AE-24D

156199 AZSR131-1AE-24D AZSR131-1AE-24D Zettler PCB relay series AZSR131. power relays in a flux proof design (RT II) comply with UL class F insulation system (155°C) as well as EN60335-1 (AZSR131_GW) with 1 normally open contact dielectric strength of 4500Vrms between contact and coil contact material: AgSnO2 switching current: 35A

Specifications

manufacturer
Manufacturer's name AZSR131-1AE-24D
Min. operating voltage [V] 16,8
Coil resistance [Ω] 410
Max. operating voltage [V] 28,8
Switching current [A] 35
Nominal capacity [mW] 1400
Data Sheet

Unit price

1,86 €

Stock: 585
Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
