AZEV140-1AE1BG-5D

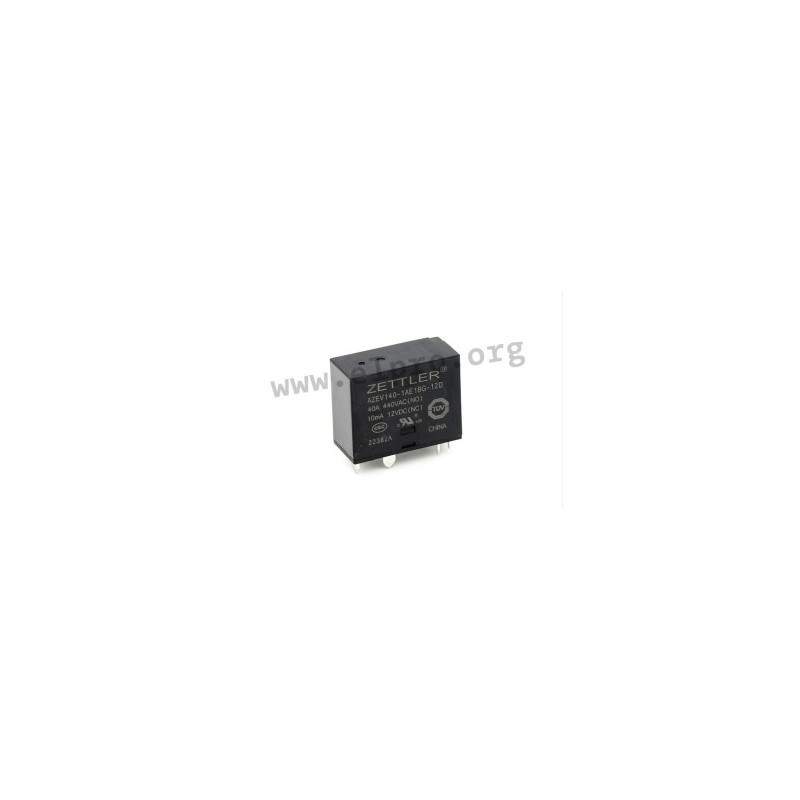

Zettler PCB relay series AZEV140

Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1850A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV140-1AE1BG-5D, AZEV140-1AE1BG-9D, AZEV140-1AE1BG-12D, AZEV140-1AE1BG-24D, and AZEV140-1AE1BG-48D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 50A
  • maximal switching voltage: 440V AC
  • maximal switching power: 22.000VA

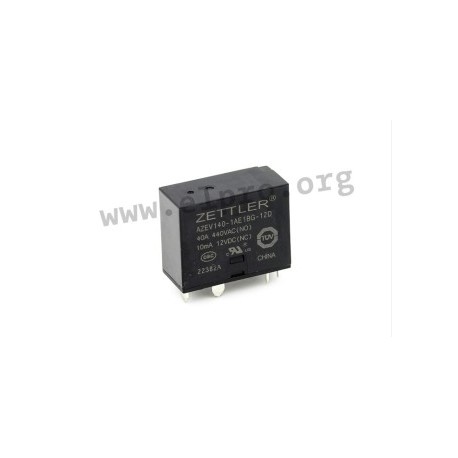

AZEV140-1AE1BG-5D, Zettler PCB relays, 40A, 1 normally closed and 1 normally open contact, for e-mobility, AZEV140 series

AZEV140-1AE1BG-5D

247719 AZEV140-1AE1BG-5D AZEV140-1AE1BG-5D Zettler PCB relay series AZEV140. Relays in a 35x16x28mm housing with 40A, 1 normally open load contact (SPST-NO) and 1 changeover signal contact. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1850A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zettler series: AZEV140-1AE1BG-5D, AZEV140-1AE1BG-9D, AZEV140-1AE1BG-12D, AZEV140-1AE1BG-24D, and AZEV140-1AE1BG-48D. load contact: SPST-NO signal contact: SPST-NC maximal switching current: 50A maximal switching voltage: 440V AC maximal switching power: 22.000VA

Specifications

manufacturer
Manufacturer's name AZEV140-1AE1BG-5D
Nominal voltage [V DC] 5
Coil resistance [Ω] 11,8
Min. operating voltage [V DC] 1,75
Max. operating voltage [V DC] 6
Data Sheet

Unit price

8,59 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 400 units or
multiples of 400.
