AZEV132-1AE1BG-12D

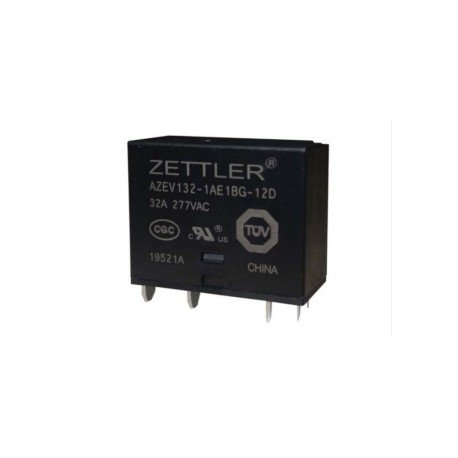

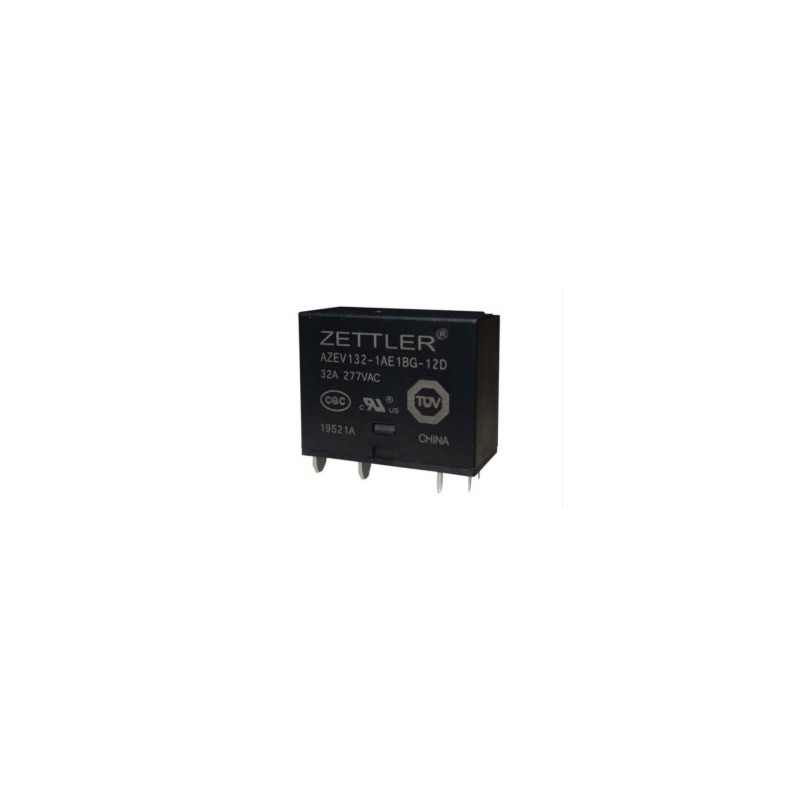

Zettler PCB relay series AZEV132

Relays in a 35x16x27,9mm housing with 32A, 1 normally open load contact, 1 normally closed signal contact and a contact gap of at least 2,25mm. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1500A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zetttler series: AZEV132-1AE1BG-5D, AZEV132-1AE1BG-9D, AZEV132-1AE1BG-12D, AZEV132-1AE1BG-24D, and AZEV132-1AE1BG-48D.

  • load contact: SPST-NO
  • signal contact: SPST-NC
  • maximal switching current: 40A
  • maximal switching voltage: 400V AC
  • maximal switching power: 12.800VA
AZEV132-1AE1BG-12D, Zettler PCB relays, 32A, 1 normally closed and 1 normally open contact, for e-mobility, AZEV132 series

AZEV132-1AE1BG-12D

242748 AZEV132-1AE1BG-12D AZEV132-1AE1BG-12D Zettler PCB relay series AZEV132. Relays in a 35x16x27,9mm housing with 32A, 1 normally open load contact, 1 normally closed signal contact and a contact gap of at least 2,25mm. These devices are suitable for e-mobility applications and can withstand a short-circuit of up to 1500A. They are flux-tight (RTII) and have a dielectric strength of 4000VRMS. We offer the following types of this Zetttler series: AZEV132-1AE1BG-5D, AZEV132-1AE1BG-9D, AZEV132-1AE1BG-12D, AZEV132-1AE1BG-24D, and AZEV132-1AE1BG-48D. load contact: SPST-NO signal contact: SPST-NC maximal switching current: 40A maximal switching voltage: 400V AC maximal switching power: 12.800VA

Specifications

manufacturer
Manufacturer's name AZEV132-1AE1BG-12D
Nominal voltage [V DC] 12
Coil resistance [Ω] 93
Min. operating voltage [V DC] 9
Max. operating voltage [V DC] 14,4
Data Sheet

Unit price

5,39 €

Stock: 590
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
