> Passive elements>Relays>Electromechanical relays>Zettler high current relays, 40A, 1 changeover or 1 normally open contact, AZ9731 series>AZ9731-1C-24DC2

Manufacturers

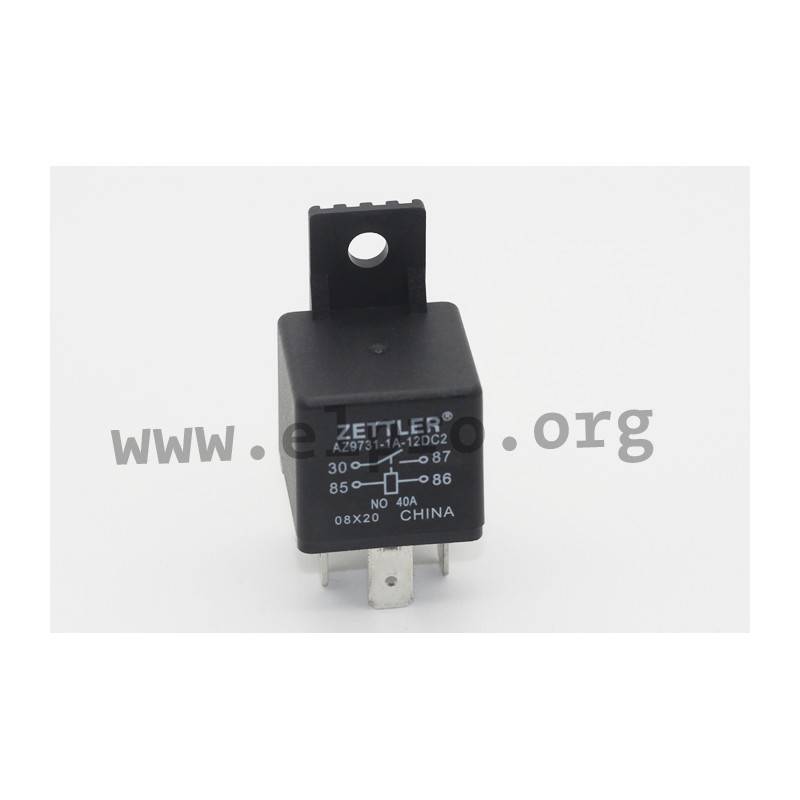

AZ9731-1C-24DC2

Zettler high-current relay series AZ9731

  • contact form: 1 normally open contact (AZ9731-1A-12DC2) or 1 changeover contact (AZ9731-1C-12DC2/24DC2)
  • with quick connect terminals
  • with a high operating temperatur of up to 125°C
  • switching current: 40A
  • contact material: AgSnO2

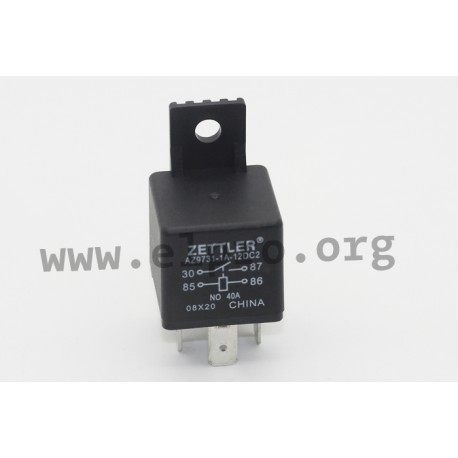

AZ9731-1C-24DC2, Zettler high current relays, 40A, 1 changeover or 1 normally open contact, AZ9731 series

AZ9731-1C-24DC2

156245 AZ9731-1C-24DC2 AZ9731-1C-24DC2 Zettler high-current relay series AZ9731. contact form: 1 normally open contact (AZ9731-1A-12DC2) or 1 changeover contact (AZ9731-1C-12DC2/24DC2) with quick connect terminals with a high operating temperatur of up to 125°C switching current: 40A contact material: AgSnO2

Specifications

manufacturer
Manufacturer's name AZ9731-1C-24DC2
Min. operating voltage [V] 15,6
Coil resistance [Ω] 360
Max. operating voltage [V] 31,2
Switching current [A] 40
Nominal capacity [mW] 1600
Data Sheet

Unit price

1,70 €

Stock: 20
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
