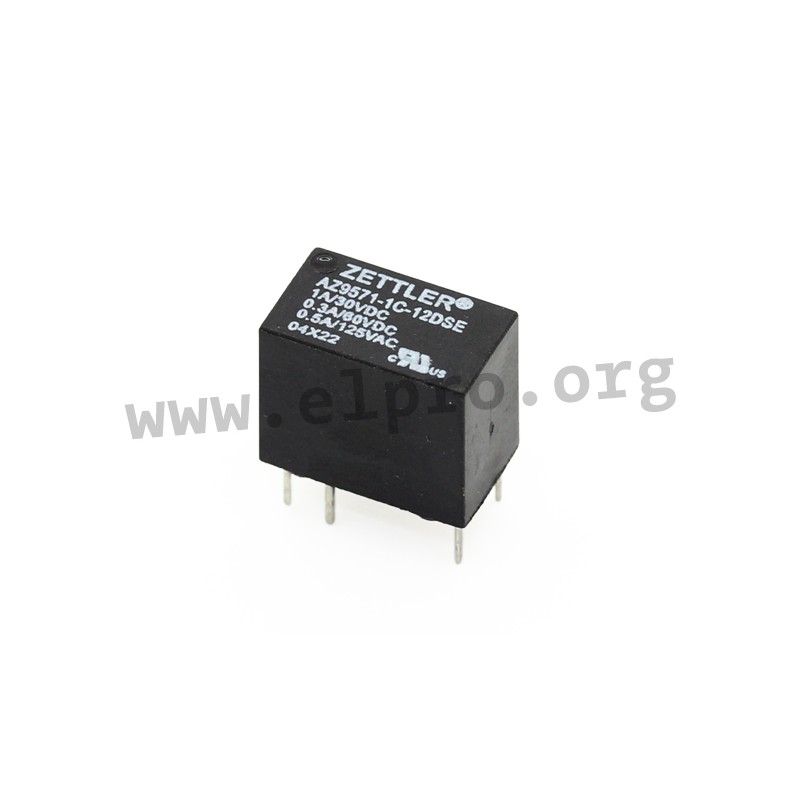

AZ9571-1C-5DSE

Zettler PCB relay series AZ957 and AZ9571

  • subminiature relays with DIL pitch terminals, a high sensivity and gold-plated contacts
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric
  • suitable for automatic wave soldering due to an epoxy sealing
  • 1 changeover contact (SPDT)
  • versions with a sensitive coil available (AZ957_DSE)
  • contact material AZ957-1C_: AgPd
  • contact material AZ9571-1C_: AgNi
  • switching current: 1A
AZ9571-1C-5DSE, Zettler PCB relays, 1A, 1 changeover contact, AZ957 and AZ9571 series

AZ9571-1C-5DSE

155978 AZ9571-1C-5DSE AZ9571-1C-5DSE Zettler PCB relay series AZ957 and AZ9571. subminiature relays with DIL pitch terminals, a high sensivity and gold-plated contacts comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for automatic wave soldering due to an epoxy sealing 1 changeover contact (SPDT) versions with a sensitive coil available (AZ957_DSE) contact material AZ957-1C_: AgPd contact material AZ9571-1C_: AgNi switching current: 1A

Specifications

manufacturer
Manufacturer's name AZ9571-1C-5DSE
Nominal voltage [V DC] 5
Coil resistance [Ω] 167
Min. operating voltage [V DC] 4
Max. operating voltage [V DC] 10
Nominal capacity [mW] 150
Data Sheet

Unit price

1,11 €

Stock: 1280
Further delivery:
CW 11/2025

Minimum order quantity 10 units or
multiples of 10.
