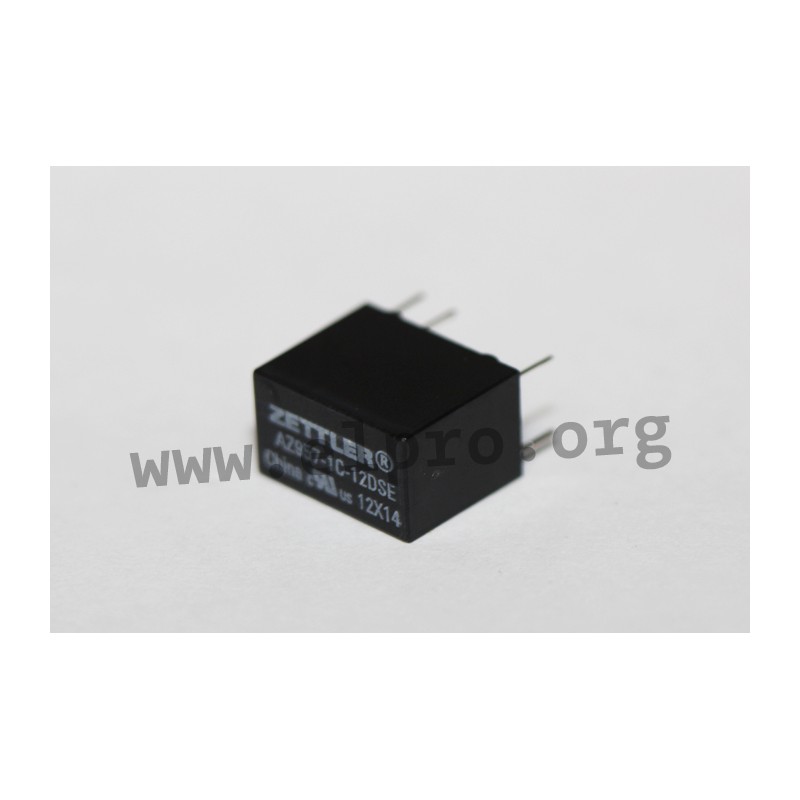

AZ957-1C-24DE

Zettler PCB relay series AZ957 and AZ9571

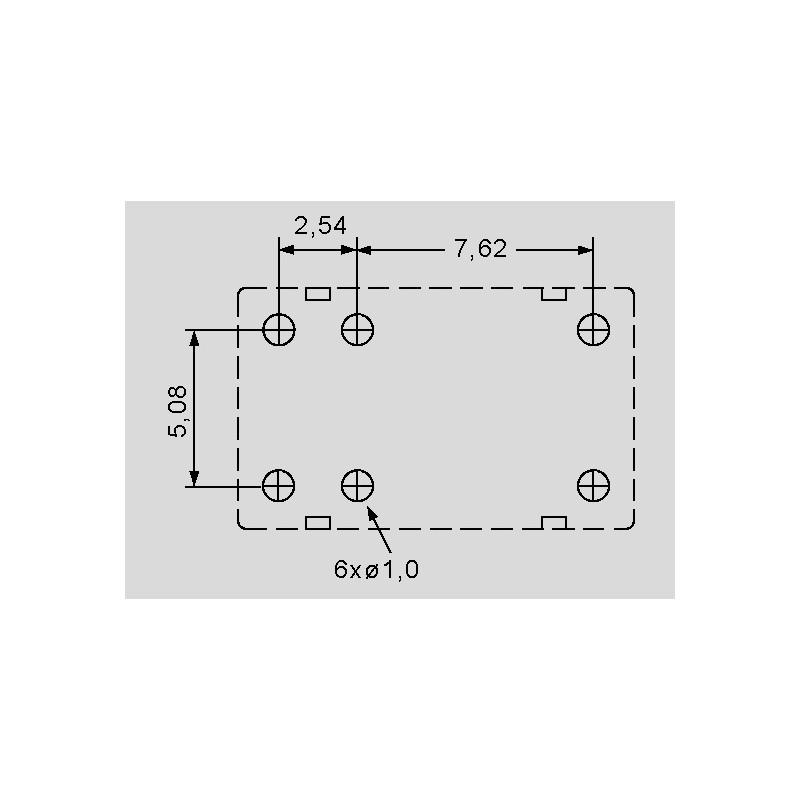

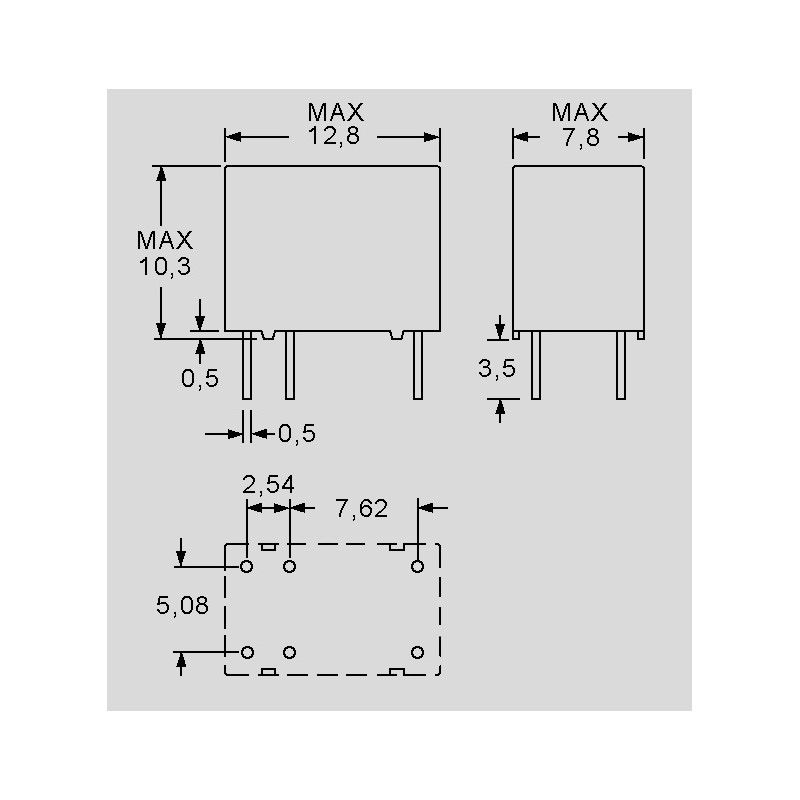

  • subminiature relays with DIL pitch terminals, a high sensivity and gold-plated contacts
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric
  • suitable for automatic wave soldering due to an epoxy sealing

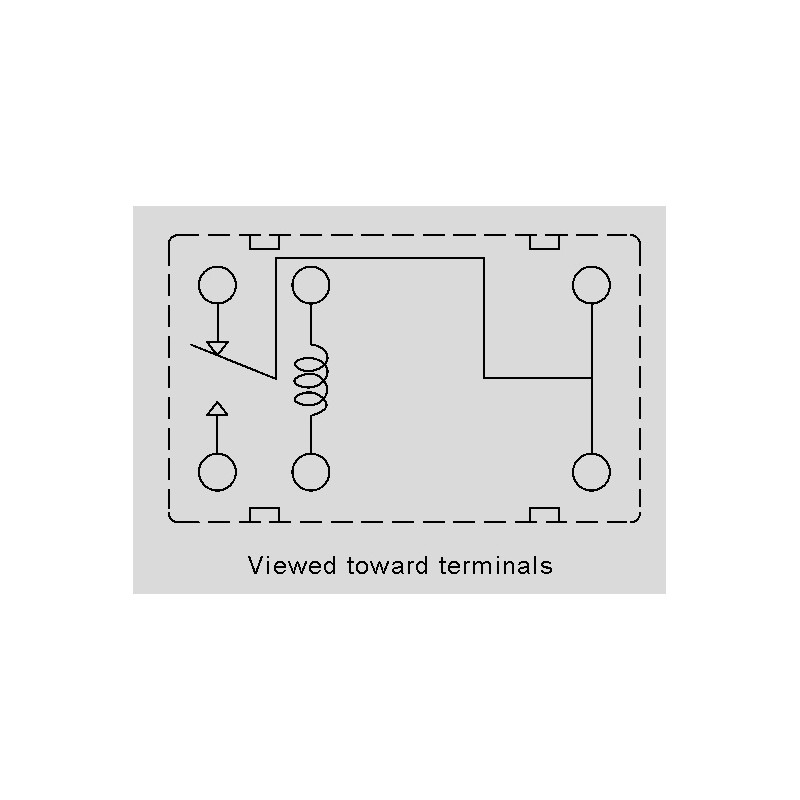

  • 1 changeover contact (SPDT)
  • versions with a sensitive coil available (AZ957_DSE)
  • contact material AZ957-1C_: AgPd
  • contact material AZ9571-1C_: AgNi
  • switching current: 1A

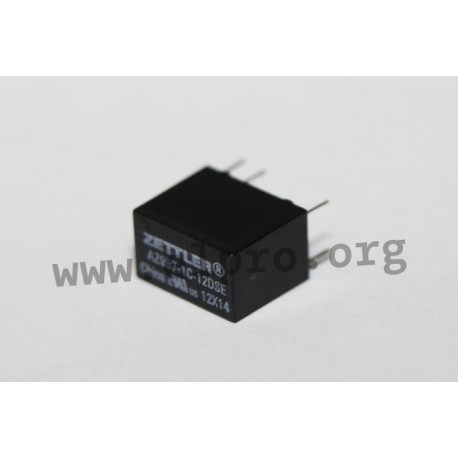

series AZ957 by Zettler

AZ957-1C-24DE

106872 AZ957-1C-24DE AZ957-1C-24DE Zettler PCB relay series AZ957 and AZ9571. subminiature relays with DIL pitch terminals, a high sensivity and gold-plated contacts comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for automatic wave soldering due to an epoxy sealing 1 changeover contact (SPDT) versions with a sensitive coil available (AZ957_DSE) contact material AZ957-1C_: AgPd contact material AZ9571-1C_: AgNi switching current: 1A

Specifications

manufacturer
Manufacturer's name AZ957-1C-24DE
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Min. operating voltage [V DC] 19,2
Max. operating voltage [V DC] 37,9
Data Sheet

Unit price

0,999 €

Stock: 1050
Further delivery:
CW 17/2025

Minimum order quantity 10 units or
multiples of 10.
