AZ943-1CH-24DE

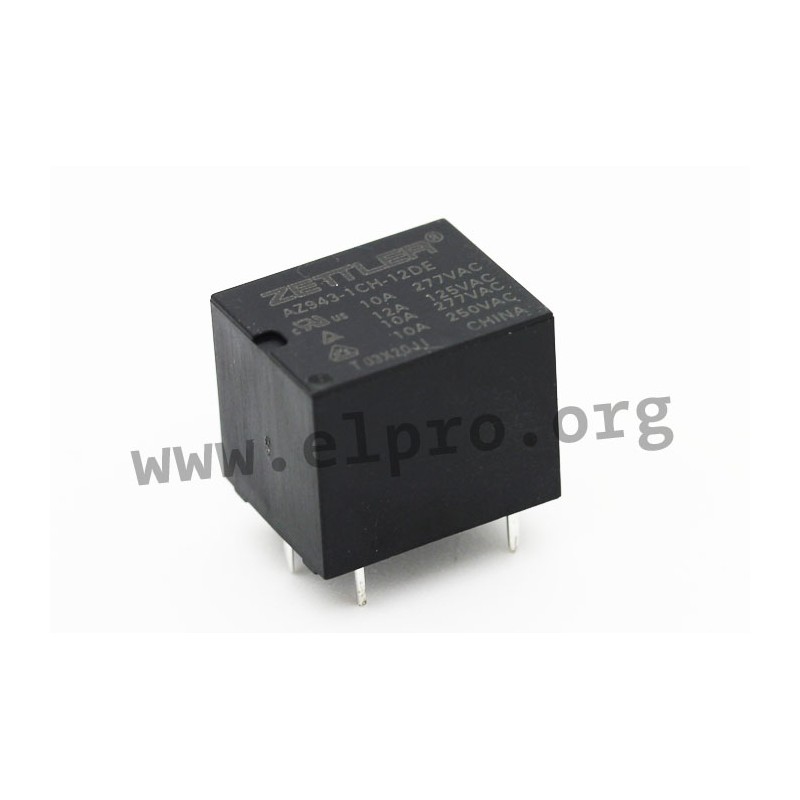

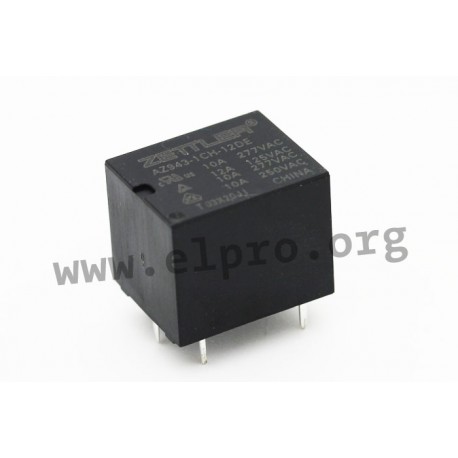

Zettler PCB relay series AZ943

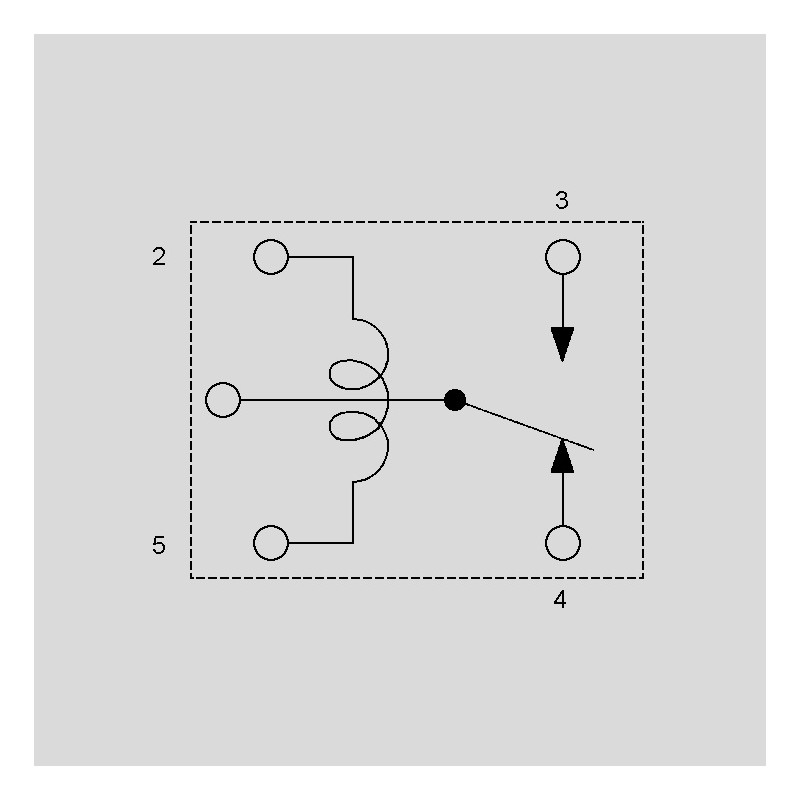

  • miniature relays with 1 changeover contact
  • sealed types available (AZ943_E)
  • dielectric strength of 1500Vrms between coil and contact
  • contact material: AgSnO2
  • switching current: 10A

AZ943-1CH-24DE

106930 AZ943-1CH-24DE AZ943-1CH-24DE Zettler PCB relay series AZ943. miniature relays with 1 changeover contact sealed types available (AZ943_E) dielectric strength of 1500Vrms between coil and contact contact material: AgSnO2 switching current: 10A

Specifications

manufacturer
Manufacturer's name AZ943-1CH-24DE
Nominal voltage [V DC] 24
Coil resistance [Ω] 1600 ±15%
Min. operating voltage [V DC] 18
Max. operating voltage [V DC] 31,2
Nominal capacity [mW] 360
Data Sheet

Unit price

0,644 €

Stock: 2320
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
