AZ9371-1A-12DE

Zettler PCB relay series AZ9371

  • relays in a compact design (20,5x7,2x15,3mm)
  • with 1 normally open contact, a high sensivity coil (113mW pickup) and a reinforced insulation (VDE 0700, 0631)
  • in a sealed case
  • dielectric strength of 4000Vrms between contact and coil
  • contact material: AgNi
  • switching current: 5A

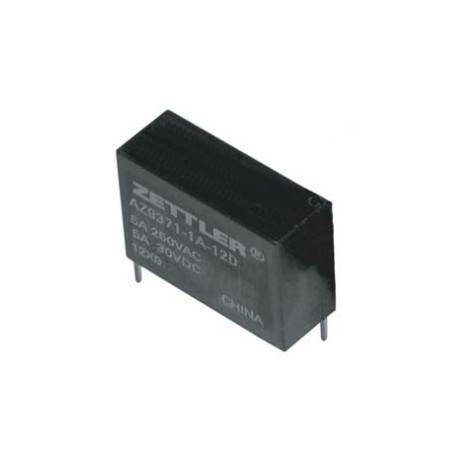

AZ9371-1A-12DE, Zettler PCB relays, 5A, 1 normally open contact, AZ9371 series

AZ9371-1A-12DE

156055 AZ9371-1A-12DE AZ9371-1A-12DE Zettler PCB relay series AZ9371. relays in a compact design (20,5x7,2x15,3mm) with 1 normally open contact, a high sensivity coil (113mW pickup) and a reinforced insulation (VDE 0700, 0631) in a sealed case dielectric strength of 4000Vrms between contact and coil contact material: AgNi switching current: 5A

Specifications

manufacturer
Manufacturer's name AZ9371-1A-12DE
Min. operating voltage [V] 9
Coil resistance [Ω] 720
Max. operating voltage [V] 23,2
Switching current [A] 5
Nominal capacity [mW] 200
Data Sheet

Unit price

0,783 €

Stock: 380
Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
