AZ921-1AE-12DEF

Zettler PCB relay series AZ921

  • relays in a slim SIL housing
  • with a thin profile (5mm), 1 normally open contact, a high sensivity coil (58mW intake) and an epoxy resin seal
  • dielectric strength of 3000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • insulation class F 155°C
  • switching current: 5A

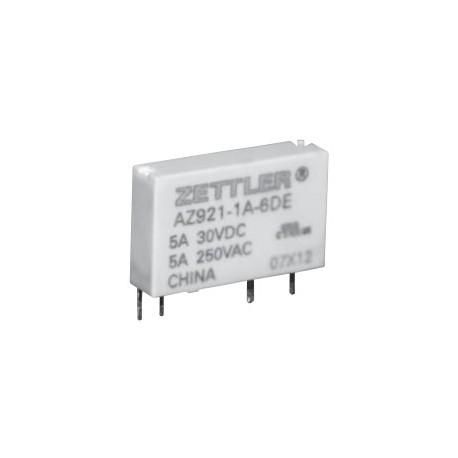

AZ921-1AE-12DEF, Zettler PCB relays, 5A, 1 normally open contact, AZ921 series

AZ921-1AE-12DEF

156033 AZ921-1AE-12DEF AZ921-1AE-12DEF Zettler PCB relay series AZ921. relays in a slim SIL housing  with a thin profile (5mm), 1 normally open contact, a high sensivity coil (58mW intake) and an epoxy resin seal dielectric strength of 3000Vrms between contact and coil proof tracking index PTI/CTI 250 insulation class F 155°C switching current: 5A

Specifications

manufacturer
Manufacturer's name AZ921-1AE-12DEF
Min. operating voltage [V] 8,4
Coil resistance [Ω] 1200
Switching current [A] 5
Nominal capacity [mW] 120
Data Sheet

Unit price

1,35 €

Stock: 940
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
