AZ921-1AB-24DEA

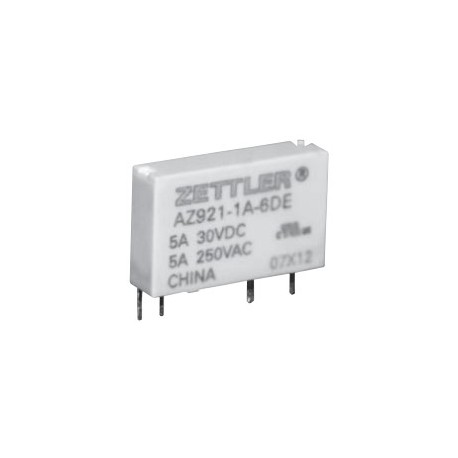

Zettler PCB relay series AZ921

  • relays in a slim SIL housing
  • with a thin profile (5mm), 1 normally open contact, a high sensivity coil (58mW intake) and an epoxy resin seal
  • dielectric strength of 3000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • switching current: 5A

AZ921-1AB-24DEA

156031 AZ921-1AB-24DEA AZ921-1AB-24DEA Zettler PCB relay series AZ921. relays in a slim SIL housing  with a thin profile (5mm), 1 normally open contact, a high sensivity coil (58mW intake) and an epoxy resin seal dielectric strength of 3000Vrms between contact and coil proof tracking index PTI/CTI 250 switching current: 5A

Specifications

manufacturer
Manufacturer's name AZ921-1AB-24DEA
Min. operating voltage [V] 16,8
Coil resistance [Ω] 3200
Switching current [A] 5
Nominal capacity [mW] 180
Data Sheet

Unit price

1,47 €

Stock: 0
Further delivery:
CW 03/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
