AZ888-1A-5DE

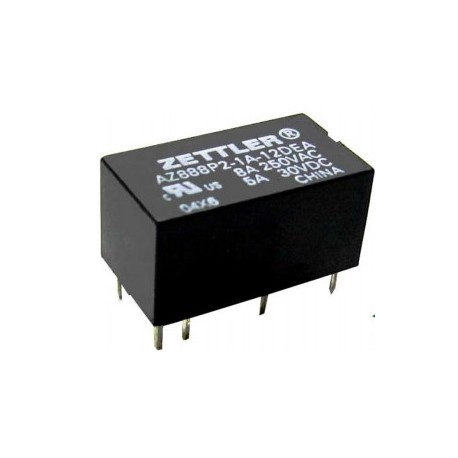

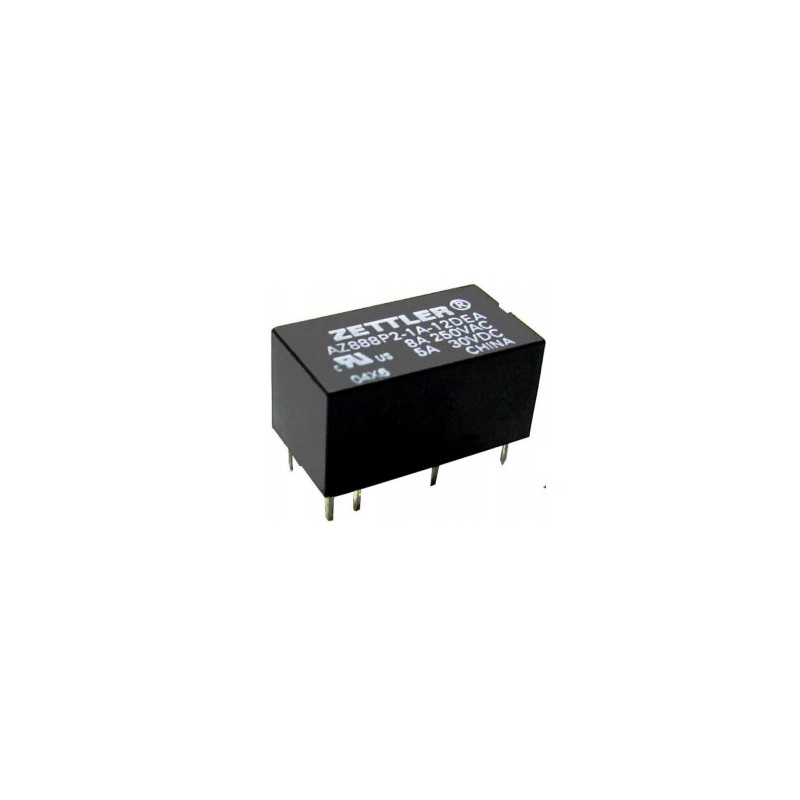

Zettler PCB relay series AZ888

  • polarized power relays in a non-latching version
  • with a low coil power and a low profile (10,5mm)
  • dielectric strength of 3000Vrms between contact and coil
  • 1 normally open contact (SPST-NO)
  • contact material: AgSnO2
  • switching current: 8A
AZ888-1A-5DE, Zettler PCB relays, 5 and 8A, 1 normally open or 2 normally open or 1 normally open and 1 changeover contact, AZ88

AZ888-1A-5DE

156112 AZ888-1A-5DE AZ888-1A-5DE Zettler PCB relay series AZ888. polarized power relays in a non-latching version with a low coil power and a low profile (10,5mm) dielectric strength of 3000Vrms between contact and coil 1 normally open contact (SPST-NO) contact material: AgSnO2 switching current: 8A

Specifications

manufacturer
Manufacturer's name AZ888-1A-5DE
Nominal voltage [V DC] 5
Min. operating voltage [V] 4
Coil resistance [Ω] 83
Max. operating voltage [V] 6,5
Data Sheet

Unit price

2,39 €

Stock: 0
Further delivery:
CW 21/2025

Minimum order quantity 10 units or
multiples of 10.
