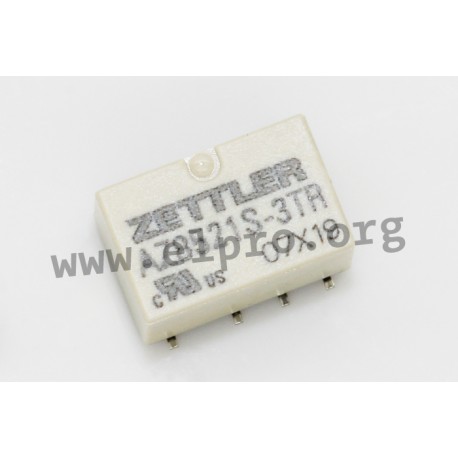

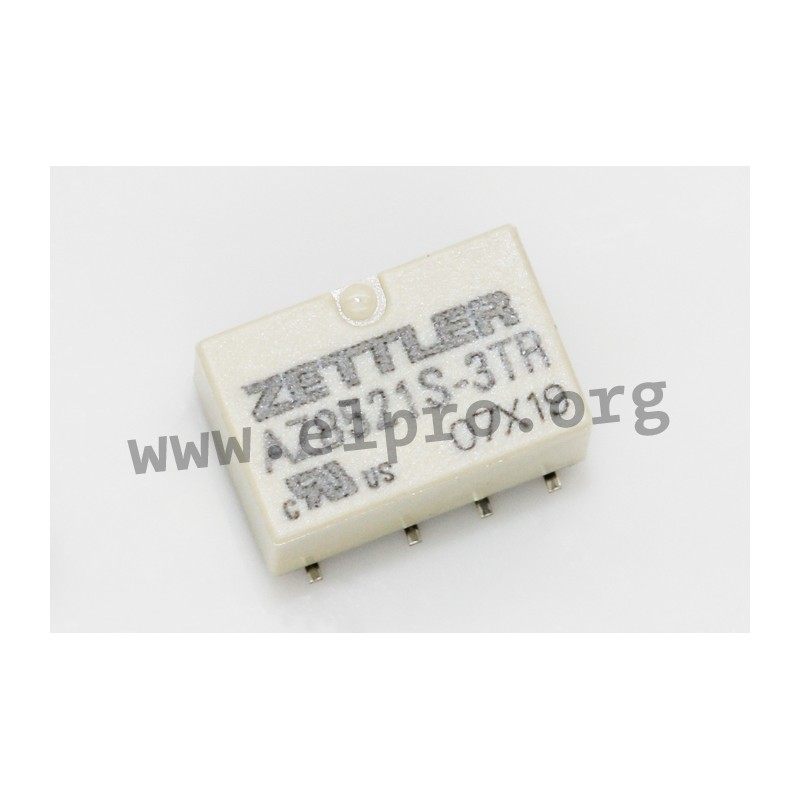

AZ8521S-24

Zettler SMD PCB relay series AZ8521

  • subminiature relays in an SMD housing (10x76,5x5,65mm)
  • monostable type
  • with 2 changeover contacts, a low power consumption (79mW) and gold-plated contacts
  • minimum switching load of 10mV, 10μA
  • suitable for automatic wave soldering thanks to an epoxy sealing
  • comply with IEC 60950 resp. EN41003
  • contact material: AgNi
  • switching current: 2A
AZ8521S-24, Zettler SMD PCB relays, 2A, 2 changeover contacts, AZ8521 series

AZ8521S-24

155994 AZ8521S-24 AZ8521S-24 Zettler SMD PCB relay series AZ8521. subminiature relays in an SMD housing (10x76,5x5,65mm) monostable type with 2 changeover contacts, a low power consumption (79mW) and gold-plated contacts minimum switching load of 10mV, 10μA suitable for automatic wave soldering thanks to an epoxy sealing comply with IEC 60950 resp. EN41003 contact material: AgNi switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ8521S-24
Min. operating voltage [V] 18
Coil resistance [Ω] 2880
Max. operating voltage [V] 36
Nominal capacity [mW] 200
Data Sheet

Unit price

2,09 €

Stock: 970
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
