AZ8521PS-5TR

Zettler SMD PCB relay series AZ8521

  • subminiature relays in a bistable (latching) type

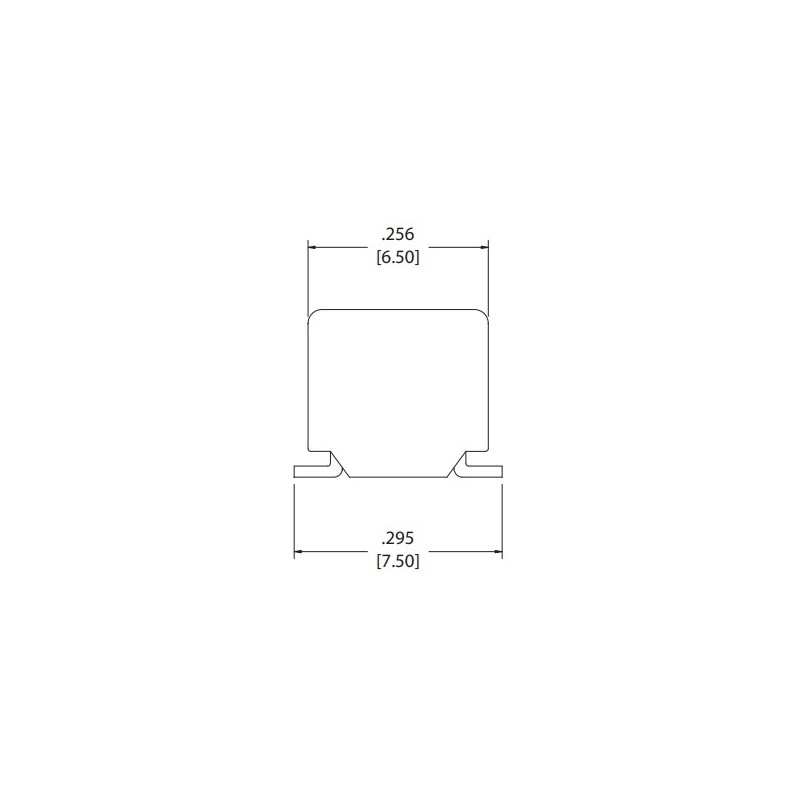

  • in an SMD housing (10x76,5x5,65mm)
  • with 2 changeover contacts (DPDT), a low power consumption (79mW), gold-plated contacts and a minimal switching load of 10mV, 10μA
  • comply with IEC 60950 resp. EN41003
  • suitable for automatic wave soldering due to an epoxy sealing
  • contact material: AgNi
  • switching current: 2A

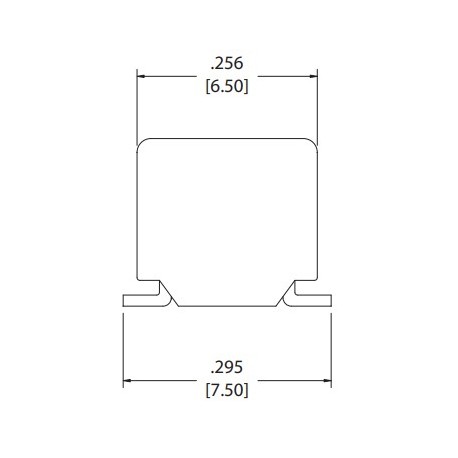

AZ8521PS-5TR, Zettler SMD relays, 2A, 2 changeover contacts, bistable, AZ8521 series

AZ8521PS-5TR

114230 AZ8521PS-5TR AZ8521PS-5TR Zettler SMD PCB relay series AZ8521. subminiature relays in a bistable (latching) type in an SMD housing (10x76,5x5,65mm) with 2 changeover contacts (DPDT), a low power consumption (79mW), gold-plated contacts and a minimal switching load of 10mV, 10μA comply with IEC 60950 resp. EN41003 suitable for automatic wave soldering due to an epoxy sealing contact material: AgNi switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ8521PS-5TR
Nominal voltage [V DC] 5
Min. operating voltage [V] 3,75
Coil resistance [Ω] 250
Max. operating voltage [V] 7,5
Switching current [A] 2
Nominal capacity [mW] 100
Data Sheet

Unit price

1,04 €

Stock: 3600
Further delivery:
CW 17/2025

Minimum order quantity 10 units or
multiples of 10.
