AZ8462-12

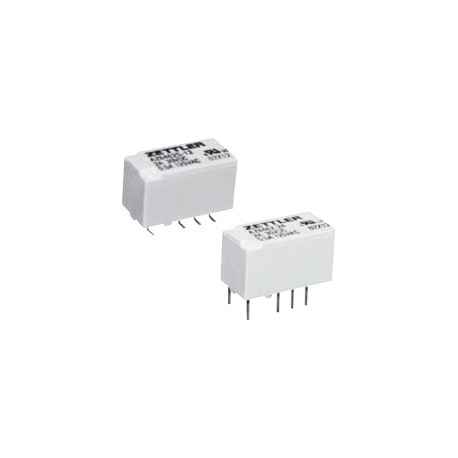

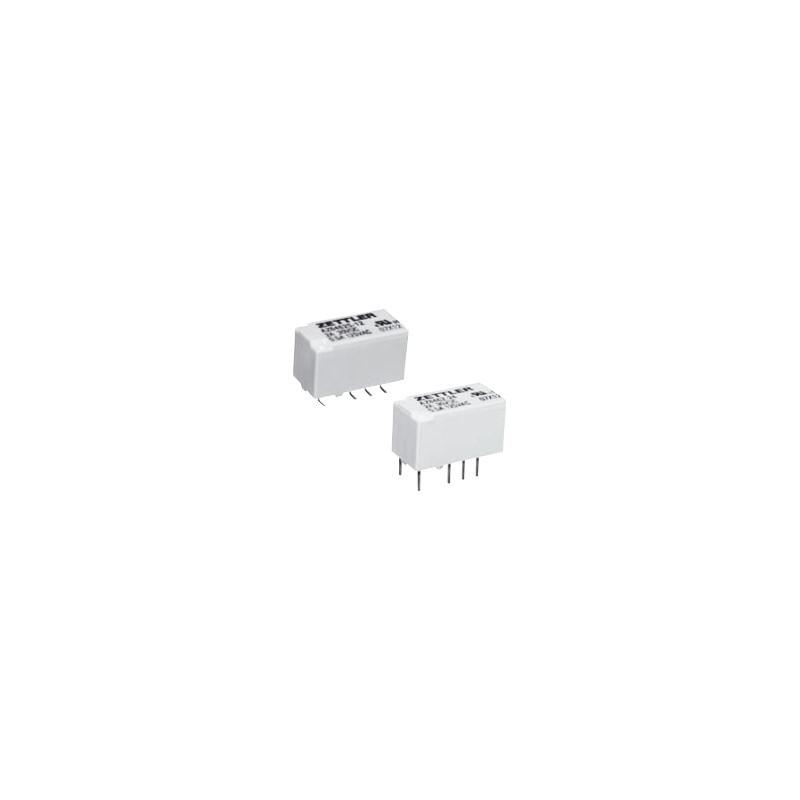

Zettler SMD PCB relay series AZ8462

  • polarized relays in a comapct design (15,2x7,7x9,2mm)
  • with 2 changeover contacts (gold-plated), an epoxy resin seal and a high sensivity coil (79mW intake)
  • low level signal switching due to a stable contact resistance
  • versions for direct PCB mounting available (AZ8462S_)
  • contact material: AgPd
  • switching current: 2A
AZ8462-12, Zettler SMD PCB relays, 2A, 2 changeover contacts, AZ8462 series

AZ8462-12

156006 AZ8462-12 AZ8462-12 Zettler SMD PCB relay series AZ8462. polarized relays in a comapct design (15,2x7,7x9,2mm) with 2 changeover contacts (gold-plated), an epoxy resin seal and a high sensivity coil (79mW intake) low level signal switching due to a stable contact resistance versions for direct PCB mounting available (AZ8462S_) contact material: AgPd switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ8462-12
Min. operating voltage [V] 9
Coil resistance [Ω] 1028
Max. operating voltage [V] 30
Switching current [A] 2
Nominal capacity [mW] 140
Data Sheet

Unit price

1,26 €

Stock: 0
Further delivery:
CW 14/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
