AZ832P2-2C-5DSE

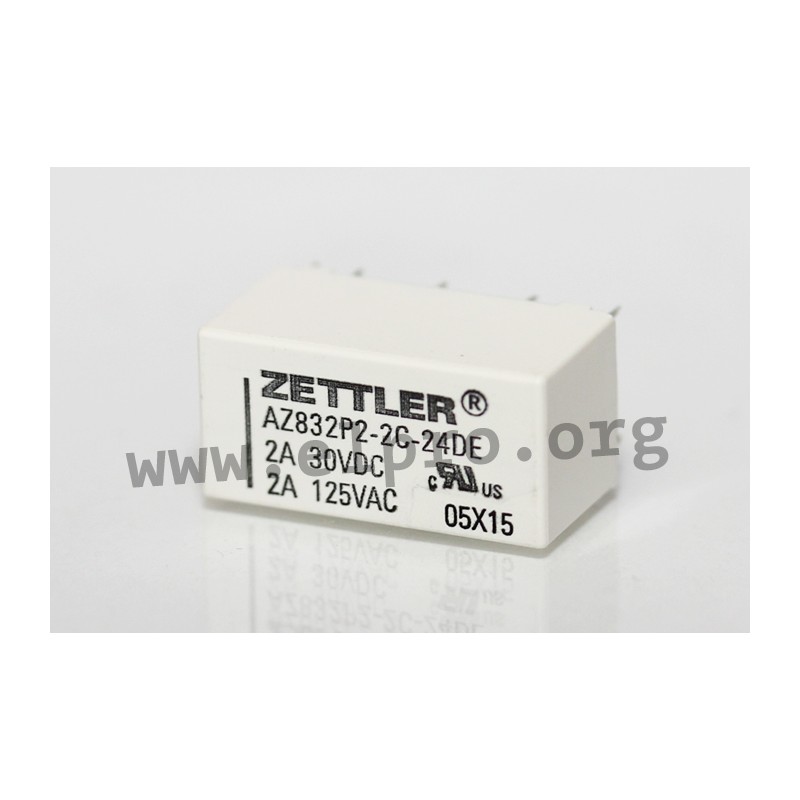

Zettler PCB relay series AZ832

  • relays in a DIL housing (20,2x10x10,65mm)
  • bistable (AZ832P_) or single side stable (AZ832) types available
  • with 2 changeover contacts and an epoxy sealing
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric
  • suitable for a standard 16 pin IC socket
  • contact material: AuAg with PdAg
  • switching current: 3A
AZ832P2-2C-5DSE, Zettler PCB relays, 3A, 2 changeover contacts, AZ832 series

AZ832P2-2C-5DSE

156012 AZ832P2-2C-5DSE AZ832P2-2C-5DSE Zettler PCB relay series AZ832. relays in a DIL housing (20,2x10x10,65mm) bistable (AZ832P_) or single side stable (AZ832) types available with 2 changeover contacts and an epoxy sealing comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for a standard 16 pin IC socket contact material: AuAg with PdAg switching current: 3A

Specifications

manufacturer
Manufacturer's name AZ832P2-2C-5DSE
Nominal voltage [V DC] 5
Coil resistance [Ω] 167
Min. operating voltage [V DC] 3,75
Max. operating voltage [V DC] 12,3
Nominal capacity [mW] 150
Data Sheet

Unit price

1,43 €

Stock: 0
Further delivery:
CW 18/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
