AZ832-2C-5DE

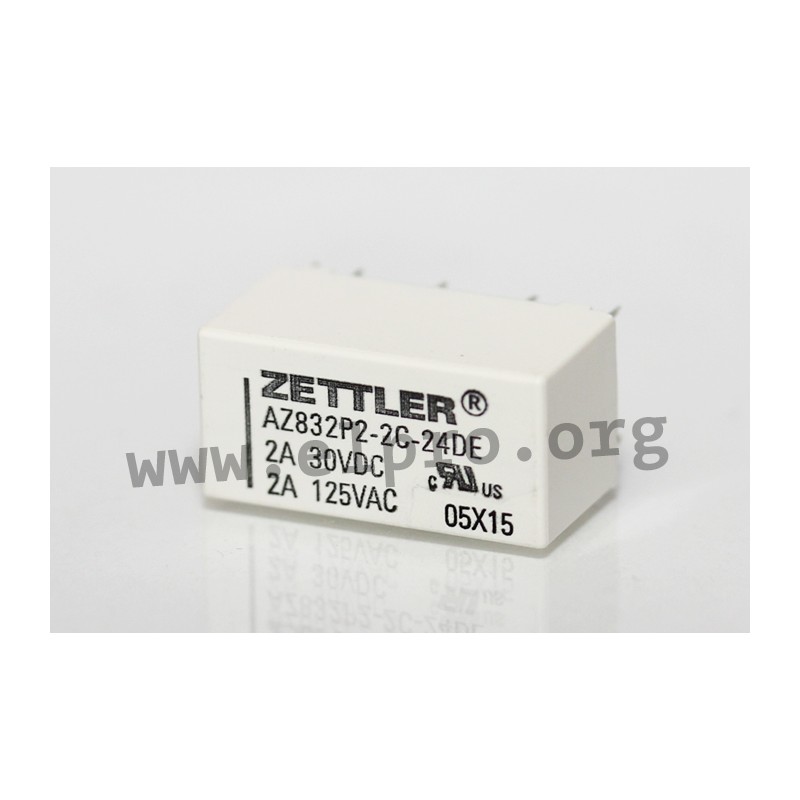

Zettler PCB relay series AZ832

  • relays in a DIL housing (20,2x10x10,65mm)
  • bistable (AZ832P_) or single side stable (AZ832) types available
  • with 2 changeover contacts and an epoxy sealing
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric
  • suitable for a standard 16 pin IC socket
  • contact material: AuAg with PdAg
  • switching current: 3A
AZ832-2C-5DE, Zettler PCB relays, 3A, 2 changeover contacts, AZ832 series

AZ832-2C-5DE

156011 AZ832-2C-5DE AZ832-2C-5DE Zettler PCB relay series AZ832. relays in a DIL housing (20,2x10x10,65mm) bistable (AZ832P_) or single side stable (AZ832) types available with 2 changeover contacts and an epoxy sealing comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for a standard 16 pin IC socket contact material: AuAg with PdAg switching current: 3A

Specifications

manufacturer
Manufacturer's name AZ832-2C-5DE
Nominal voltage [V DC] 5
Coil resistance [Ω] 125
Min. operating voltage [V DC] 4
Max. operating voltage [V DC] 10,6
Nominal capacity [mW] 200
Data Sheet

Unit price

1,39 €

Stock: 1190
Further delivery:
CW 16/2025

Minimum order quantity 5 units or
multiples of 5.
