AZ832P2-2C-24DE

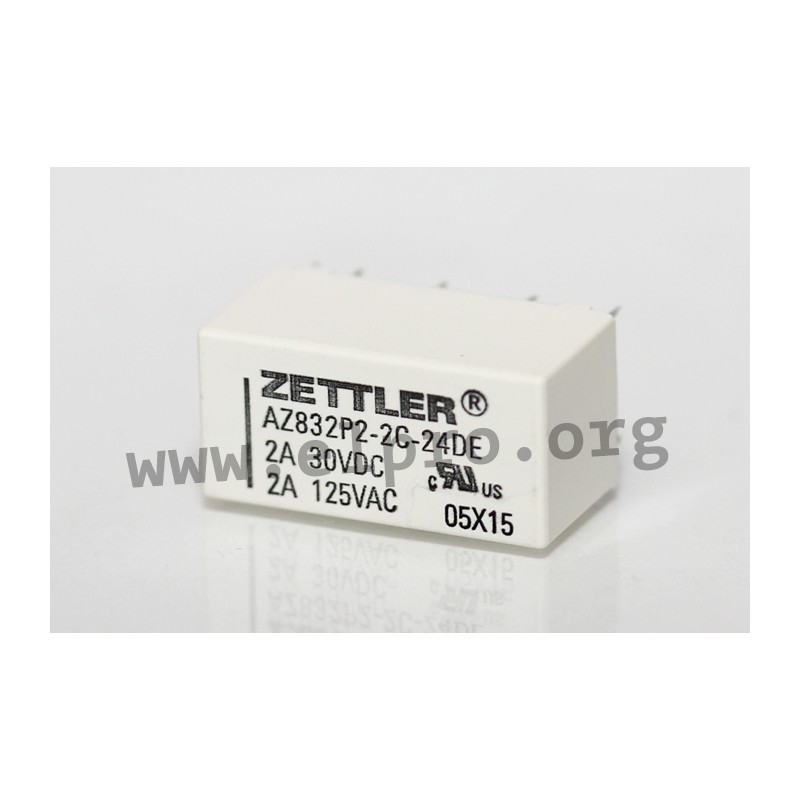

Zettler PCB relay series AZ832

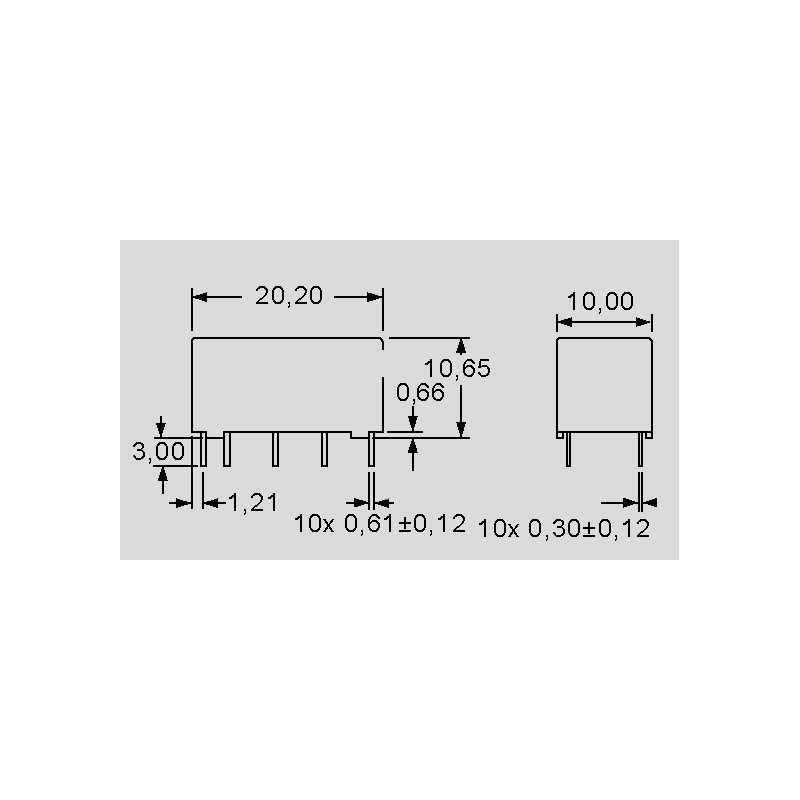

  • relays in a DIL housing (20,2x10x10,65mm)

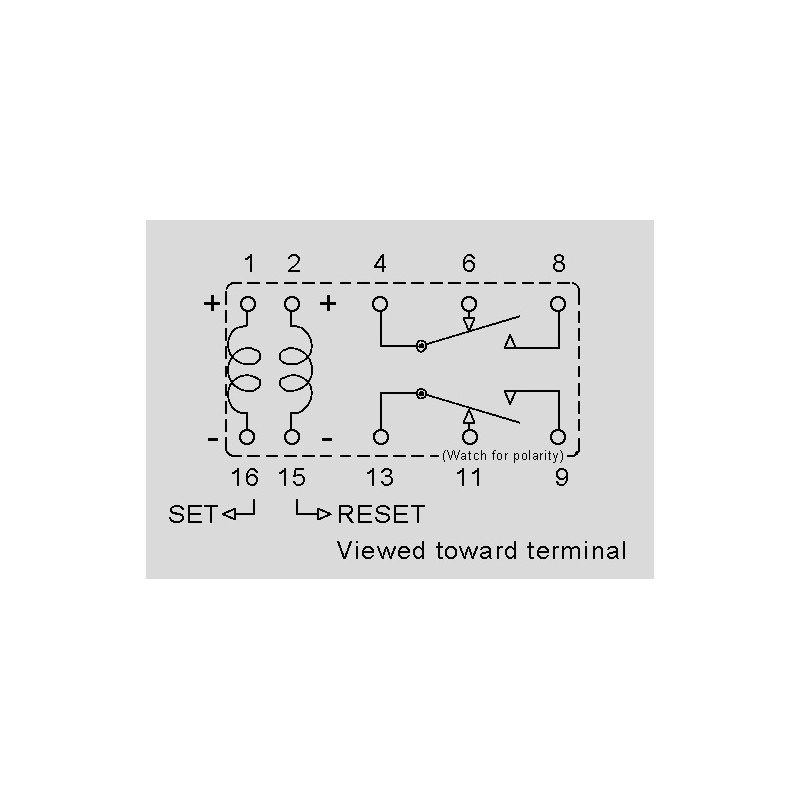

  • bistable (AZ832P_) or single side stable (AZ832) types available
  • with 2 changeover contacts and an epoxy sealing
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric

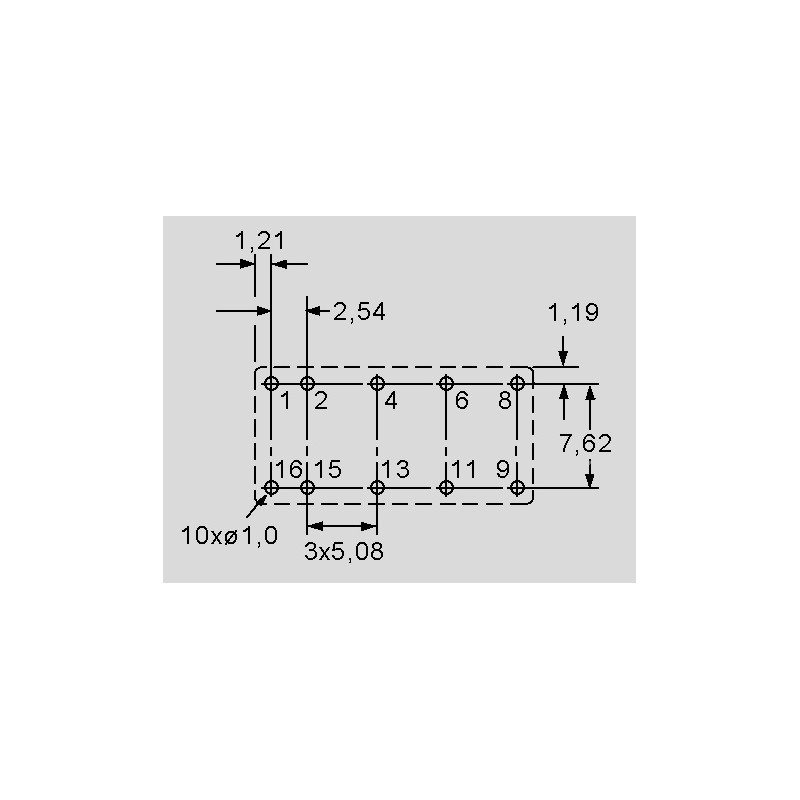

  • suitable for a standard 16 pin IC socket
  • contact material: AuAg with PdAg
  • switching current: 3A
series AZ832 by Zettler

AZ832P2-2C-24DE

106901 AZ832P2-2C-24DE AZ832P2-2C-24DE Zettler PCB relay series AZ832. relays in a DIL housing (20,2x10x10,65mm) bistable (AZ832P_) or single side stable (AZ832) types available with 2 changeover contacts and an epoxy sealing comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for a standard 16 pin IC socket contact material: AuAg with PdAg switching current: 3A

Specifications

manufacturer
Manufacturer's name AZ832P2-2C-24DE
Nominal voltage [V DC] 24
Coil resistance [Ω] 2040
Min. operating voltage [V DC] 18
Max. operating voltage [V DC] 18
Nominal capacity [mW] 300
Data Sheet

Unit price

1,65 €

Stock: 739
Further delivery:
CW 13/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
