AZ832P2-2C-3DE

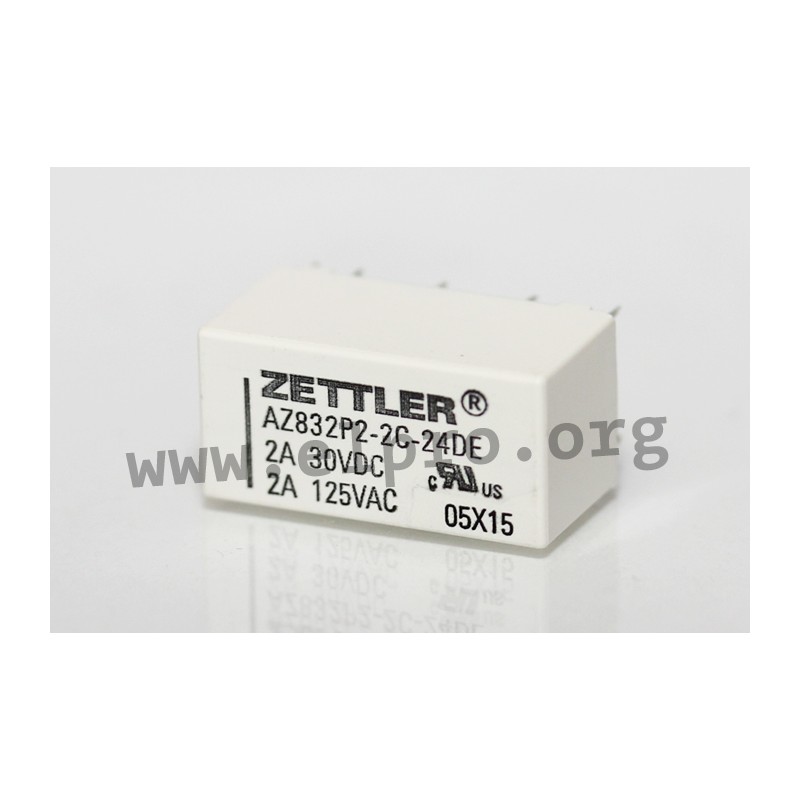

Zettler PCB relay series AZ832

  • relays in a DIL housing (20,2x10x10,65mm)
  • bistable (AZ832P_) or single side stable (AZ832) types available
  • with 2 changeover contacts and an epoxy sealing
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric

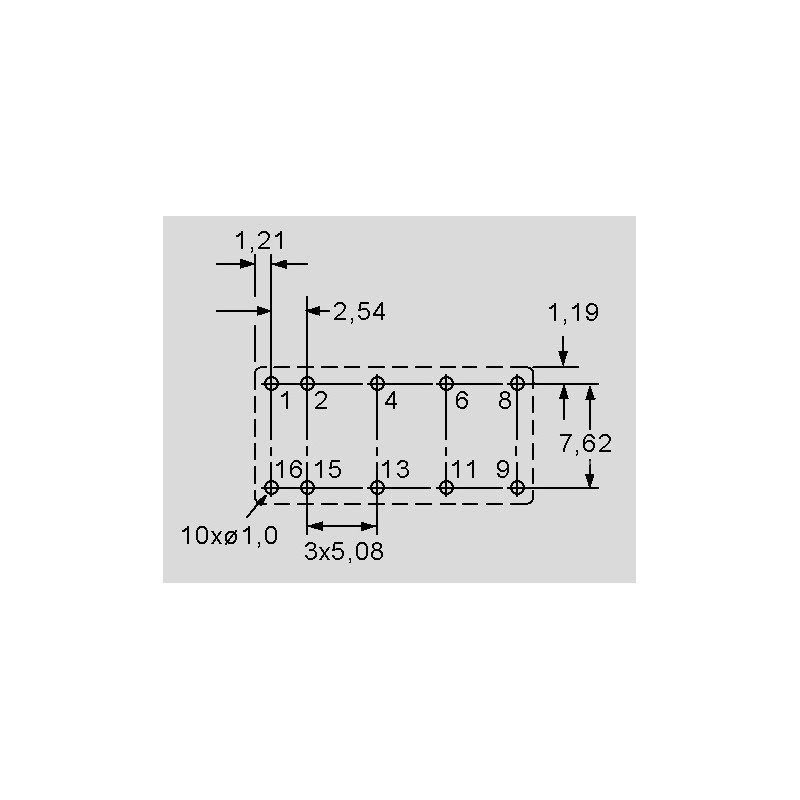

  • suitable for a standard 16 pin IC socket
  • contact material: AuAg with PdAg
  • switching current: 3A
series AZ832 by Zettler

AZ832P2-2C-3DE

106898 AZ832P2-2C-3DE AZ832P2-2C-3DE Zettler PCB relay series AZ832. relays in a DIL housing (20,2x10x10,65mm) bistable (AZ832P_) or single side stable (AZ832) types available with 2 changeover contacts and an epoxy sealing comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for a standard 16 pin IC socket contact material: AuAg with PdAg switching current: 3A

Specifications

manufacturer
Manufacturer's name AZ832P2-2C-3DE
Nominal voltage [V DC] 3
Coil resistance [Ω] 45
Min. operating voltage [V DC] 2,25
Max. operating voltage [V DC] 6,4
Data Sheet

Unit price

1,44 €

Stock: 35
Next incoming goods:
CW 14/2025
1000 units

Further delivery:
CW 21/2025

Minimum order quantity 5 units or
multiples of 5.
