AZ832-2C-24DE

Zettler PCB relay series AZ832

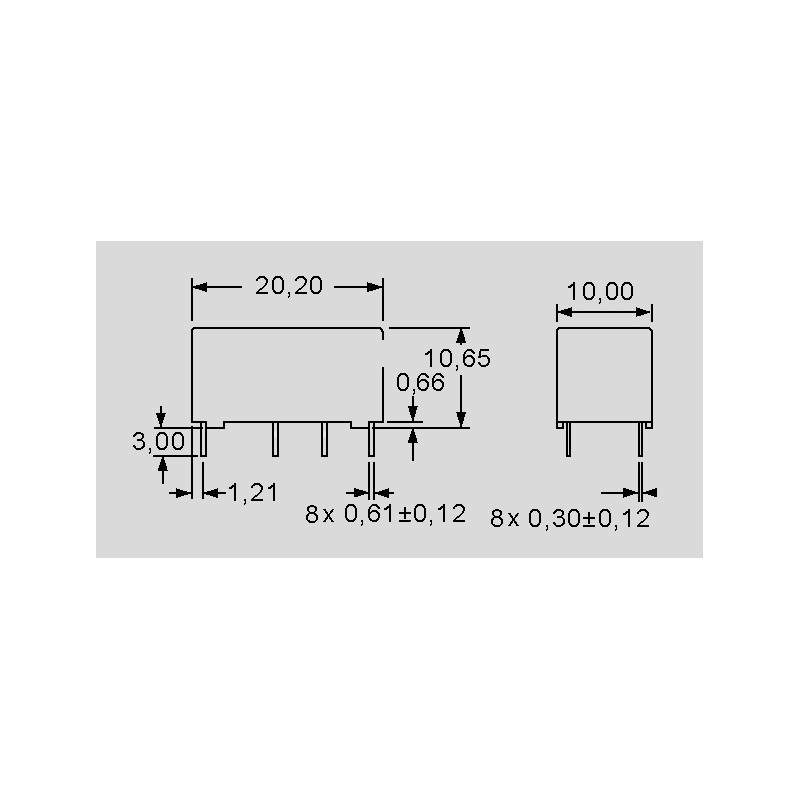

  • relays in a DIL housing (20,2x10x10,65mm)
  • bistable (AZ832P_) or single side stable (AZ832) types available

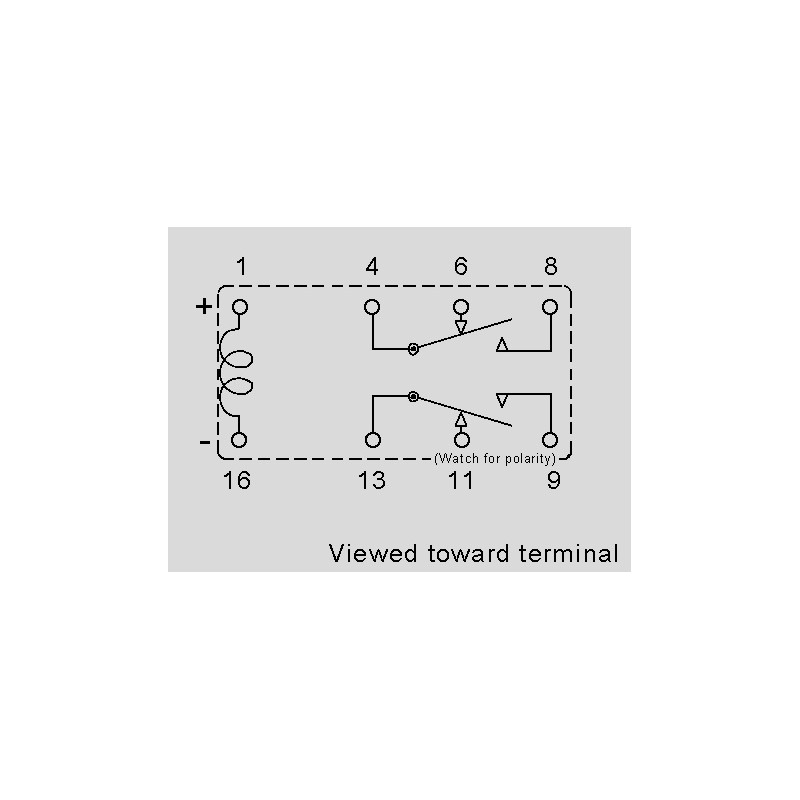

  • with 2 changeover contacts and an epoxy sealing
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric

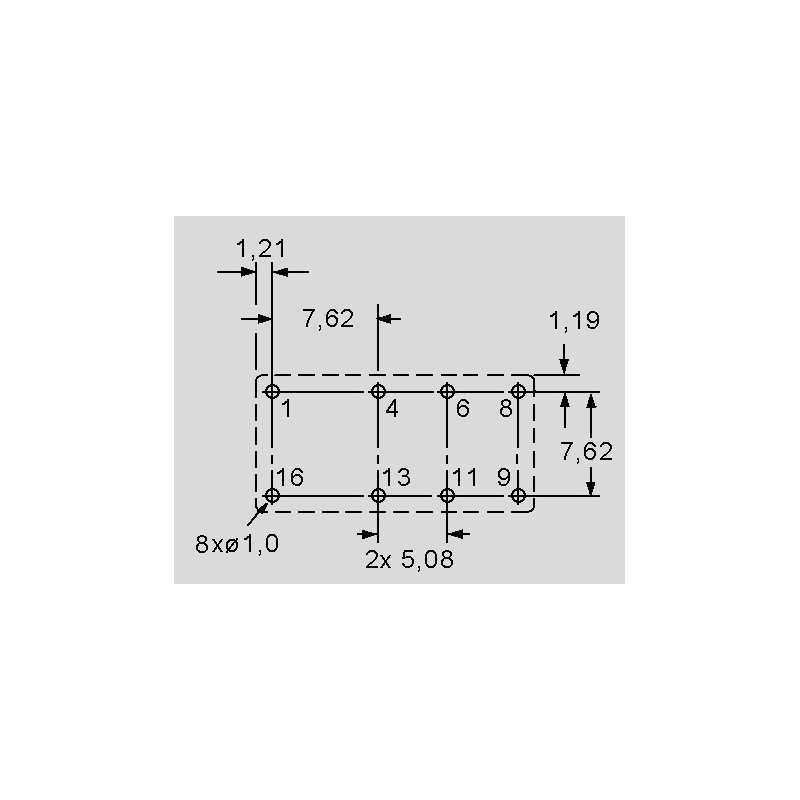

  • suitable for a standard 16 pin IC socket
  • contact material: AuAg with PdAg
  • switching current: 3A
series AZ832 by Zettler

AZ832-2C-24DE

106895 AZ832-2C-24DE AZ832-2C-24DE Zettler PCB relay series AZ832. relays in a DIL housing (20,2x10x10,65mm) bistable (AZ832P_) or single side stable (AZ832) types available with 2 changeover contacts and an epoxy sealing comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric suitable for a standard 16 pin IC socket contact material: AuAg with PdAg switching current: 3A

Specifications

manufacturer
Manufacturer's name AZ832-2C-24DE
Nominal voltage [V DC] 24
Coil resistance [Ω] 2820
Min. operating voltage [V DC] 19,2
Max. operating voltage [V DC] 50,9
Data Sheet

Unit price

1,36 €

Stock: 0
Next incoming goods:
CW 50/2024
1185 units

Further delivery:
CW 13/2025

Minimum order quantity 5 units or
multiples of 5.
