AZ822-2C-24DSE

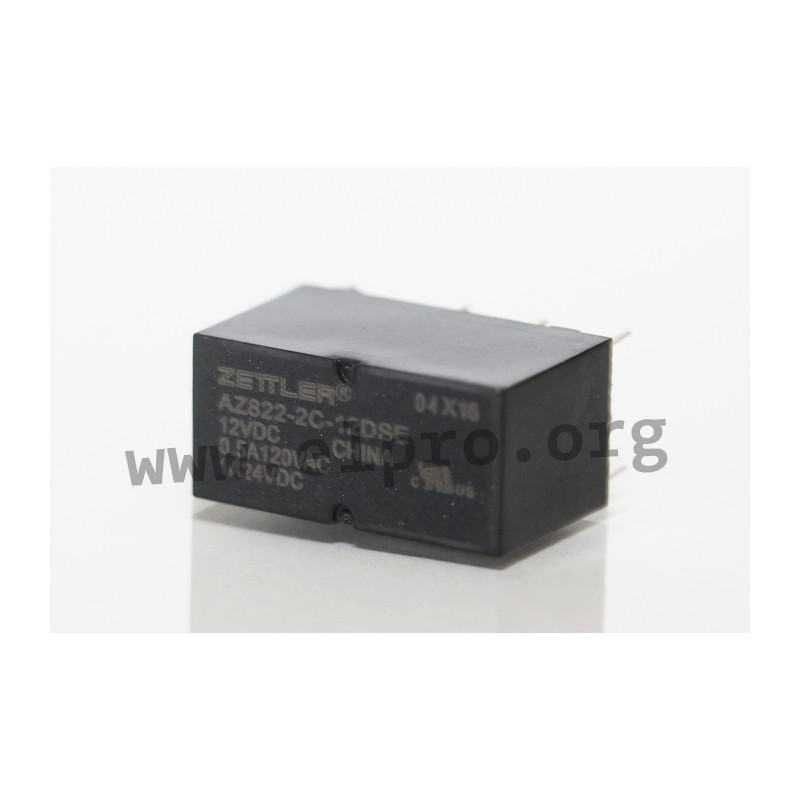

Zettler PCB relay series AZ822

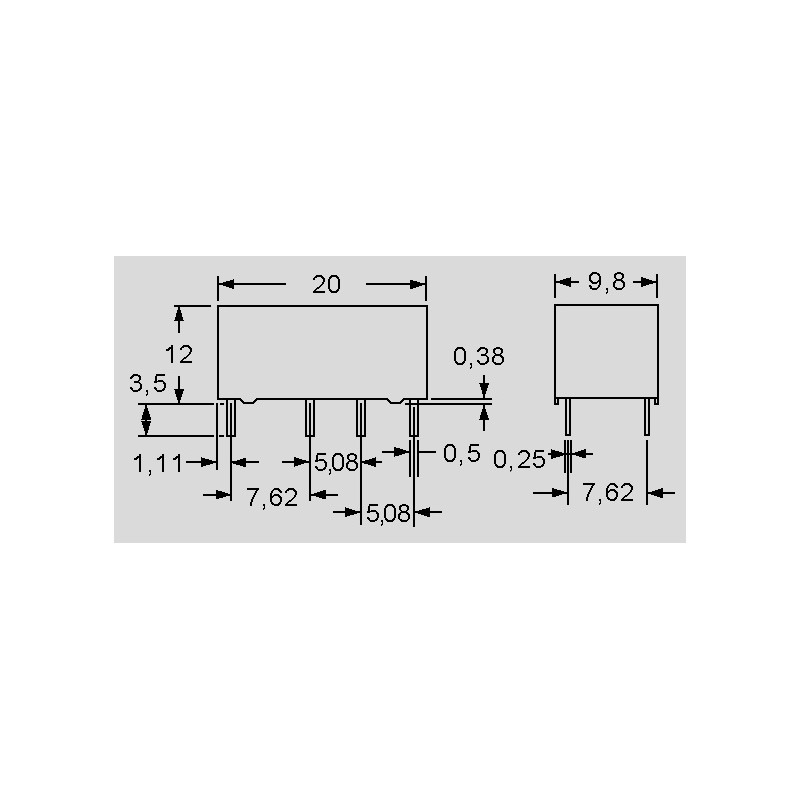

  • relays with a low profile (20x9,8x12mm) and gold-plated contacts

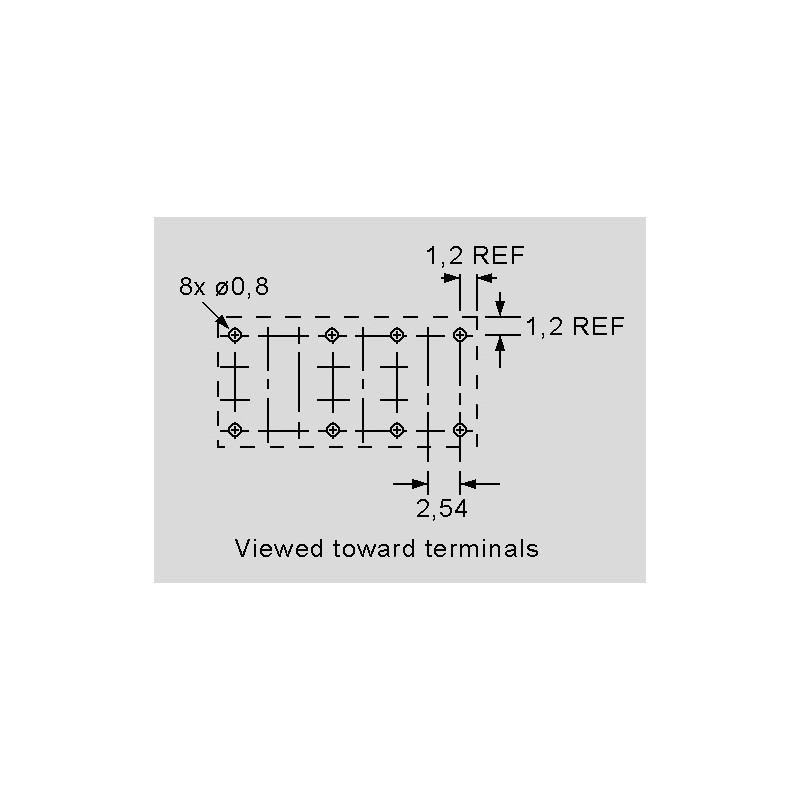

  • suitable for standard 16 pin IC sockets
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric

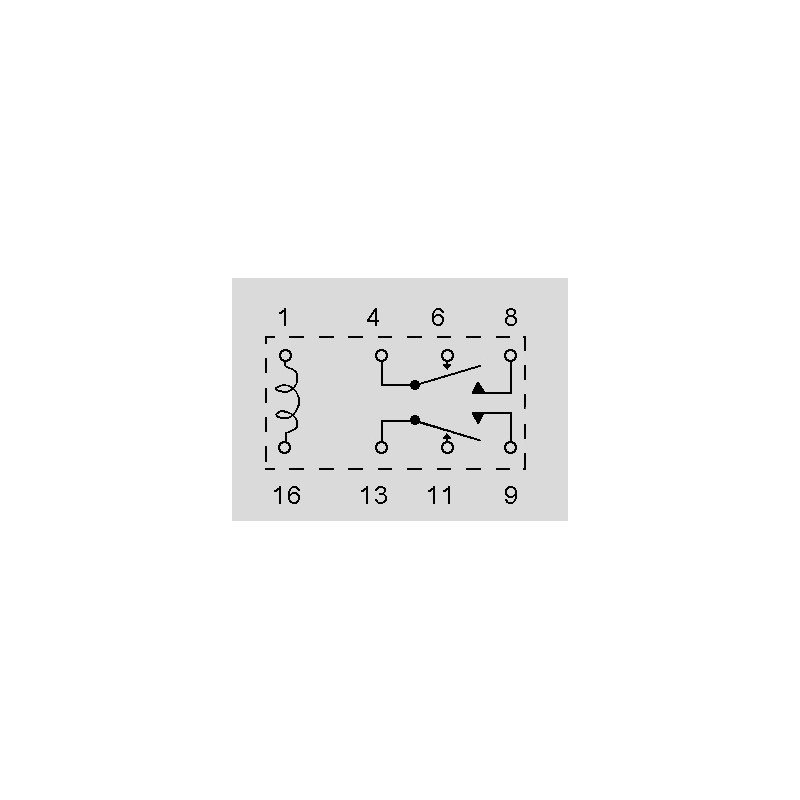

  • with 2 changeover contacts, a sensitive coil and a service life of up to 108 operations
  • suitable for automatic wave soldering due to an epoxy sealing
  • contact material: AgPd
  • switching current: 2A

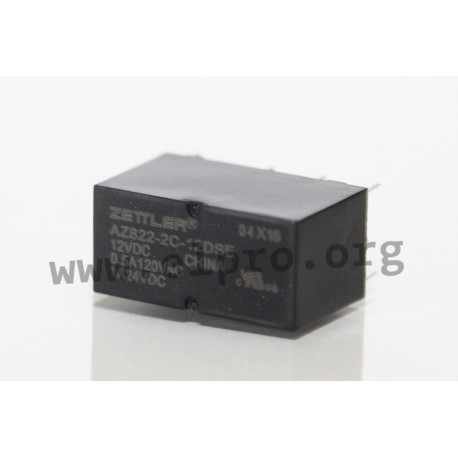

series AZ822 by Zettler

AZ822-2C-24DSE

106889 AZ822-2C-24DSE AZ822-2C-24DSE Zettler PCB relay series AZ822. relays with a low profile (20x9,8x12mm) and gold-plated contacts suitable for standard 16 pin IC sockets  comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric with 2 changeover contacts, a sensitive coil and a service life of up to 108 operations suitable for automatic wave soldering due to an epoxy sealing contact material: AgPd switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ822-2C-24DSE
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Min. operating voltage [V DC] 16,8
Max. operating voltage [V DC] 52,9
Nominal capacity [mW] 150
Data Sheet

Unit price

1,19 €

Stock: 1000
Next incoming goods:
CW 07/2025
1000 units

Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
