AZ822-2C-12DSE

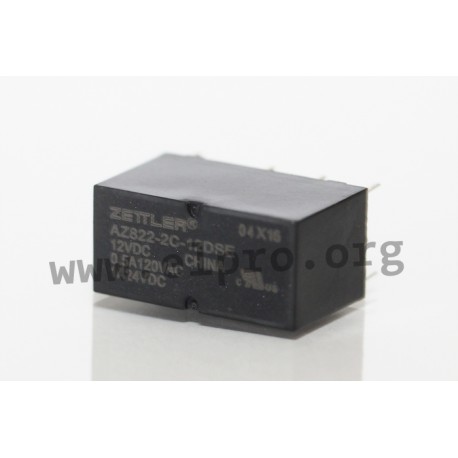

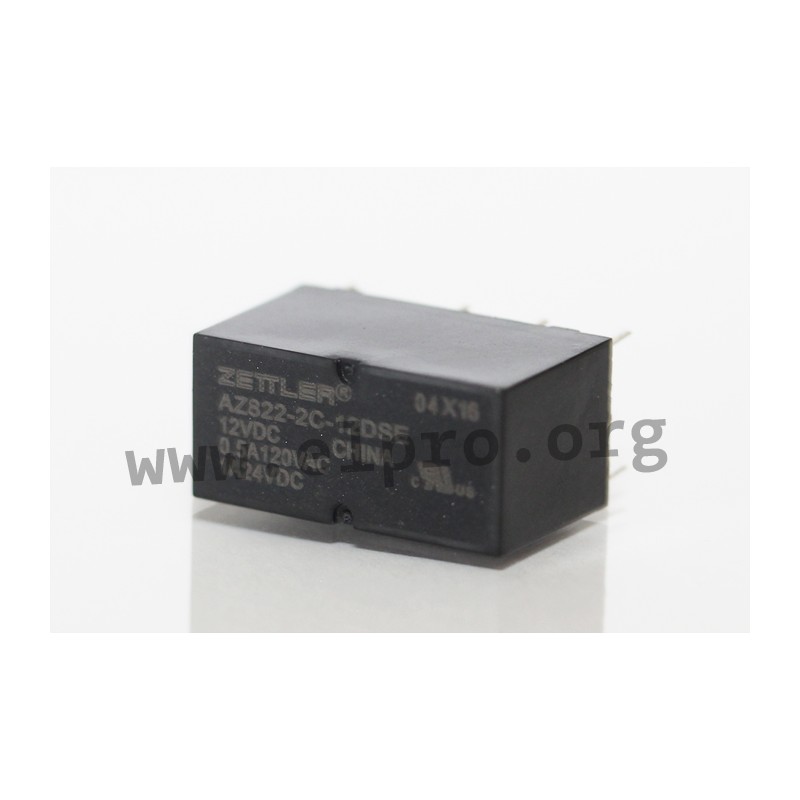

Zettler PCB relay series AZ822

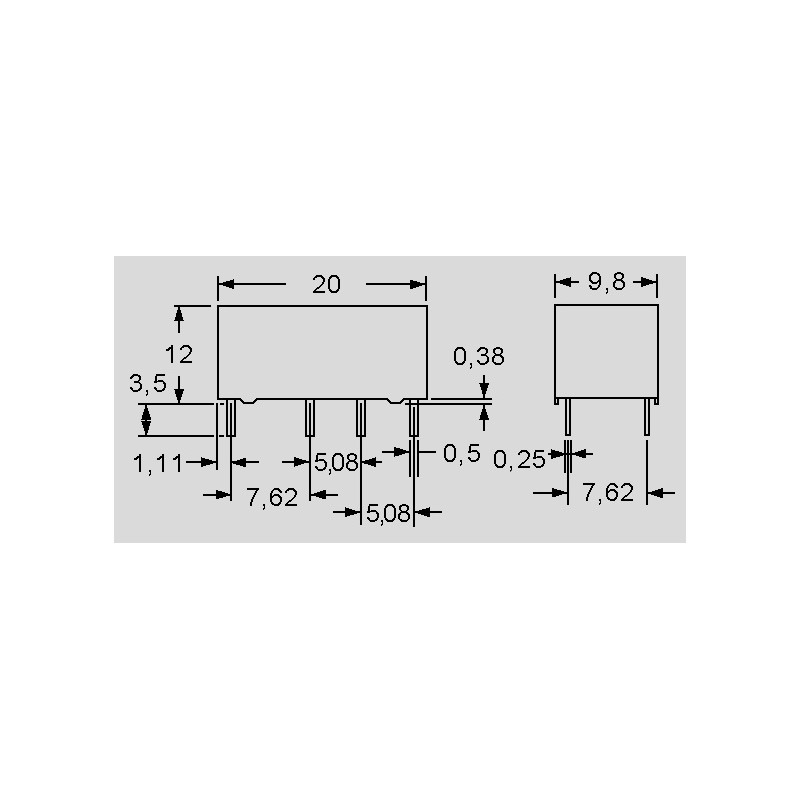

  • relays with a low profile (20x9,8x12mm) and gold-plated contacts

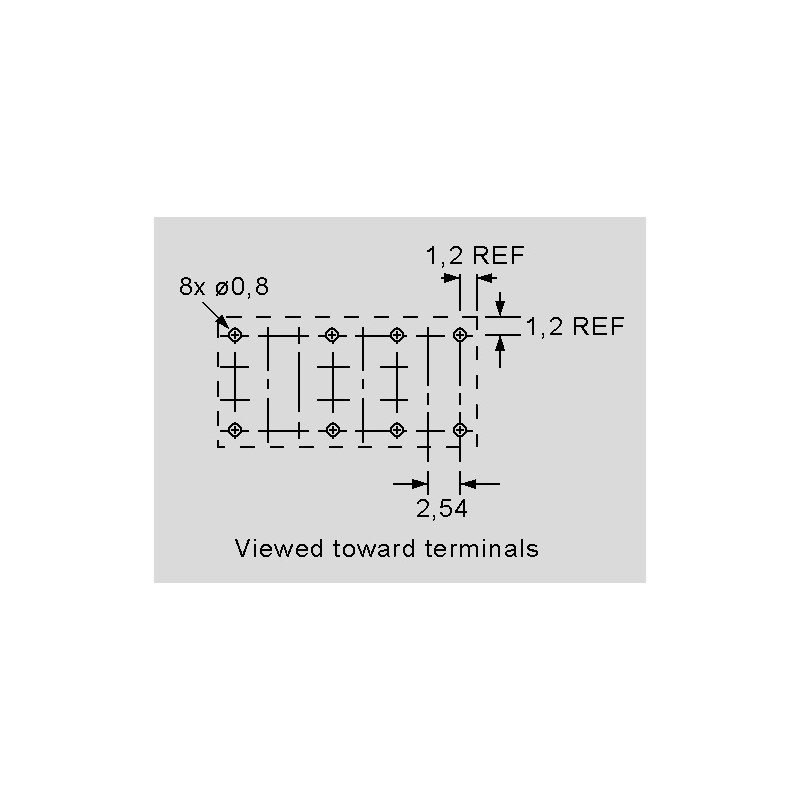

  • suitable for standard 16 pin IC sockets
  • comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric

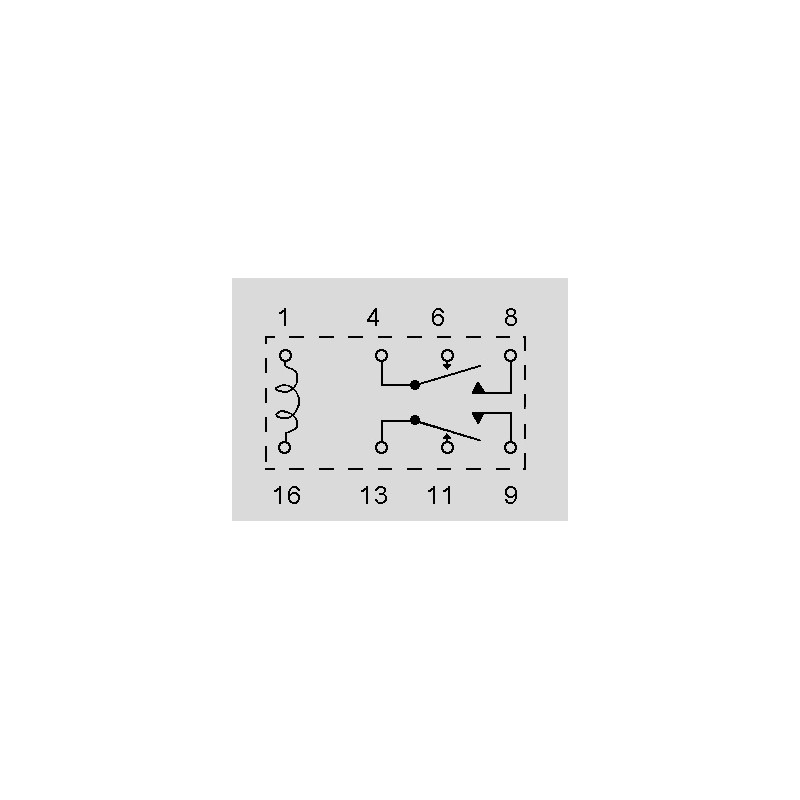

  • with 2 changeover contacts, a sensitive coil and a service life of up to 108 operations
  • suitable for automatic wave soldering due to an epoxy sealing
  • contact material: AgPd
  • switching current: 2A
AZ822-2C-12DSE

AZ822-2C-12DSE

106888 AZ822-2C-12DSE AZ822-2C-12DSE Zettler PCB relay series AZ822. relays with a low profile (20x9,8x12mm) and gold-plated contacts suitable for standard 16 pin IC sockets  comply with FCC Part 68.302 1500V lightning surge and FCC Part 68.304 1000V dielectric with 2 changeover contacts, a sensitive coil and a service life of up to 108 operations suitable for automatic wave soldering due to an epoxy sealing contact material: AgPd switching current: 2A

Specifications

manufacturer
Manufacturer's name AZ822-2C-12DSE
Nominal voltage [V DC] 12
Coil resistance [Ω] 960
Min. operating voltage [V DC] 8,4
Max. operating voltage [V DC] 30
Nominal capacity [mW] 150
Data Sheet

Unit price

1,12 €

Stock: 1190
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
