AZ8-1CH-24DSEA

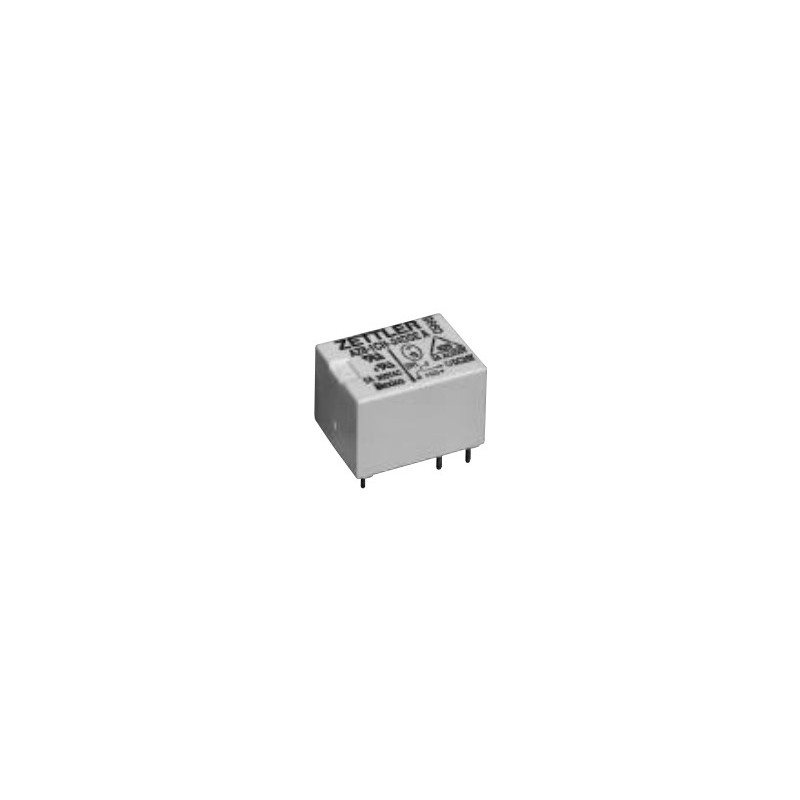

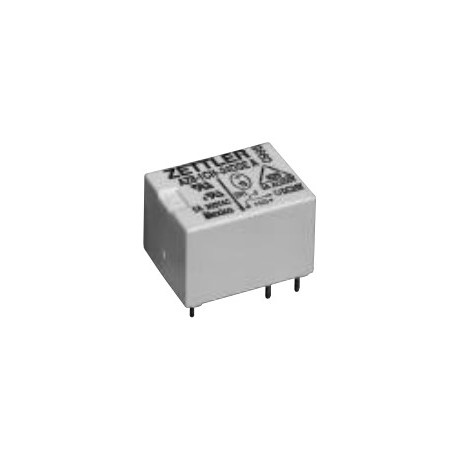

Zettler PCB relay series AZ8

  • PCB relays in a dust-proof housing (21,6x16,5x15mm)
  • with a low response power (approx. 0,2W), a high switching power (1500VA) and 1 changeover contact (SPDT)
  • proof tracking index PTI/CTI 250
  • dielectric strength of 2000Vrms between contact and coil
  • contact material: AgNi
  • switching current: 6A

AZ8-1CH-24DSEA

156131 AZ8-1CH-24DSEA AZ8-1CH-24DSEA Zettler PCB relay series AZ8. PCB relays in a dust-proof housing (21,6x16,5x15mm) with a low response power (approx. 0,2W), a high switching power (1500VA) and 1 changeover contact (SPDT) proof tracking index PTI/CTI 250 dielectric strength of 2000Vrms between contact and coil contact material: AgNi switching current: 6A

Specifications

manufacturer
Manufacturer's name AZ8-1CH-24DSEA
Min. operating voltage [V] 15,6
Coil resistance [Ω] 1780
Max. operating voltage [V] 47
Switching current [A] 6
Nominal capacity [mW] 320
Data Sheet

Unit price

1,43 €

Stock: 0
Further delivery:
CW 14/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
