AZ8-1CH-12DA

Zettler PCB relay series AZ8

  • PCB relays in a dust-proof housing (21,6x16,5x15mm)
  • with a low response power (approx. 0,2W), a high switching power (1500VA) and 1 changeover contact (SPDT)
  • proof tracking index PTI/CTI 250
  • dielectric strength of 2000Vrms between contact and coil
  • contact material: AgNi
  • switching current: 6A

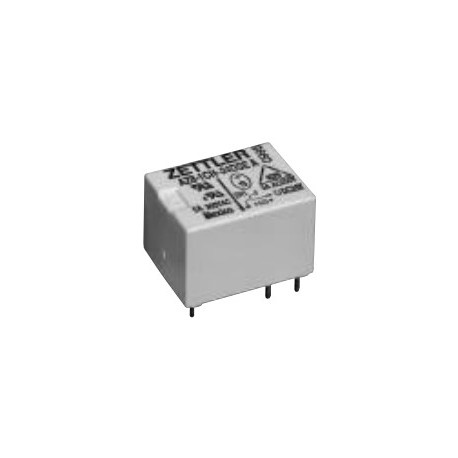

AZ8-1CH-12DA, Zettler PCB relays, 6A, 1 changeover contact, AZ8 series

AZ8-1CH-12DA

156128 AZ8-1CH-12DA AZ8-1CH-12DA Zettler PCB relay series AZ8. PCB relays in a dust-proof housing (21,6x16,5x15mm) with a low response power (approx. 0,2W), a high switching power (1500VA) and 1 changeover contact (SPDT) proof tracking index PTI/CTI 250 dielectric strength of 2000Vrms between contact and coil contact material: AgNi switching current: 6A

Specifications

manufacturer
Manufacturer's name AZ8-1CH-12DA
Min. operating voltage [V] 7,8
Coil resistance [Ω] 320
Max. operating voltage [V] 20,2
Switching current [A] 6
Nominal capacity [mW] 450
Data Sheet

Unit price

1,24 €

Stock: 0
Further delivery:
CW 05/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
