AZ764-1A-24D

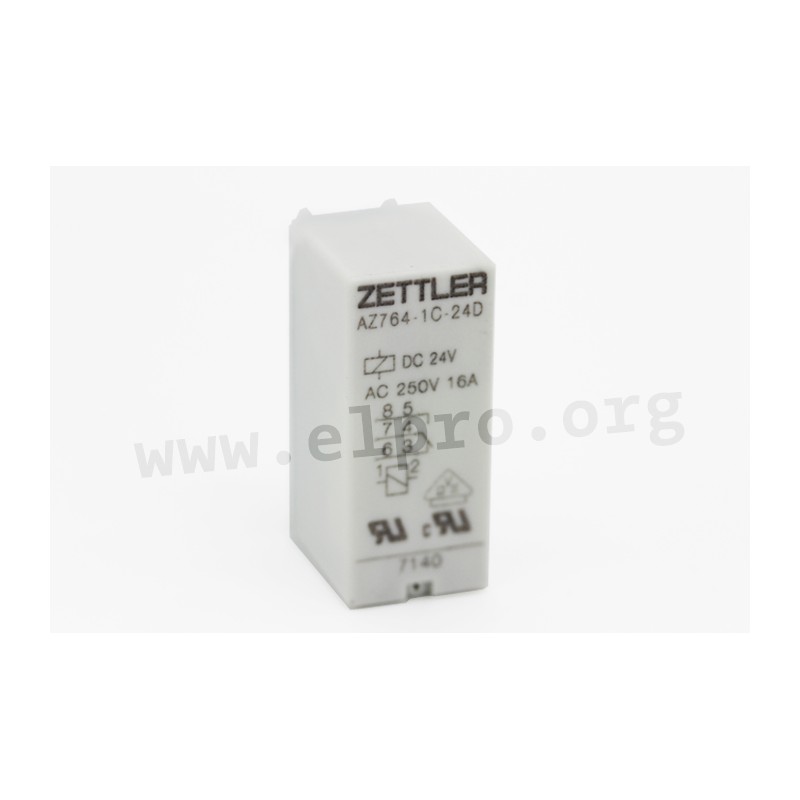

Zettler PCB relay series AZ764

  • power relays in a flat case (29x12,7x15,7mm)
  • with a reinforced insulation and 1 changeover (AZ764-1C_) or 1 normally open contact (AZ764-1A_)
  • comply with IEC60730-1 and IEC60335-1
  • proof tracking index PTI/CTI 250
  • dielectric strength of 5000Vrms between contacts and coil
  • high temperature (AZ764H_) and sealed types (AZ764_DE) available
  • switching current: 16A
AZ764-1A-24D, Zettler PCB relays, 16A, 1 changeover or 1 normally open contact, AZ764 series

AZ764-1A-24D

156157 AZ764-1A-24D AZ764-1A-24D Zettler PCB relay series AZ764. power relays in a flat case (29x12,7x15,7mm) with a reinforced insulation and 1 changeover (AZ764-1C_) or 1 normally open contact (AZ764-1A_) comply with IEC60730-1 and IEC60335-1 proof tracking index PTI/CTI 250 dielectric strength of 5000Vrms between contacts and coil high temperature (AZ764H_) and sealed types (AZ764_DE) available switching current: 16A

Specifications

manufacturer
Manufacturer's name AZ764-1A-24D
Min. operating voltage [V] 16,8
Coil resistance [Ω] 1440
Max. operating voltage [V] 61,2
Switching current [A] 16
Nominal capacity [mW] 400
Data Sheet

Unit price

1,62 €

Stock: 966
Further delivery:
CW 12/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
