AZ762-1CE-12DEF

Zettler PCB relay series AZ762

  • subminiature power relays in a 29x12,7x15,7mm case
  • with a reinforced insulation and a dielectric strength of 5000Vrms between contact and coil
  • 1 changeover contact
  • comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1)
  • sealed version with insulation class F
  • contact material: AgSnO2
  • switching current: 16A

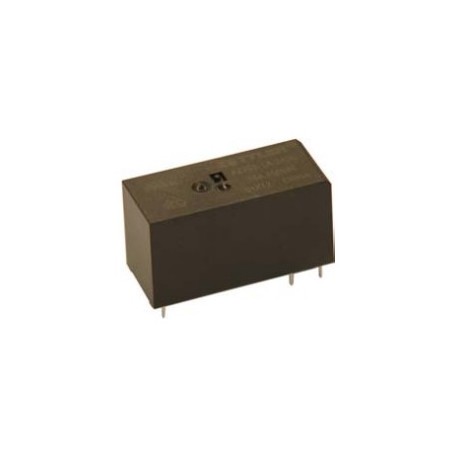

AZ762-1CE-12DEF, Zettler PCB relays, 16A, 1 changeover or 1 normally open contact, AZ762 series

AZ762-1CE-12DEF

156153 AZ762-1CE-12DEF AZ762-1CE-12DEF Zettler PCB relay series AZ762. subminiature power relays in a 29x12,7x15,7mm case with a reinforced insulation and a dielectric strength of 5000Vrms between contact and coil 1 changeover contact comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1) sealed version with insulation class F contact material: AgSnO2 switching current: 16A

Specifications

manufacturer
Manufacturer's name AZ762-1CE-12DEF
Min. operating voltage [V] 8,4
Coil resistance [Ω] 360
Max. operating voltage [V] 24,7
Switching current [A] 16
Nominal capacity [mW] 250
Data Sheet

Unit price

1,47 €

Stock: 0
Further delivery:
CW 14/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
