> Passive elements>Relays>Electromechanical relays>Zettler PCB relays, 16A, 1 changeover or 1 normally open contact, AZ762 series>AZ762-1AE-24DIF

Manufacturers

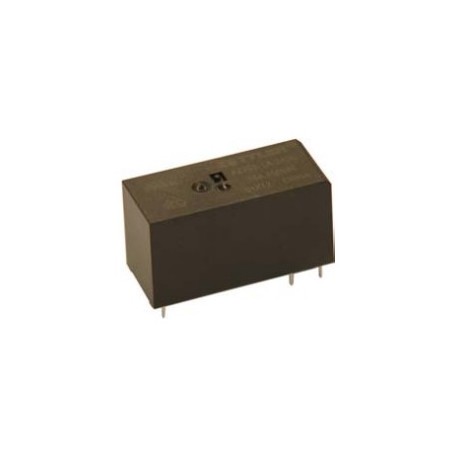

AZ762-1AE-24DIF

Zettler PCB relay series AZ762

  • subminiature power relays in a 29x12,7x15,7mm case
  • with a reinforced insulation and a dielectric strength of 5000Vrms between contact and coil
  • 1 normally open contact
  • comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1)
  • high inrush version 80A
  • contact material: AgSnO2
  • switching current: 16A
AZ762-1AE-24DIF, Zettler PCB relays, 16A, 1 changeover or 1 normally open contact, AZ762 series

AZ762-1AE-24DIF

156150 AZ762-1AE-24DIF AZ762-1AE-24DIF Zettler PCB relay series AZ762. subminiature power relays in a 29x12,7x15,7mm case with a reinforced insulation and a dielectric strength of 5000Vrms between contact and coil 1 normally open contact comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1) high inrush version 80A contact material: AgSnO2 switching current: 16A

Specifications

manufacturer
Manufacturer's name AZ762-1AE-24DIF
Min. operating voltage [V] 16,8
Coil resistance [Ω] 1440
Max. operating voltage [V] 49,4
Switching current [A] 16
Nominal capacity [mW] 250
Data Sheet

Unit price

1,40 €

Stock: 0
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
