AZ742-2C-12DE

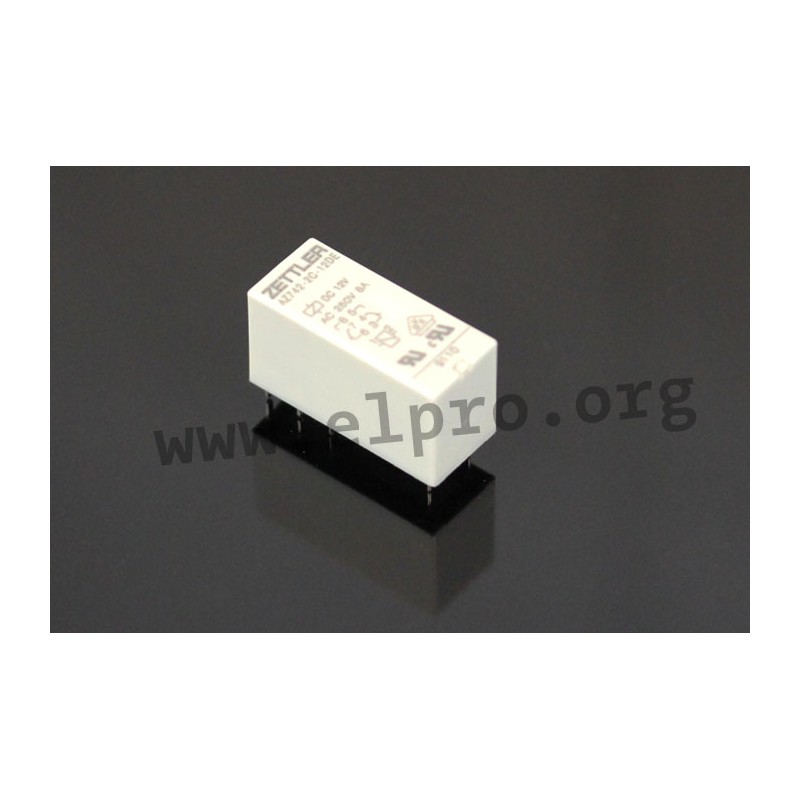

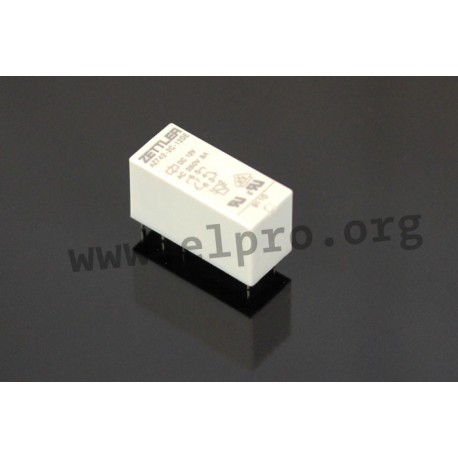

Zettler PCB relay series AZ742

  • miniature power relays with 2 changeover contacts
  • sealed type
  • dielectric strength of 5000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • comly with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1)
  • switching current: 8A

AZ742-2C-12DE

106935 AZ742-2C-12DE AZ742-2C-12DE Zettler PCB relay series AZ742. miniature power relays with 2 changeover contacts sealed type dielectric strength of 5000Vrms between contact and coil proof tracking index PTI/CTI 250 comly with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1) switching current: 8A

Specifications

manufacturer
Manufacturer's name AZ742-2C-12DE
Nominal voltage [V DC] 12
Coil resistance [Ω] 360
Min. operating voltage [V DC] 8,4
Max. operating voltage [V DC] 30,6
Data Sheet

Unit price

1,82 €

Stock: 860
Further delivery:
CW 11/2025

Minimum order quantity 10 units or
multiples of 10.
