AZ6991-1CE-12DEA

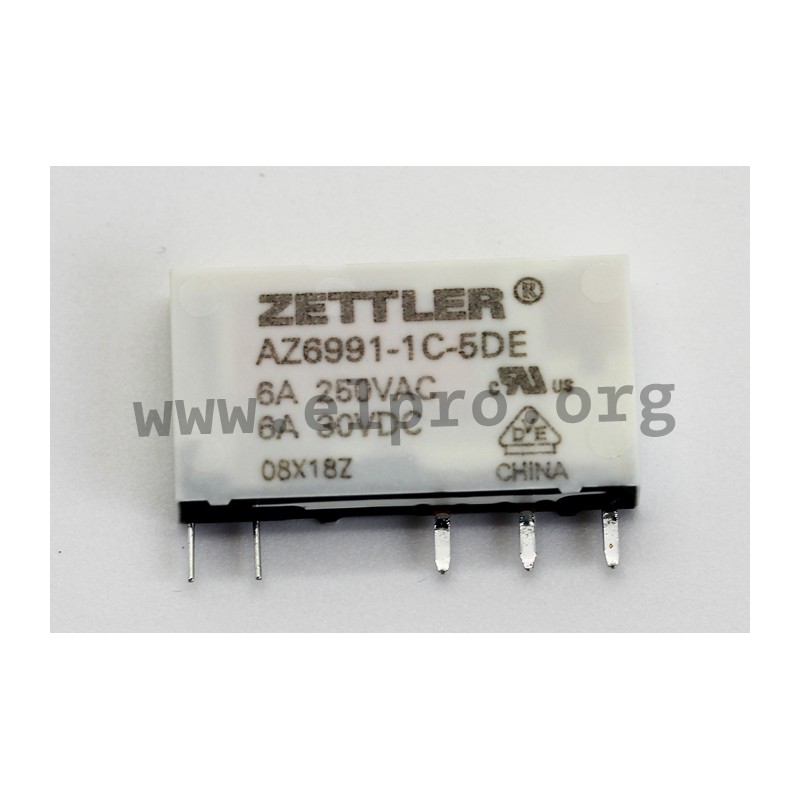

Zettler PCB relay series AZ6991

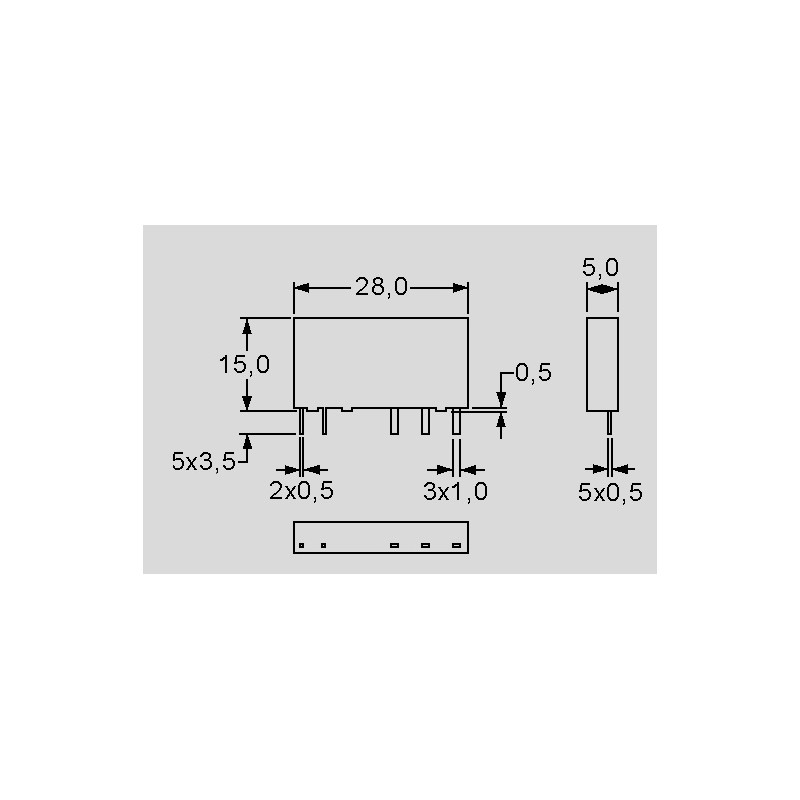

  • sensitive subminiature relays in an extremely slim design (5mm)
  • 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_)
  • dielectric strength of 4000Vrms between contacts and coil
  • with a reinforced insulation
  • switching current: 8A

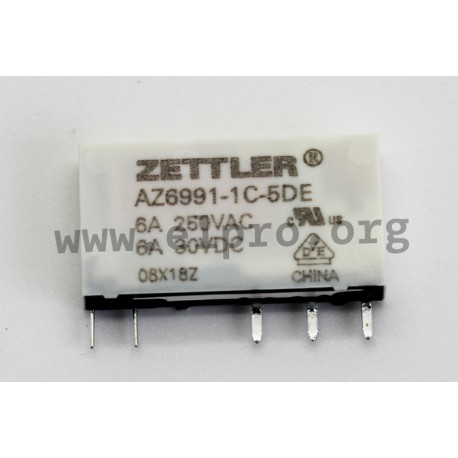

Zettler AZ6991 series

AZ6991-1CE-12DEA

114247 AZ6991-1CE-12DEA AZ6991-1CE-12DEA Zettler PCB relay series AZ6991. sensitive subminiature relays in an extremely slim design (5mm) 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_) dielectric strength of 4000Vrms between contacts and coil with a reinforced insulation switching current: 8A

Specifications

manufacturer
Manufacturer's name AZ6991-1CE-12DEA
Coil resistance [Ω] 3390
Min. operating voltage [V DC] 18
Max. operating voltage [V DC] 36
Nominal capacity [mW] 170
Data Sheet

Unit price

1,89 €

Stock: 0
Next incoming goods:
CW 06/2025
2000 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
