AZ6991-1C-5DE

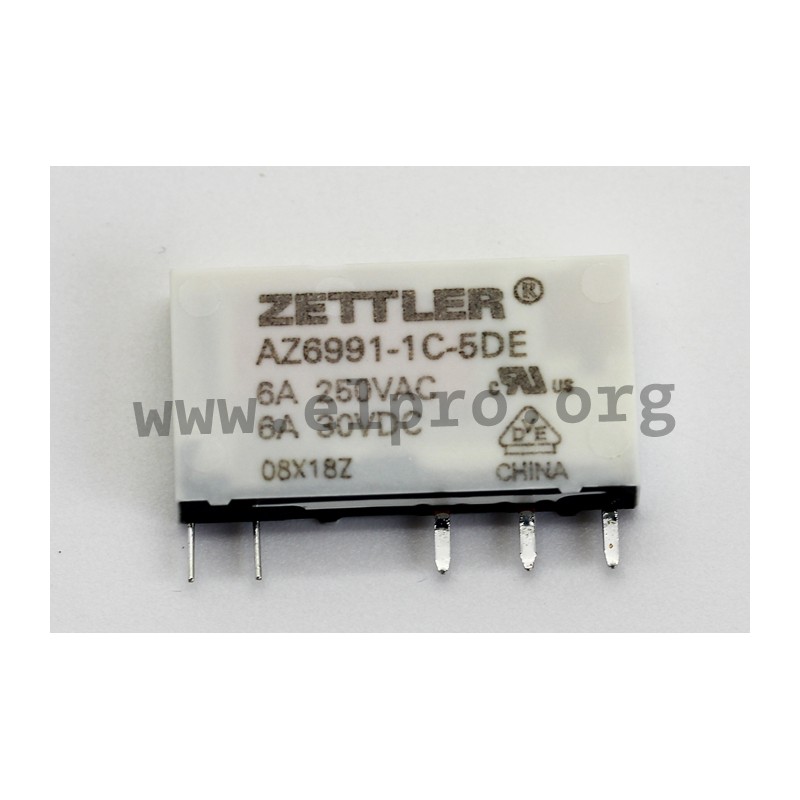

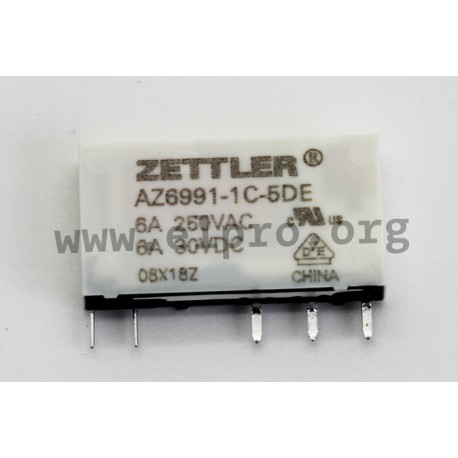

Zettler PCB relay series AZ6991

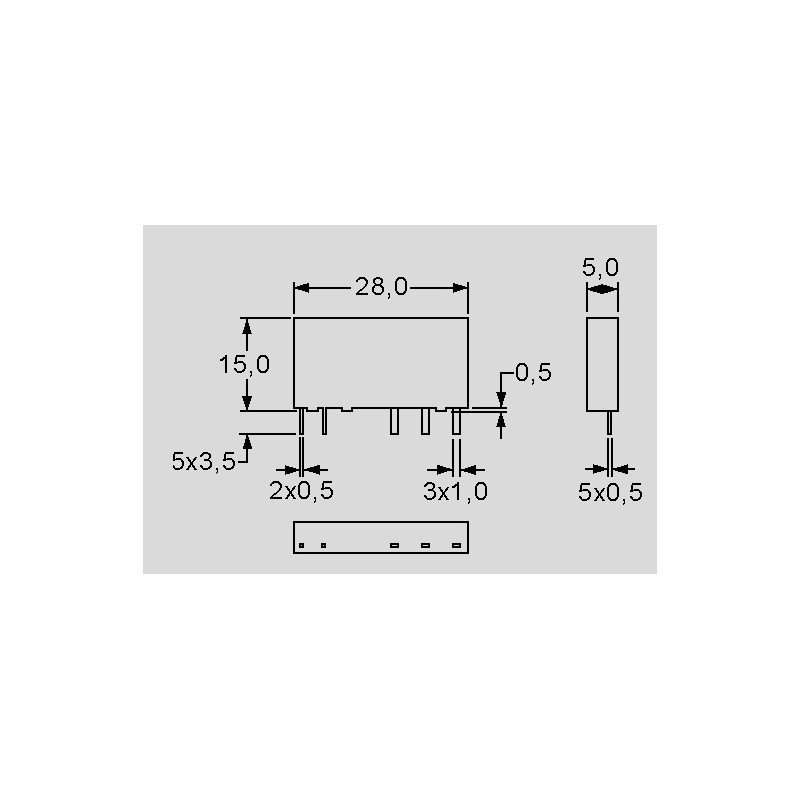

  • sensitive subminiature relays in an extremely slim design (5mm)

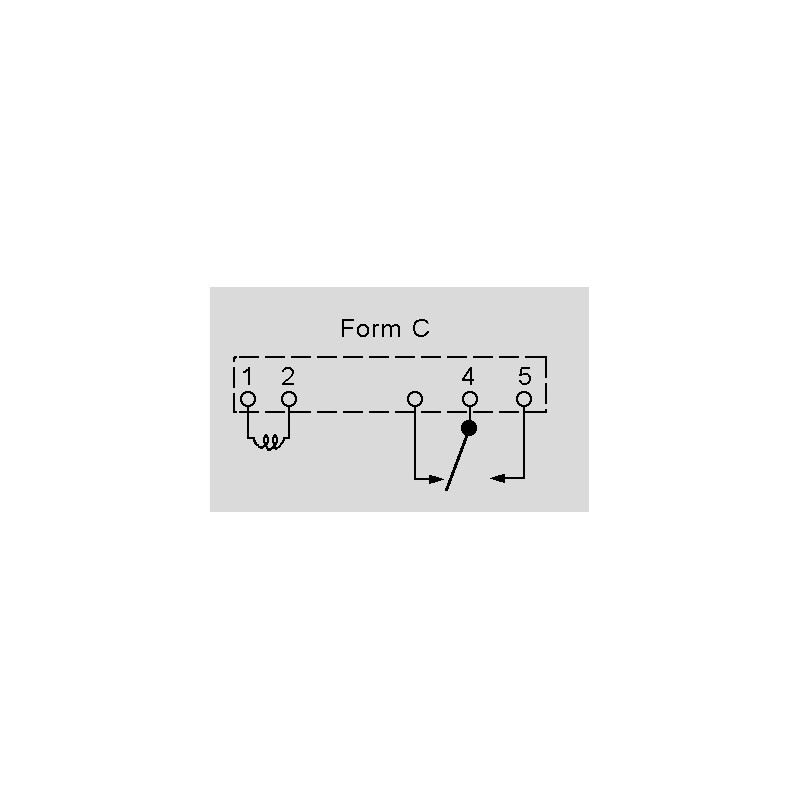

  • 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_)
  • dielectric strength of 4000Vrms between contacts and coil
  • with a reinforced insulation
  • switching current: 8A
AZ6991-1C-5DE

AZ6991-1C-5DE

106917 AZ6991-1C-5DE AZ6991-1C-5DE Zettler PCB relay series AZ6991. sensitive subminiature relays in an extremely slim design (5mm) 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_) dielectric strength of 4000Vrms between contacts and coil with a reinforced insulation switching current: 8A

Specifications

manufacturer
Manufacturer's name AZ6991-1C-5DE
Nominal voltage [V DC] 5
Coil resistance [Ω] 147
Max. operating voltage [V DC] 11,5
Max. zener current [A] 3,75
Nominal capacity [mW] 170
Data Sheet

Unit price

1,40 €

Stock: 2520
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
