AZ6991-1A-12DE

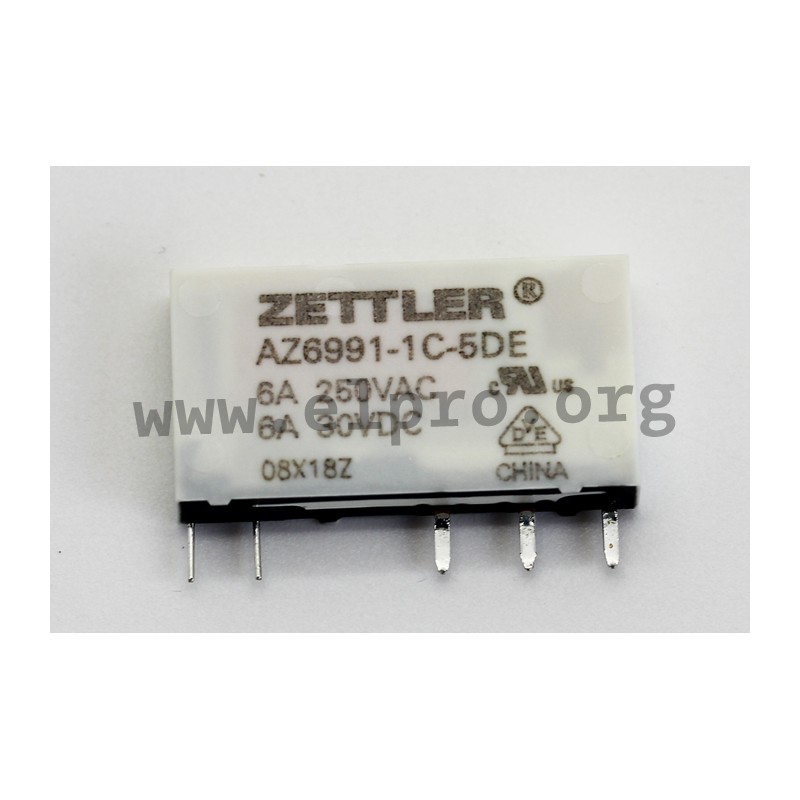

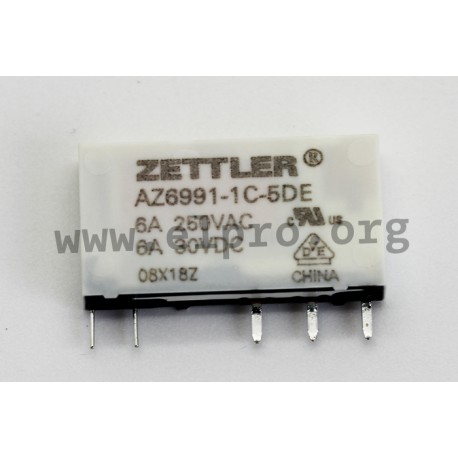

Zettler PCB relay series AZ6991

  • sensitive subminiature relays in an extremely slim design (5mm)

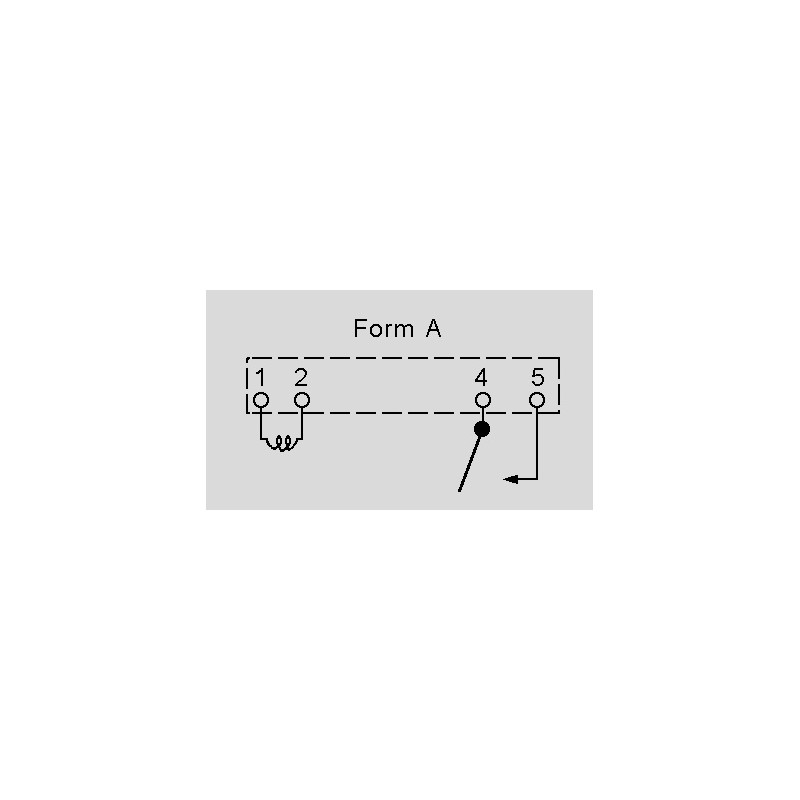

  • 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_)
  • dielectric strength of 4000Vrms between contacts and coil
  • with a reinforced insulation
  • switching current: 8A
Zettler AZ6991 series

AZ6991-1A-12DE

106915 AZ6991-1A-12DE AZ6991-1A-12DE Zettler PCB relay series AZ6991. sensitive subminiature relays in an extremely slim design (5mm) 1 changeover contact SPDT (AZ6991-1C_) or 1 normally open contact SPST-NO (AZ6991-1A_) dielectric strength of 4000Vrms between contacts and coil with a reinforced insulation switching current: 8A

Specifications

manufacturer
Manufacturer's name AZ6991-1A-12DE
Nominal voltage [V DC] 12
Coil resistance [Ω] 848
Min. operating voltage [V DC] 9
Max. operating voltage [V DC] 27,6
Nominal capacity [mW] 170
Data Sheet

Unit price

0,588 €

Stock: 2515
Further delivery:
CW 14/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
