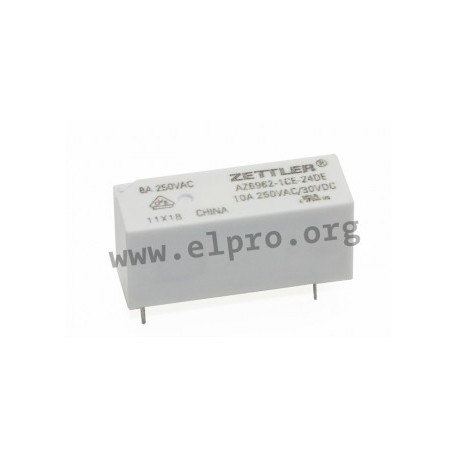

AZ6962-1CE-24DE

Zettler PCB relay series AZ6962

  • subminiature relays in a sealed case (28,5x10,1x12,5mm)
  • with a high sensivity (120mW pickup), 1 normally open (AZ6962-1A_) or 1 changeover contact (AZ6962-1C_) and a reinforced insulation
  • comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1)
  • dielectric strength of 5000Vrms between contact and coil
  • proof tracking index PTI/CTI 250
  • contact material: AgSnO2
  • switching capacity: 2500VA / 300W
  • switching current: 10A
AZ6962-1CE-24DE, Zettler PCB relays, 10A, 1 changeover or 1 normally open contact, AZ6962 series

AZ6962-1CE-24DE

156135 AZ6962-1CE-24DE AZ6962-1CE-24DE Zettler PCB relay series AZ6962. subminiature relays in a sealed case (28,5x10,1x12,5mm) with a high sensivity (120mW pickup), 1 normally open (AZ6962-1A_) or 1 changeover contact (AZ6962-1C_) and a reinforced insulation comply with EN60730-1 (VDE 0631, part 1) and EN60335-1 (VDE 0700, part 1) dielectric strength of 5000Vrms between contact and coil proof tracking index PTI/CTI 250 contact material: AgSnO2 switching capacity: 2500VA / 300W switching current: 10A

Specifications

manufacturer
Manufacturer's name AZ6962-1CE-24DE
Min. operating voltage [V] 16,8
Coil resistance [Ω] 2350
Max. operating voltage [V] 53,1
Switching current [A] 10
Nominal capacity [mW] 250
Data Sheet

Unit price

1,50 €

Stock: 935
Further delivery:
CW 14/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
