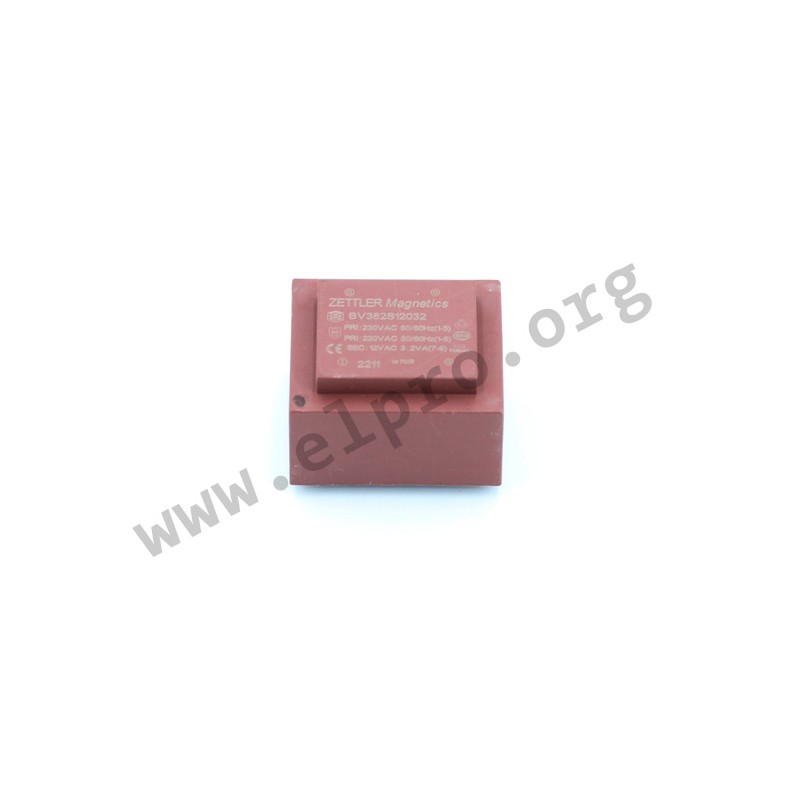

BV382S09032

Zettler PCB transformers

Transformers with 3,2VA and an EI38/13,6 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for operating temperature of up to +70°C. We offer the following types of this Zettler series: BV382S06032, BV382S09032, BV382S12032, BV382S15032, BV382S18032 and BV382S24032.

  • core: EI 38/13,6
  • output: 3,2VA
  • input voltage: 230V AC (50/60Hz)
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

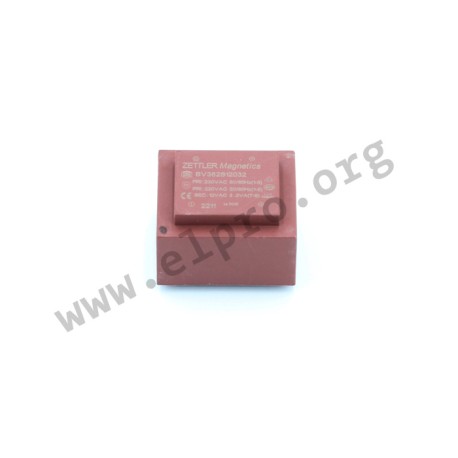

605162, Zettler PCB transformers, 3,2VA, EI 38/13,6

BV382S09032

240234 BV382S09032 BV382S09032 Zettler PCB transformers. Transformers with 3,2VA and an EI38/13,6 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for operating temperature of up to +70°C. We offer the following types of this Zettler series: BV382S06032, BV382S09032, BV382S12032, BV382S15032, BV382S18032 and BV382S24032. core: EI 38/13,6 output: 3,2VA input voltage: 230V AC (50/60Hz) dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV382S09032
Secondary current [mA] 356
Secondary voltage [V] 9
Data Sheet

Unit price

2,49 €

Stock: 120
Further delivery:
CW 21/2025
