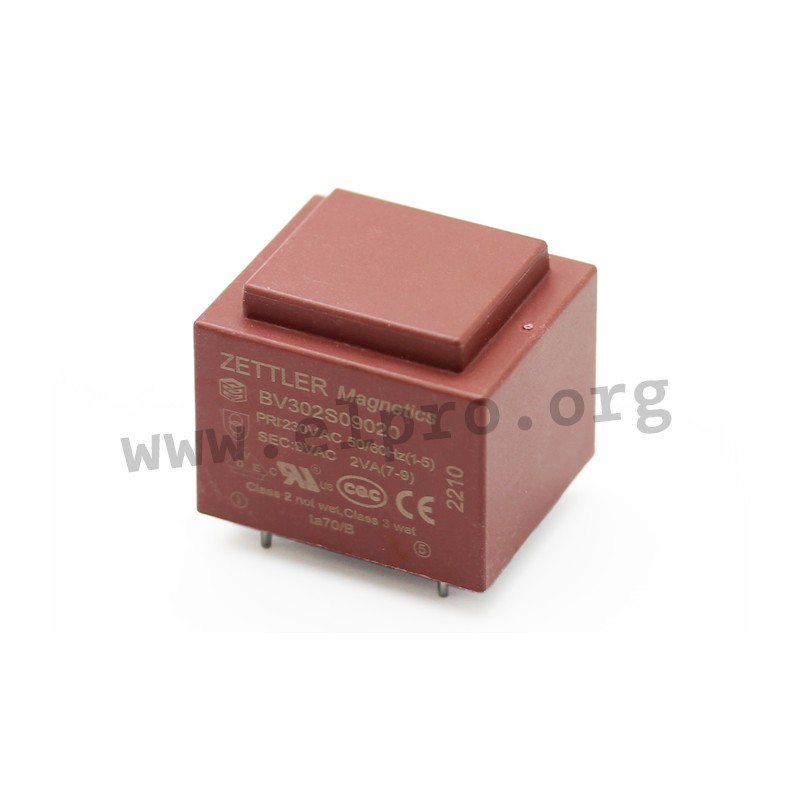

BV302S18020

Zettler PCB transformers

Transformers with 2VA and an EI30 core. These devices are short circuit proof and are suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and have a permissible operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06020, BV302S09020, BV302S12020, BV302S15020, BV302S18020 and BV302S24020.

  • core: EI 30
  • output: 2VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

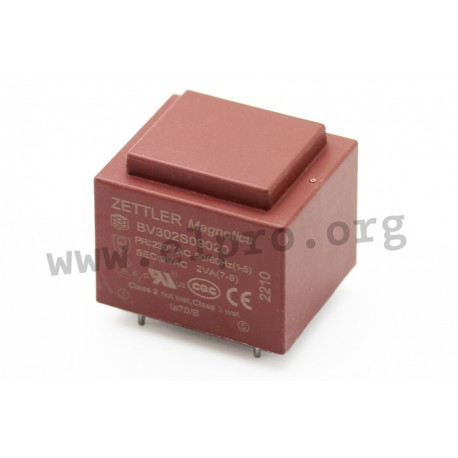

BV302S18020, Zettler PCB transformers, 2VA, EI 30

BV302S18020

237903 BV302S18020 BV302S18020 Zettler PCB transformers . Transformers with 2VA and an EI30 core. These devices are short circuit proof and are suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and have a permissible operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06020, BV302S09020, BV302S12020, BV302S15020, BV302S18020 and BV302S24020. core: EI 30 output: 2VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S18020
Secondary current [mA] 111
Secondary voltage [V] 18
Data Sheet

Unit price

1,47 €

Stock: 123
Further delivery:
CW 18/2025
