> Passive elements>Transformers>PCB transformers>Zettler PCB transformers, 2,8VA, EI 30>BV302S18028

Manufacturers

BV302S18028

Zettler PCB transformers

Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/B as well as EN61558 and EN60950. We offer the following types of this Zettler series: BV302S06028, BV302S09028, BV302S12028, BV302S15028, BV302S18028 and BV302S24028.

  • core: EI 30
  • output: 2,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
  • maximal operating temperature: 40°C

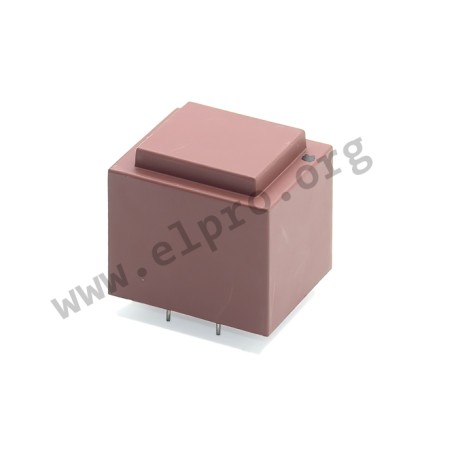

BV302S18028, Zettler PCB transformers, 2,8VA, EI 30

BV302S18028

237915 BV302S18028 BV302S18028 Zettler PCB transformers. Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/B as well as EN61558 and EN60950. We offer the following types of this Zettler series: BV302S06028, BV302S09028, BV302S12028, BV302S15028, BV302S18028 and BV302S24028. core: EI 30 output: 2,8VA input voltage: 230V AC (50/60Hz) temperature class: Ta 40/B dielectric strength: 4,2kV insulation resistance: 100MOhm maximal operating temperature: 40°C

Specifications

manufacturer
Manufacturer's name BV302S18028
Secondary current [mA] 156
Secondary voltage [V] 18
Data Sheet

Unit price

1,60 €

Stock: 32
Further delivery:
CW 13/2025
