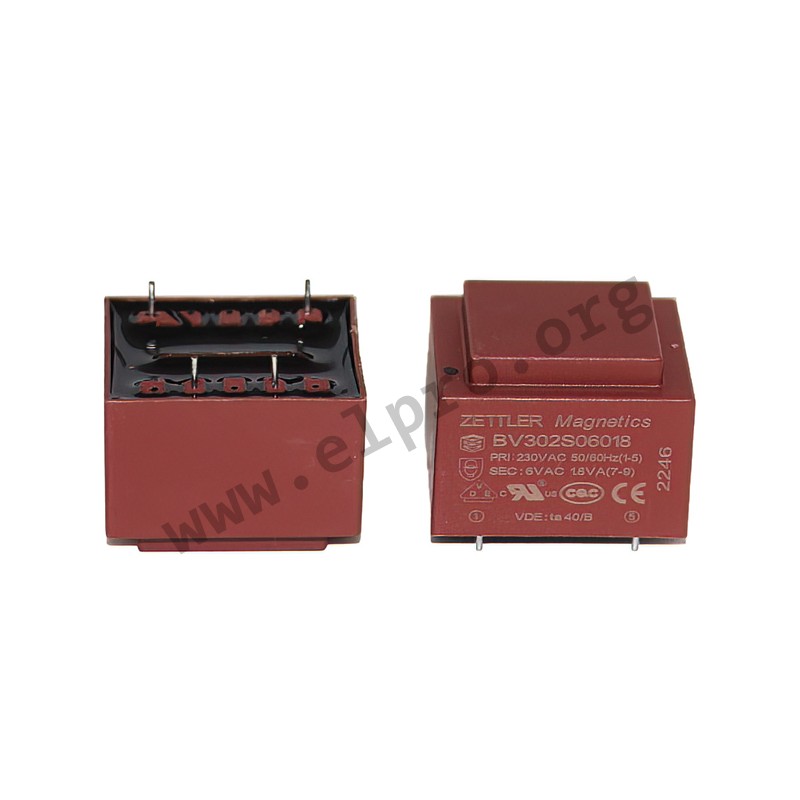

BV302S18018

Zettler PCB transformers

Transformers with 1,8VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 40/B. They are suitable for PCB mounting as well as for an operating temperature of up to +40°C. We offer the following types of this Zettler series: BV302S06018, BV302S09018, BV302S12018, BV302S15018, BV302S18018 and BV302S24018.

  • core: EI 30
  • output: 1,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
BV302S18018, Zettler PCB transformers, 1,8VA, EI 30

BV302S18018

237897 BV302S18018 BV302S18018 Zettler PCB transformers. Transformers with 1,8VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 40/B. They are suitable for PCB mounting as well as for an operating temperature of up to +40°C. We offer the following types of this Zettler series: BV302S06018, BV302S09018, BV302S12018, BV302S15018, BV302S18018 and BV302S24018. core: EI 30 output: 1,8VA input voltage: 230V AC (50/60Hz) temperature class: Ta 40/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S18018
Secondary current [mA] 100
Secondary voltage [V] 18
Data Sheet

Unit price

1,46 €

Stock: 85
Further delivery:
CW 13/2025
