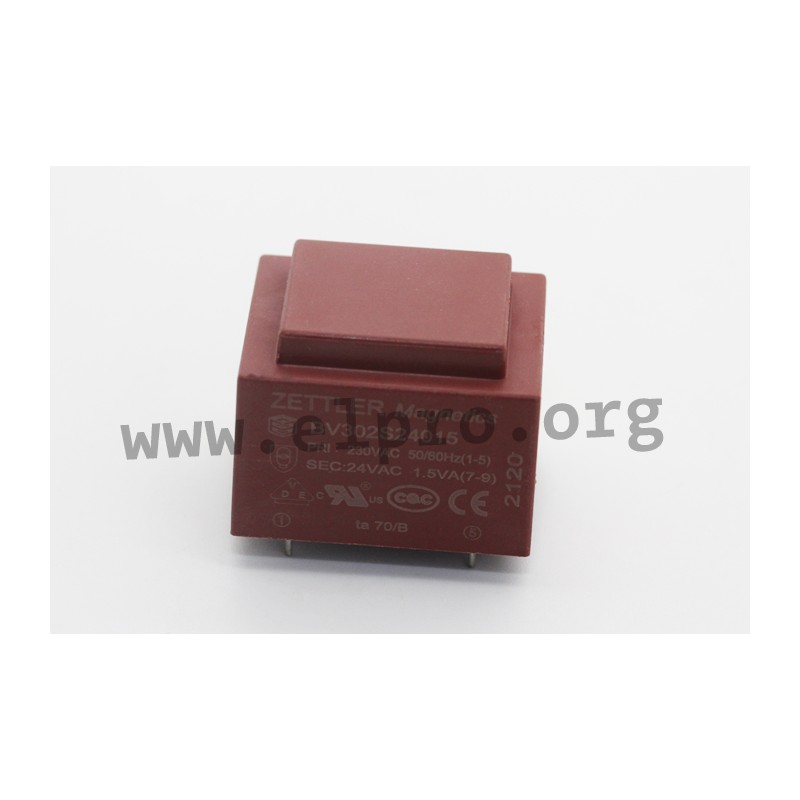

BV302S12015

Zettler PCB transformers

Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06015, BV302S09015, BV302S12015, BV302S15015, BV302S18015 and BV302S24015.

  • core: EI 30
  • output: 1,5VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

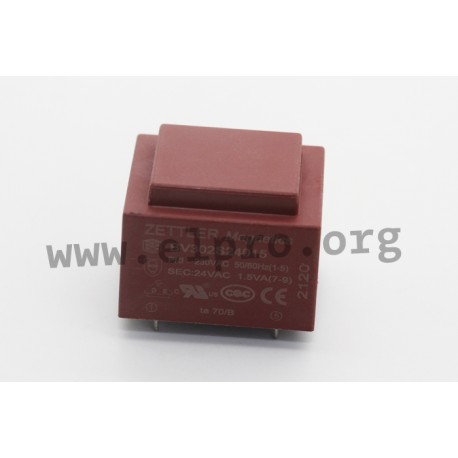

BV302S12015, Zettler PCB transformers, 1,5VA, EI 30

BV302S12015

237889 BV302S12015 BV302S12015 Zettler PCB transformers. Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06015, BV302S09015, BV302S12015, BV302S15015, BV302S18015 and BV302S24015. core: EI 30 output: 1,5VA input voltage: 230V (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S12015
Secondary current [mA] 125
Secondary voltage [V] 12
Data Sheet

Unit price

1,46 €

Stock: 103
Further delivery:
CW 13/2025
