BV302S18006

Zettler PCB transformers

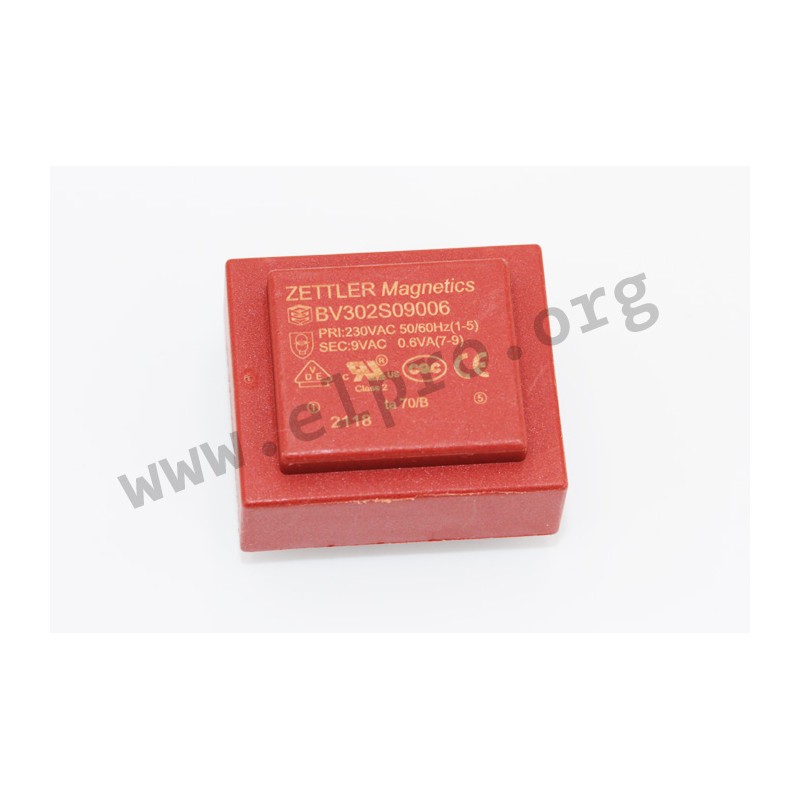

Transformers with an EI30 core and 0,6VA. These devices comply with temperature resistance class Ta 70/B and are short circuit proof. They are suitable for PCB mounting and are rated for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06006, BV302S09006, BV302S12006, BV302S15006, BV302S18006 and BV302S24006.

  • core: EI30
  • output: 0,6VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

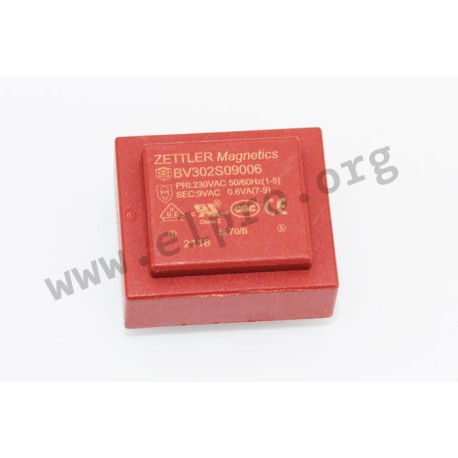

BV302S18006, Zettler PCB transformers, 0,6VA, EI 30

BV302S18006

237879 BV302S18006 BV302S18006 Zettler PCB transformers. Transformers with an EI30 core and 0,6VA. These devices comply with temperature resistance class Ta 70/B and are short circuit proof. They are suitable for PCB mounting and are rated for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06006, BV302S09006, BV302S12006, BV302S15006, BV302S18006 and BV302S24006. core: EI30 output: 0,6VA input voltage: 230V (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S18006
Secondary current [mA] 33
Secondary voltage [V] 18
Data Sheet

Unit price

1,36 €

Stock: 300
Further delivery:
CW 13/2025
