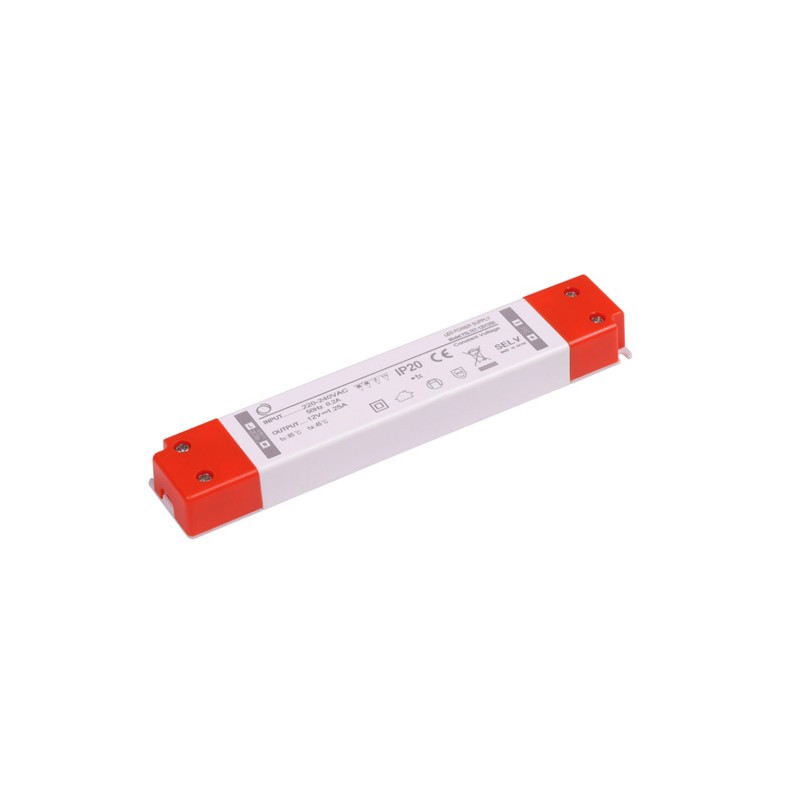

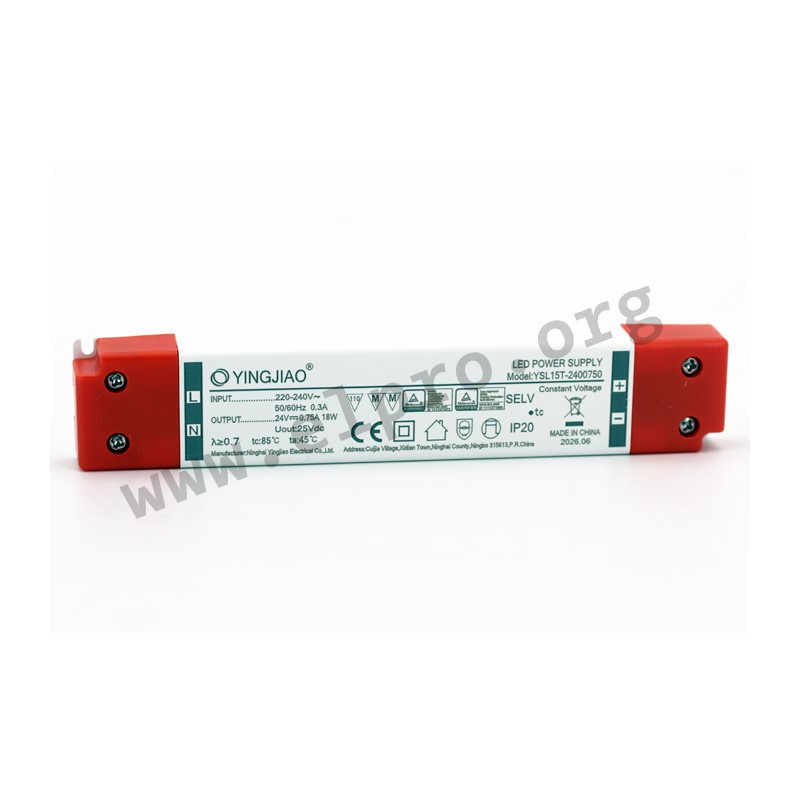

YSL15T-2400750

Yingjiao AC/DC-LED-Netzteile der Serie YSL15T-18W

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 18W and IP20. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YSL15T-1201500 and YSL15T-2400750.

  • input voltage: 220 to 240V AC
  • input frequency: 50/60Hz
  • operating temperature: -20 to +45°C

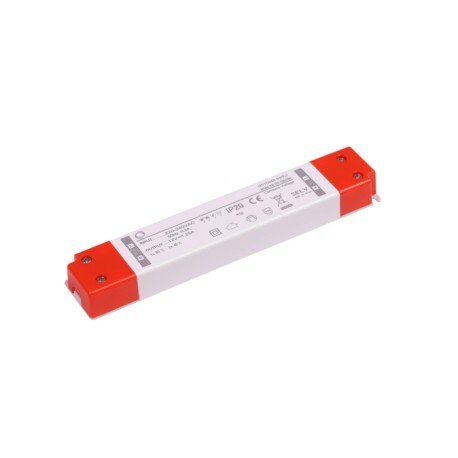

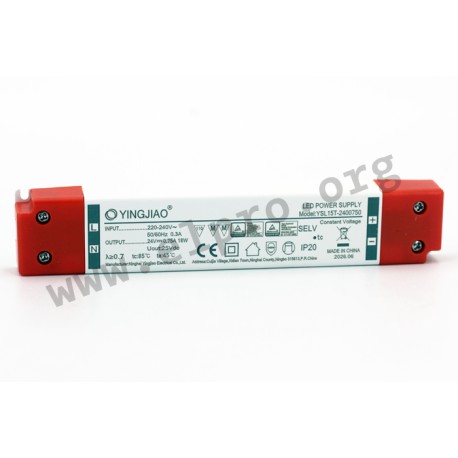

YSL15T-2400750, Yingjiao AC/DC LED power supplies, CV, 18W, IP20, YSL15T-18W series

YSL15T-2400750

250506 YSL15T-2400750 YSL15T-2400750 Yingjiao AC/DC-LED-Netzteile der Serie YSL15T-18W. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 18W and IP20. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YSL15T-1201500 and YSL15T-2400750. input voltage: 220 to 240V AC input frequency: 50/60Hz operating temperature: -20 to +45°C

Specifications

manufacturer
Manufacturer's name YSL15T-2400750
Output voltage [V] 24
Input voltage range [V] 198...264
Efficiency [%] 88
Output current [A] 0,75
Data Sheet

Unit price

4,79 €

Volume discounts

Quantity Unit price
100 + 4,29 €

Stock: 46
Further delivery:
CW 34/2025
