YSL100F-1206250

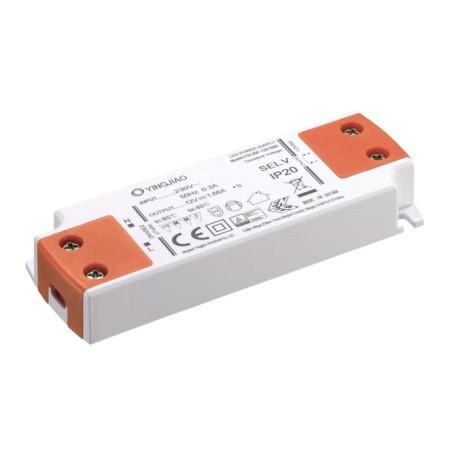

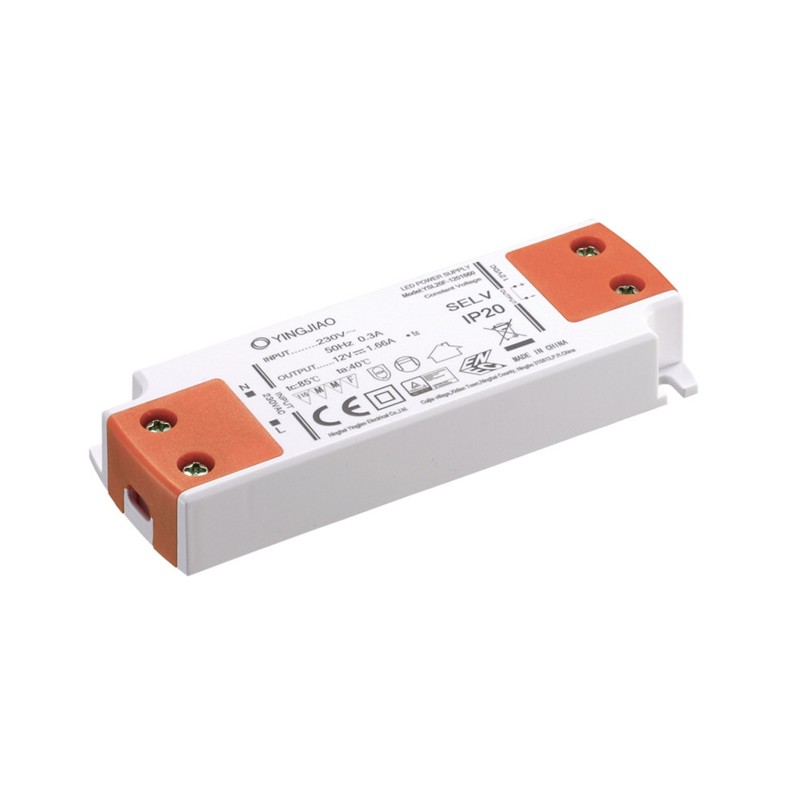

Yingjiao AC/DC LED power supplies series YSL100F-75W

Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 75W and IP20. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YSL100F-1206250 and YSL100F-2403125.

  • input voltage: 220 to 240V AC
  • input frequency: 50/60Hz
  • operating temperature: -20 to +45°C
YSL100F-1206250, Yingjiao AC/DC LED power supplies, CV, 75W, IP20, YSL100F-75W series

YSL100F-1206250

250535 YSL100F-1206250 YSL100F-1206250 Yingjiao AC/DC LED power supplies series YSL100F-75W. Not dimmable AC/DC LED power supplies for CV operating mode, in a enclosed plastic housing, with 75W and IP20. These devices are flicker free and they are protected against over voltage, over load, as well as short circuit. We offer the following types of this Yingjiao series: YSL100F-1206250 and YSL100F-2403125. input voltage: 220 to 240V AC input frequency: 50/60Hz operating temperature: -20 to +45°C

Specifications

manufacturer
Manufacturer's name YSL100F-1206250
Output voltage [V] 12
Input voltage range [V] 198...264
Efficiency [%] 92
Output current [A] 6,25
Data Sheet

Unit price

17,89 €

Volume discounts

Quantity Unit price
100 + 16,79 €

Stock: 96
Further delivery:
CW 32/2025
