YS5M-0501000

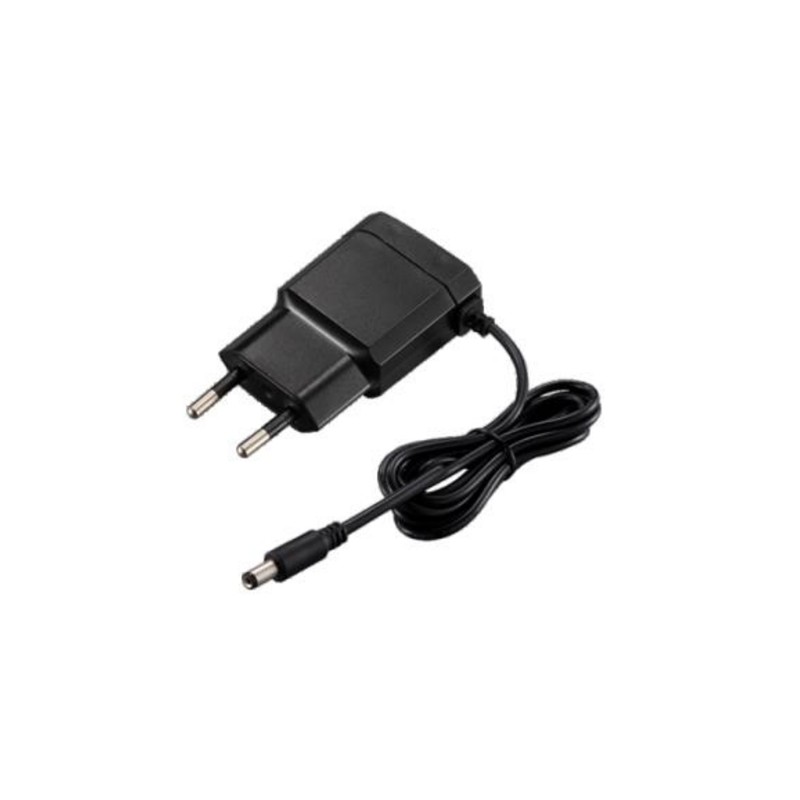

Yingjiao plug-in power supply series YS5M

Plug-in switching power supplies with 5W, a Europlug, a universal input and protection class II. These devices meet energy efficiency Level VI and are protected against overvoltage, short circuit as well as overload. They are inexpensive and comply with EN60601-1 as well as EN55032 class B. We offer the type YS5M-0501000 of this Yingjiao series.

  • single output
  • output: 5W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 65A
  • input current: 0,2A
  • input plug: Euro
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +60°C
  • dimensions: 58x26x35mm
  • weight: 70g

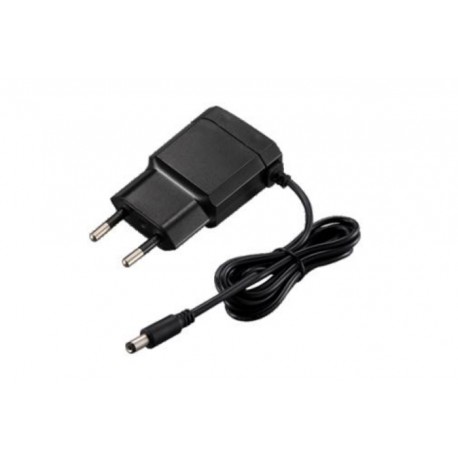

YS5M-0501000, Yingjiao plug-in switching power supplies, 5W, energy efficiency Level VI, YS5M series

YS5M-0501000

242375 YS5M-0501000 YS5M-0501000 Yingjiao plug-in power supply series YS5M. Plug-in switching power supplies with 5W, a Europlug, a universal input and protection class II. These devices meet energy efficiency Level VI and are protected against overvoltage, short circuit as well as overload. They are inexpensive and comply with EN60601-1 as well as EN55032 class B. We offer the type YS5M-0501000 of this Yingjiao series. single output output: 5W input voltage: 90 to 264V AC (50 to 60Hz) maximal input inrush current: 65A input current: 0,2A input plug: Euro output plug: 5,5x2,1mm coaxial connector operating temperature: -20 to +60°C dimensions: 58x26x35mm weight: 70g

Specifications

manufacturer
Manufacturer's name YS5M-0501000
Output voltage [V] 5
Efficiency [%] 75
Output current [A] 1
Output power [W] 5
Ripple [mVp-p] 75
Data Sheet

Unit price

4,69 €

Volume discounts

Quantity Unit price
100 + 4,09 €
50 + 4,29 €

Stock: 424
Next incoming goods:
CW 03/2025
1000 units

Further delivery:
CW 13/2025
