YS18V-0503500

Yingjiao plug-in power supply series YS18V

Plug-in switching power supplies with 17,5 to 24W, a universal input, a Europlug, energy efficiency Level VI and protection class II. These devices have an extremely low leakage current (<0,25mA) and are protected against overload, short circuit as well as overvoltage. They are inexpensive and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS18V-0503500, YS18V-1202000 and YS18V-2401000.

  • single output
  • output: 17,5 to 24W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 65A
  • input plug: Europlug
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +60°C
  • dimensions: 78x36x83mm
  • weight: 130g

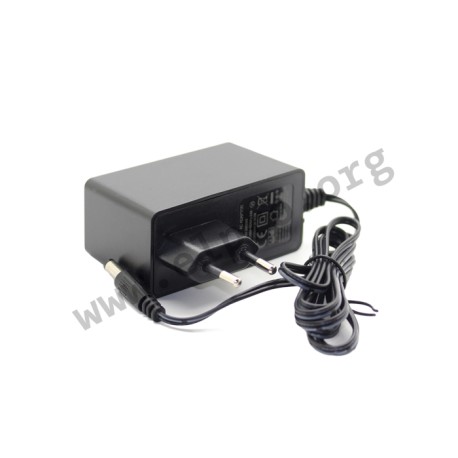

YS18V-0503500, Yingjiao plug-in switching power supplies, 17,5 to 24W, energy efficiency Level VI, YS18V series

YS18V-0503500

242385 YS18V-0503500 YS18V-0503500 Yingjiao plug-in power supply series YS18V. Plug-in switching power supplies with 17,5 to 24W, a universal input, a Europlug, energy efficiency Level VI and protection class II. These devices have an extremely low leakage current (&lt;0,25mA) and are protected against overload, short circuit as well as overvoltage. They are inexpensive and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS18V-0503500, YS18V-1202000 and YS18V-2401000. single output output: 17,5 to 24W input voltage: 90 to 264V AC (50 to 60Hz) maximal input inrush current: 65A input plug: Europlug output plug: 5,5x2,1mm coaxial connector operating temperature: -20 to +60°C dimensions: 78x36x83mm weight: 130g

Specifications

manufacturer
Manufacturer's name YS18V-0503500
Output voltage [V] 5
Efficiency [%] 83
Output current [A] 3,5
Output power [W] 17,5
Ripple [mVp-p] 75
Data Sheet

Unit price

7,09 €

Volume discounts

Quantity Unit price
100 + 6,29 €
50 + 6,59 €

Stock: 896
Further delivery:
CW 17/2025
