YS16V-0503000

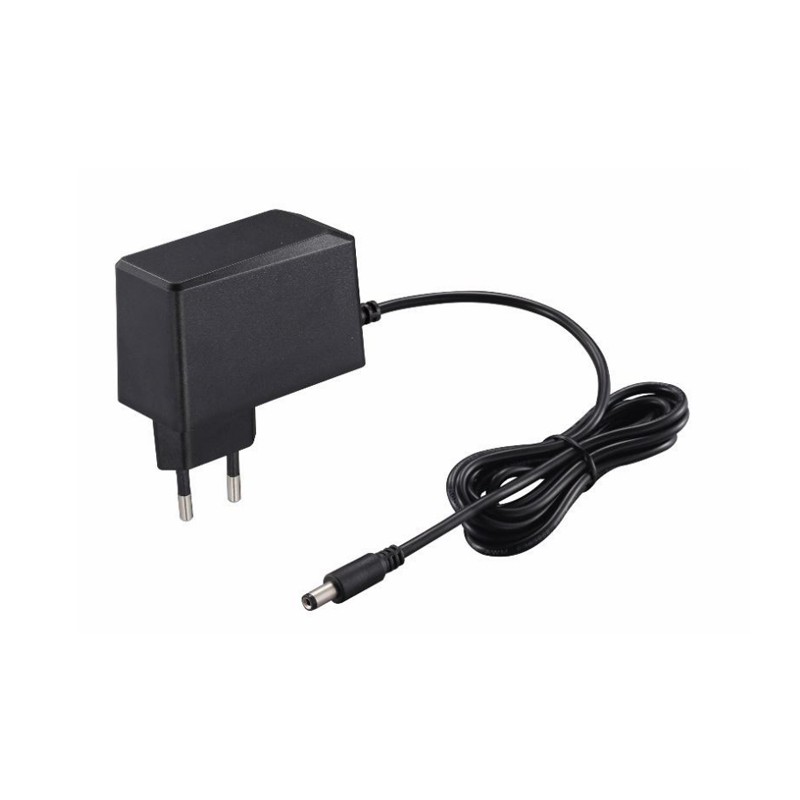

Yingjiao plug-in power supply series YS16V

Plug-in switching power supplies with 15 to 18W, a universal input, protection class II, a Europlug and energy efficiency Level VI. These devices are inexpensive and comply with EN55032 class B as well as EN62368-1. They have a very low leakage current (<0,25mA) as well as partly a USB C connector (YS16V_ USB-C) and are protected against short circuit, overvoltage as well as overload. We offer the following types of this Yingjiao series: YS16V+0503000 USB-C, YS16V-0503000, YS16V-1201500 and YS16V-2400750.

  • single output
  • output: 15 to 18W
  • input voltage: 90 to 264V AC (50 to 60Hz)
  • maximal input inrush current: 50A
  • input current: 0,4A
  • input plug: Euro
  • output plug YS16V_: 5,5x2,1mm coaxial connector
  • output plug YS16V_ USB-C: USB type C
  • operating temperature: -20 to +60°C
  • dimensions: 70x33x80mm
  • weight: 120g

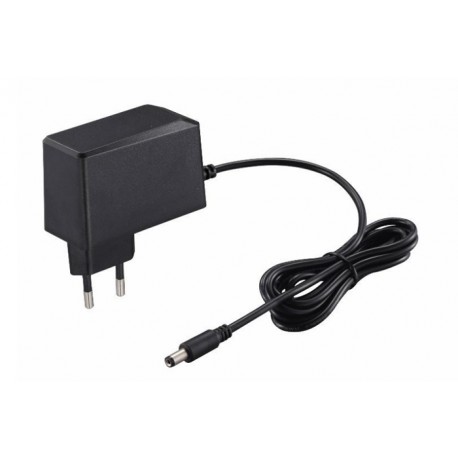

YS16V-0503000, Yingjiao plug-in switching power supplies, 15 to 18W, energy efficiency Level VI, YS16V series

YS16V-0503000

242381 YS16V-0503000 YS16V-0503000 Yingjiao plug-in power supply series YS16V. Plug-in switching power supplies with 15 to 18W, a universal input, protection class II, a Europlug and energy efficiency Level VI. These devices are inexpensive and comply with EN55032 class B as well as EN62368-1. They have a very low leakage current (&lt;0,25mA) as well as partly a USB C connector (YS16V_ USB-C) and are protected against short circuit, overvoltage as well as overload. We offer the following types of this Yingjiao series: YS16V+0503000 USB-C, YS16V-0503000, YS16V-1201500 and YS16V-2400750. single output output: 15 to 18W input voltage: 90 to 264V AC (50 to 60Hz) maximal input inrush current: 50A input current: 0,4A input plug: Euro output plug YS16V_: 5,5x2,1mm coaxial connector output plug YS16V_ USB-C: USB type C  operating temperature: -20 to +60°C dimensions: 70x33x80mm weight: 120g

Specifications

manufacturer
Manufacturer's name YS16V-0503000
Output voltage [V] 5
Efficiency [%] 82
Output current [A] 3
Output power [W] 15
Ripple [mVp-p] 75
Data Sheet

Unit price

6,29 €

Volume discounts

Quantity Unit price
100 + 5,39 €
50 + 5,59 €

Stock: 422
Next incoming goods:
CW 03/2025
1000 units

Further delivery:
CW 17/2025
