YS10-0502100 USB

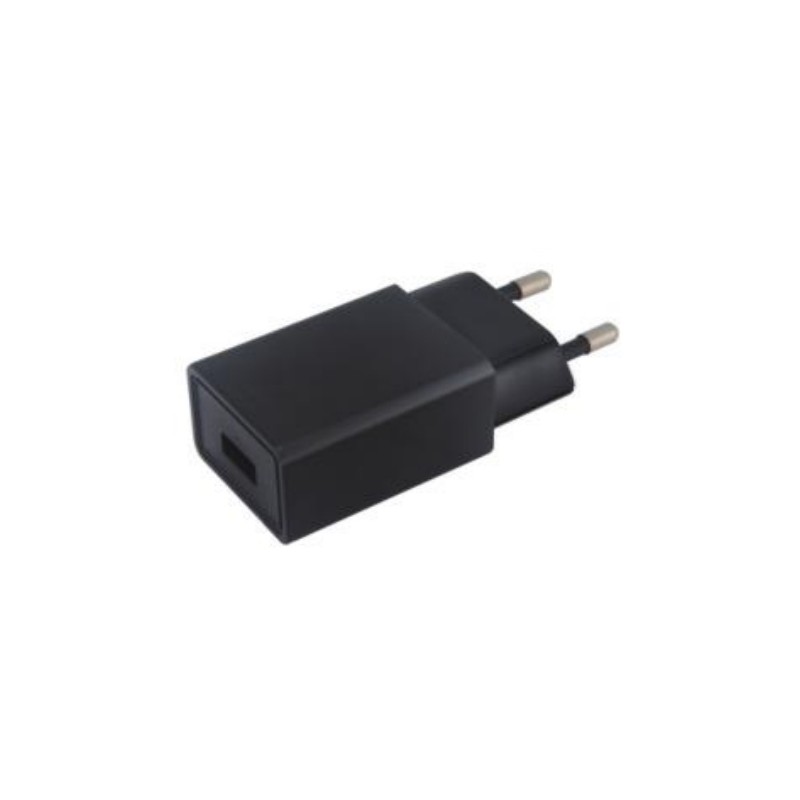

Yingjiao plug-in power supply series YS10

Plug-in switching power supplies with 10,5W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices have a USB connection and are protected against overvoltage, short circuit as well as overload. They feature a very low leakage current (<0,25mA) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS10-0502100 USB.

  • single output
  • output: 10,5W
  • input voltage: 220 to 240V AC (50 to 60Hz)
  • maximal input inrush current: 65A
  • input current: 0,5A
  • input plug: Euro
  • output plug: USB
  • operating temperature: -20 to +60°C
  • dimensions: 59x40x18mm
  • weight: 50g

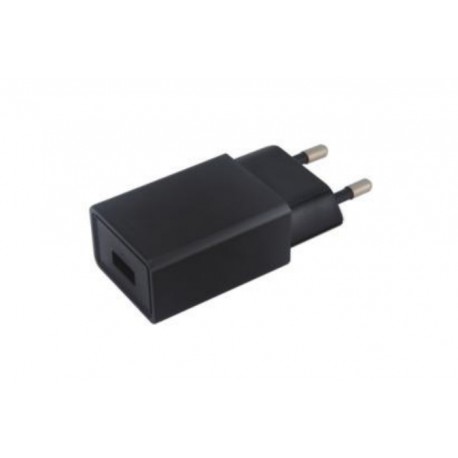

YS10-0502100 USB, Yingjiao USB plug-in power supplies, 6W/10,5W, energy efficiency Level VI, YS10 and YS6MC series

YS10-0502100 USB

242391 YS10-0502100 USB YS10-0502100 USB Yingjiao plug-in power supply series YS10. Plug-in switching power supplies with 10,5W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices have a USB connection and are protected against overvoltage, short circuit as well as overload. They feature a very low leakage current (&lt;0,25mA) and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao&nbsp;series:&nbsp;YS10-0502100 USB. single output output: 10,5W input voltage: 220 to 240V AC (50 to 60Hz) maximal input inrush current: 65A input current: 0,5A input plug: Euro output plug: USB operating temperature: -20 to +60&deg;C dimensions: 59x40x18mm&nbsp; weight: 50g

Specifications

manufacturer
Manufacturer's name YS10-0502100 USB
Output voltage [V] 5
Efficiency [%] 80
Output current [A] 2,1
Output power [W] 10,5
Ripple [mVp-p] 75
Data Sheet

Unit price

4,89 €

Volume discounts

Quantity Unit price
100 + 4,39 €
50 + 4,39 €

Stock: 185
Next incoming goods:
CW 04/2025
1000 units

Further delivery:
CW 13/2025
